185 mm (7-1/4") circular saw equipped with electric blade brake (16 pages)
Summary of Contents for Makita 5007NH
Page 1

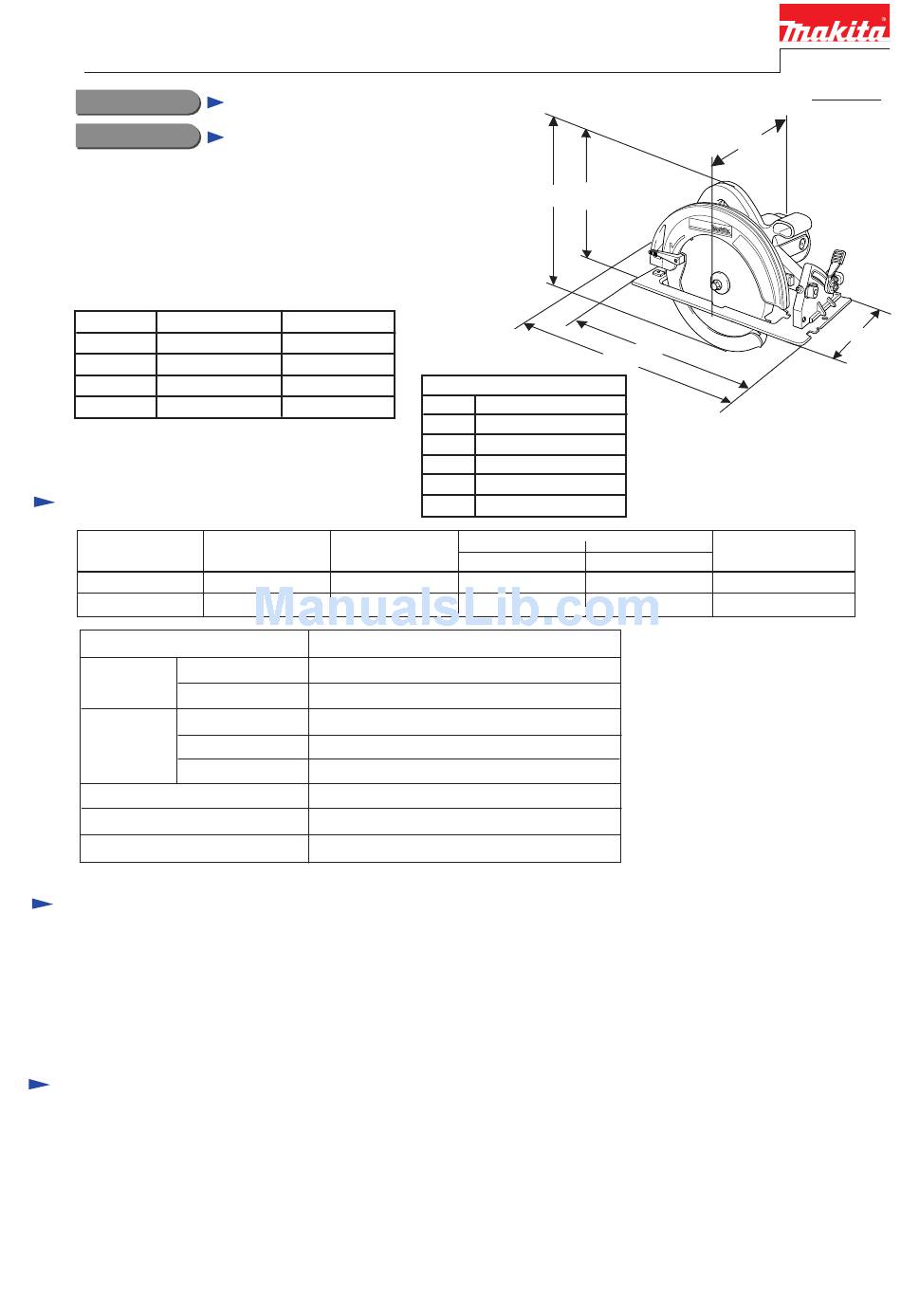

ECHNICAL INFORMATION PRODUCT P 1 / 11 Models No. 5007NH, 5007NL Description 185 mm ( 7-1/4" ) Circular Saw ONCEPTION AND MAIN APPLICATIONS The above models are grade-up version of Model 5007NB, H-1 H-2 equipped with magnesium alloyed blade case and safety cover.
P 2 / 11 eatures and benefits Model 5007NH: Blade right type Model 5007NL: Blade left type Rating Amps under 120V : 15A New durable Switch Motor housing with flat rear makes easy to replace saw blade. Taking over the benefits of Mod.5007NB, for instance...
Page 3
*(B.R ): Blade Right, The saw blade is equipped on right side. *(B.L ): Blade Left, The saw blade is equipped on left side. Competitor A Manufacturer MAKITA Competitor B 5007NH*(B.R ) 5007NB / B-1 / B-1a*(B.R ) Model No. A-1 / A-2 Specification 5007NL*(B.L)
Page 4
P 4 / 11 epair < 2 > Replacement of motor and blade case 1. Detach carbon brushes and remove 2 counter sunk head screws M4x8 which fasten depth guide on base as illustrated in Fig.2. Brush holder cap Carbon brush Depth guide Base.
Page 5
P 5 / 11 epair < 3 > Replacement of motor housing 1. Detach carbon brushes, pan head screw M5 and hex lock nut M5x8 which fasten motor housing on angular guide, as illustrated in Fig. 4. Hex lock nut M5x8 Pan head screw M5 Angular guide...
Page 6
P 6 / 11 epair < 4 > Replacement of depth guide 1. Remove retaining ring 42 and tension spring 4 from blade case. And detach safety cover as illustrated in Fig. 6. Depth guide Tension spring 4 Safety cover Retaining ring 42 Fig.
Page 7
P 7 / 11 epair < 5 > Replacement of angular plate 1. Remove pan head screw M5 and hex lock nut M5x8. And then remove 4 countersunk head screws M5x12 which fasten angular plate to the base. Hex lock nut M5x8 Pan head screw M5 Angular guide...
Page 8
P 8 / 11 epair 4. Remove E-ring 3. Then, screw M5x12 and stopper pin which fasten dial on angular plate, can be removed as illustrated in Fig. 12. Stopper pin Dial for 45° bevel stop Screw M5x12 E-ring 3 Fig.
Page 9
P 9 / 11 epair 2. Remove 4 pan head screws M4x12. Then, bearing box (including O ring 46, helical gear 39, ring 15, retaining ring R-35, ball bearing 6002DDW and spindle) can be separated from blade case. Helical gear 39 Ring 15 Retaining ring R-3 Ball bearing 6002DDW...
Page 10
P 10 / 11 ircuit diagram Model 5007NH : Blade Right type Noise Switch suppressor Power supply cord Field Black Black < Note >Noise suppressor is not used in some countries. Model 5007NL : Blade Left type Switch Noise suppressor...
Page 11
P 11 / 11 iring diagram Model 5007NH : Blade Right type Noise suppressor, (if use) Route lead wire of field between rib and wall. Do not loosen lead wire of field inside motor housing. Press lead wire of field into the bottom of lead holder.
