Makita 5007NB Instruction Manual

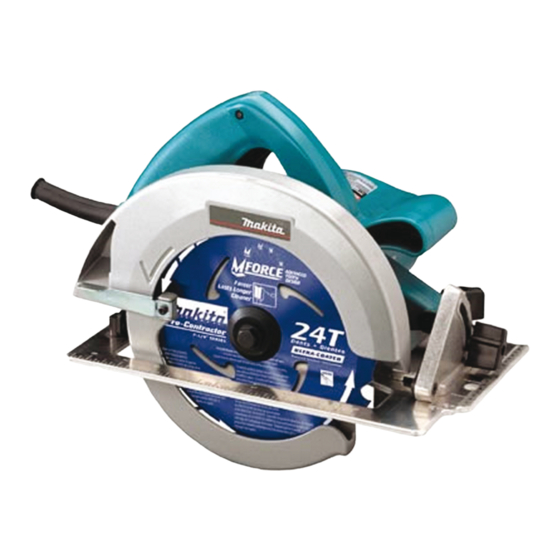

185 mm (7-1/4") circular saw
Hide thumbs Also See for 5007NB:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
A
B
Circular Saw
185 mm (7-1/4")
MODEL 5007NB
INSTRUCTION MANUAL
Specifications
Max. cutting depth
diameter
5,800
2 9 5 mm
(7-1 14")
(1
-314")
Rlmin.
(1 1
-518")
(11 Ibs)
1 8 5 mm
Manufacturer reserves the right t o change specifications of parts and accessories without notice.
* Note: Specifications of parts and accessories may differ from country t o country.

Advertisement

Table of Contents
loading

Related Manuals for Makita 5007NB

Summary of Contents for Makita 5007NB

  • Page 1 Circular Saw 185 mm (7-1/4") MODEL 5007NB INSTRUCTION MANUAL Specifications Max. cutting depth diameter 2 9 5 mm 1 8 5 mm 5,800 (7-1 14") -314") Rlmin. (1 1 -518") (11 Ibs) Manufacturer reserves the right t o change specifications of parts and accessories without notice.

  • Page 2: Important Safety Instructions

    USE RIGHT TOOL. Don't force small tool or attachment t o do the job of a heavy-duty tool. Don't use tool for purpose not intended; for example, don't use circular saw for cutting tree limbs or logs. DRESS PROPERLY. Don't wear loose clothing or jewelry. They can be caught in moving parts.
  • Page 3 REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from AVOID UNINTENTIONAL STARTING. Don't carry tool with finger on switch. Be sure switch is OFF when plugging in. 16. EXTENSION CORDS. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough t o carry the current your product will draw.

  • Page 4: Additional Safety Rules

    VOLTAGE WARNING: Before connecting the tool to a power source (receptacle, outlet, etc.) be sure the voltage supplied is the same as that specified on the nameplate of the tool. A power source with voltage greater than that specified for the tool can result in SERIOUS INJURY to the user If in the tool.
  • Page 5 Guard Against Kickback. Kickback occurs when the saw stalls rapidly and is driven back towards the operator. Release switch immediately if blade binds or saw stalls. Keep blades sharp. Support large panels as shown in Fig. guide when ripping. Don't force tool. Stay alert exercise control. Don't remove saw from work during a cut while the blade is moving.
  • Page 6 15. Place the wider portion of the saw base on that part of the workpiece which is solidly supported, not on the section that will fall off when the cut is made. As examples, Fig. 5 illustrates the RIGHT way t o cut off the end of a board, the WRONG way.

  • Page 7: How To Use

    to use Switch action start the tool, simply pull the trigger. Release the trigger to stop. CAUTION First, unplug the tool from the power source. Blade removal Do not replace with saw blade bigger than 7- 114". Press in the shaft lock to keep the shaft stationary and grip the hex bolt with the standard-equipped wrench.
  • Page 8 (see the safetv ward as far as possible (i.e., as when removing the blade), then mount the blade on the shaft with the Makita name side facing you. Secure the hex bolt tightly, or the blade will slip and not turn.
  • Page 9 the cutting position Use the right notch of the front base for straight cuts. The notch l e f t cuts. Align the slot (saw position) on front edge of base with your own cutting line on the wood. For bevel work Loosen the nut M6 on the bevel scale plate on base front.

  • Page 10: Maintenance

    Both brushes should be changed the same time. ACCESSORIES CAUTION The accessories specified in this manual are recommended for use with your Makita Circular Saw. The use of any other accessory might be hazardous. Guide rule (Part 164095-8)

  • Page 11: Circular Saw

    Apr - 0 9 ' 8 4 US 185 mm ( 7 - 1 / 4 ' ) CIRCULAR SAW Model 5007NB Note: The switch and other part configurations may differ from country country.
  • Page 12 MAKmA LIMITED O N E YEAR WARRANTY Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase.
