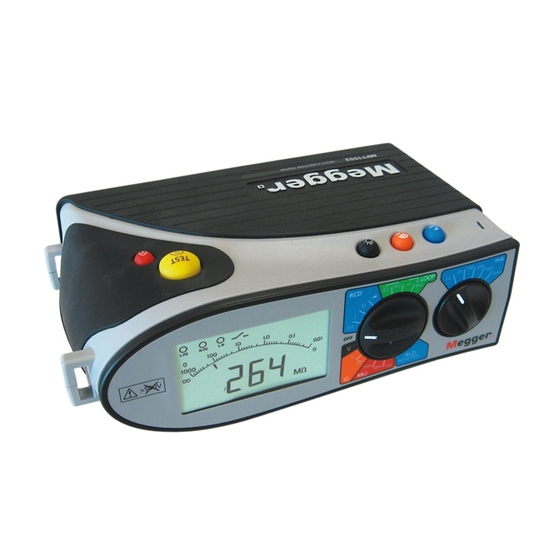

Megger MFT1500/2 Quick Start Manual

Megger MFT1500/2 Quick Start Manual

Multifunction tester
Hide thumbs Also See for MFT1500/2:

Advertisement

Quick Links

MFT1500/2 and
MFT1552 Series
Multifunction Tester
Quick Start Guide
Safety Warnings and Precautions must be read and understood before
I
the instrument is used. They must be observed during use.
The circuit under test must be switched off, de-energised and
I
isolated before test connections are made when carrying out insulation
and continuity tests.
Continuity of protective conductors and earthed equipotential bonding of
I
new or modified installations must be verified before carrying out an
earth fault loop impedance test, or RCD test.
Circuit connections and exposed metalwork of an installation or
I
equipment under test must not be touched.
The live circuit warning and Automatic discharge are additional safety
I
features and should not be regarded as a substitute for normal safe
working practices.
Do not move the rotary switch positions while a test is in progress.
I
The LCD 'neon' voltage indicators cannot reveal a Neutral - Earth reversal.
I
They cannot be relied upon to identify circuit correctness and are for
guidance only.
After insulation tests, capacitive circuits must be allowed to discharge
I
before disconnecting test leads.
The instrument should not be used if any part of it is damaged.
I
Test leads, probes and crocodile clips must be in good order, clean and
I
with no broken or cracked insulation.
Ensure that hands remain behind guards of probes/clips when testing.
I
U.K. Safety Authorities recommend the use of fused test leads when
I
measuring voltage on high energy systems.
Replacement fuses must be of the correct type and rating. Failure to fit
I
the correctly rated fuse will result in damage to the instrument in the
event of an overload.
G
SAFETY WARNINGS
M

Advertisement

loading
Need help?

Need help?

Do you have a question about the MFT1500/2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Megger MFT1500/2

  • Page 1 MFT1500/2 and MFT1552 Series Multifunction Tester Quick Start Guide SAFETY WARNINGS Safety Warnings and Precautions must be read and understood before the instrument is used. They must be observed during use. The circuit under test must be switched off, de-energised and isolated before test connections are made when carrying out insulation and continuity tests.
  • Page 2 NOTE THE INSTRUMENT MUST ONLY BE USED BY SUITABLY TRAINED AND COMPETENT PERSONS Users of this equipment and/or their employers are reminded that Health and Safety Legislation requires them to carry out valid risk assessments of all electrical work so as to identify potential sources of electrical danger and risk of electrical injury such as inadvertent short circuits.
  • Page 3 Continuity Measurement [Ω] Range switch set to [Ω] range Test Lead options 1 or 2 The MFT will automatically display continuity resistance when connected. Lead Null Short test leads together and press the YELLOW test button on the instrument or Switched Probe. Continuity Buzzer ( The buzzer will sound automatically when a circuit is made (default threshold <2 Ω)
  • Page 4 Non tripping loop test [NO TRIP] OPTION 1 OPTION 3 OPTION 2 3 wire Mains plug Switched measurement test lead Probe BLACK BLACK GREEN GREEN PROBE Range switch set to the [NO TRIP] Test Lead Options 1, 2 or 3 NOTE: A 3-Wire connection must be used.
  • Page 5 Range switch set to [Hi] range Test Lead set: Options 1, 2 or 3 Phase-Earth loop impedance 1) Connect the GREEN lead to EARTH and the RED lead to PHASE or plug into 13 Amp socket. 2) Supply voltage will be displayed. 3) The test will beep and automatically start when voltage is detected.
  • Page 6 No Trip PFC Measurement (NO TRIP PFC) Range switch set to [ NO TRIP PFC Using non tripping loop test lead options 1, 2 or 3 - connect the leads as shown. Phase to earth PFC 1) The supply voltage is displayed and the test will beep, and automatically start when sufficient voltage is detected.
  • Page 7 3. Press the TEST button. Reset the RCD each time it trips. 4. To recall test results repeatedly press the LOCK button. To indicate each test result, segments of the bar graph are displayed as below: 1 /2 no bars = I test, one bar = I test, five bars = 5I test DC test [DC] Test Lead OPTION 1,2 or 3 as required...
  • Page 8: Spare Fuse

    E casales@megger.com This instrument is manufactured in the United Kingdom. The company reserves the right to change the specification or design without prior notice. Megger is a registered trademark. Part No 6172-913- Edition 2 - Printed in England - 0206 www.megger.com...
