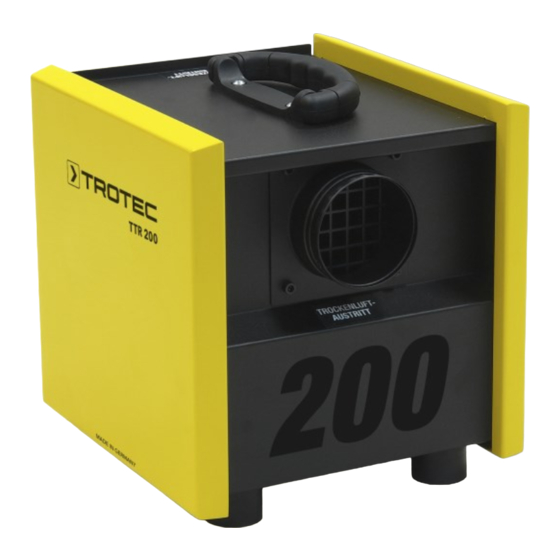

Trotec TTR 200 Operating Manual
Adsorption dehumidifier
Hide thumbs
Also See for TTR 200:
- Operating instructions manual (95 pages) ,
- Operating manual (95 pages) ,
- Original instructions manual (19 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Operating Manual
Advertisement
Table of Contents
Related Manuals for Trotec TTR 200
Summary of Contents for Trotec TTR 200
- Page 1 200 / ttr 300 Operating manual Adsorption dehumidifier...
-
Page 2: Table Of Contents
13. Disposal ..................7 Further optional accessory parts can be ordered from the Trotec customer Dehumidifier ........7 service. -
Page 3: General Safety Instructions
• Protect electrical connection cables against damage caused by, for example, animals. • Do not carry out any changes or repairs on the device! • Do not expose the device to any liquids. Operating manual – Dehumidifier TTR 200/300... -
Page 4: Functional Principle
4 Power switch 8 Ampere meter 5 Fan speed controller 9 Operating hour counter 6 Connection of external hygrostat 10 Humid air outlet 7 Intake cover coarse dust filter 11 Connection cable Fig.: Functional principle Operating manual – Dehumidifier TTR 200/300... -
Page 5: Optional Accessories
TTR 300) To achieve minimum humidity outlet at minimum drying air or maxi- For the technical data and order conditions, please contact the Trotec mum dehumidification performance at maximum drying air, it is cru- customer service. cial to appropriately adjust the volume of regeneration air. The air volume must be adjusted until the value defined as optimum heating flow is 8. -
Page 6: Transport And Storage
Cleaning of the interior and the integrated components may only be car- By default, all devices are equipped with a reusable filter mat. This mat ried out by trained personnel or the Trotec customer service. can be cleaned by beating or washing it. -
Page 7: Disposal
• Make sure that the air inlet and air outlet (drying air and humid air) are not covered. • Check if all filters as well as covers and protective grids are in place and tightened. All screw connections must be checked for tightness. Operating manual – Dehumidifier TTR 200/300... -
Page 8: Troubleshooting
12 kg Drying air connection 80 mm 100 mm Moist air connection 38 / 50 mm 50 mm Sound pressure level (within a distance of 1 m) 60 dB(A) 61 dB(A) at 20 °C/60% rh Operating manual – Dehumidifier TTR 200/300... - Page 9 Circuit diagram TTR 200...
- Page 10 Circuit diagram TTR 300...
- Page 11 Dimensions TTR200 79(DN80) Dimensions TTR 300 Ø 98(DN100)
- Page 12 Spare parts TTR 200 Item Designation Article number Item Designation Article number Housing P 1000 1241 Connection socket P 1000 1049 Cover P 1000 1241 Protective cover P 1000 1053 Panel P 1000 1241 Ampere meter P 1000 1058 Rotor cartridge...
- Page 13 Spare parts TTR 300 Item Designation Article number Item Designation Article number Housing P 1000 1242 Ampere meter P 1000 1058 Cover P 1000 1242 Operating hour counter P 1000 1137 Panel P 1000 1242 Cable bushing P 1000 1247 Rotor cartridge P 1000 1242 Filter mat...
-
Page 14: Ec Declaration Of Conformity
EN 61000-3-2:2006 + A1:2009 + A2:2009 EN 61000-3-3:2008 Author and authorised party of the technical documentation: Trotec GmbH & Co. KG · Grebbener Straße 7 · D-52525 Heinsberg Phone: +49 2452 962-400 · Fax: +49 2452 962-200 · Email: info@trotec.com Heinsberg, 01 September 2014... - Page 16 & Co. Kg Grebbener str. 7 d-52525 heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
