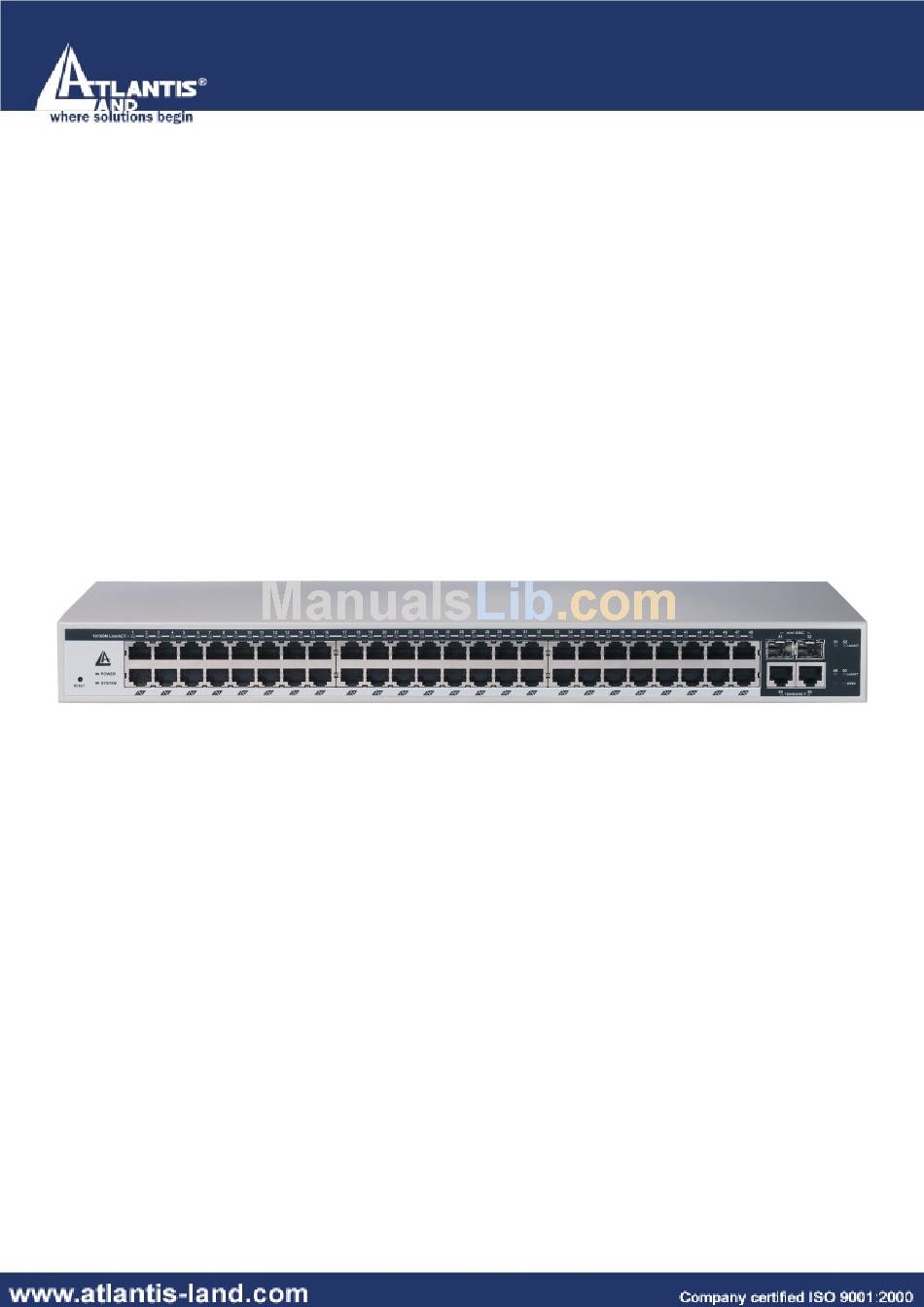

- Page 1 50-Port Dual Web Rack Switch A02-F48-4G USER’S MANUAL A02-F48-4G_ME01...
- Page 3 Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions. CE Mark Warning This is a Class A product.
-
Page 4: Table Of Contents
Statistics ... 19 System Settings... 20 TRAP ... 21 Set Password... 22 Backup Setting ... 22 ... 1 ... 4 ... 5 ABLE ... 6 OMPONENTS ... 9 ... 9 ANAGEMENT TILITY ... 9 TILITY ... 14 50-Port Dual Web Rack Switch... - Page 5 Reset Settings ... 23 Logout ... 23 APPENDIX A RJ-45 P ... 24 PECIFICATION APPENDIX B ECHNICAL PECIFICATIONS APPENDIX C ... 26 UPPORT A02-F48-4G _ME01 (December 2004, V1.00) ... 24 ... 25 ... 25 ... 26 50-Port Dual Web Rack Switch...
-
Page 7: About Thi Guide
48+4G-Port 10/100/1000Mbps Gigabit Ethernet Web Smart Switch. 1.2 Terms/Usage In this guide, the term “Switch” (first letter upper case) refers to your 48+4G-Port 10/100/1000Mbps Gigabit Ethernet Web Smart Switch, and “switch” (first letter lower case) refers to other Ethernet switches 1.3 Switch Features... -
Page 8: Fast Ethernet Technology
Switching Technology Another approach to pushing beyond the limits of Ethernet technology is the development of switching technology. A switch bridges Ethernet packets at the MAC address level of the Ethernet protocol transmitting among connected Ethernet or Fast Ethernet LAN segments. -
Page 9: Features
QoS gives you full control over which types of outgoing data traffic should be given priority by the Switch, ensuring important data like gaming packets move through the Switch at lightning speed, even under heavy load. 1.4 Features Dual Web Rack Switch provides the following features: •... -
Page 10: Chapter 2
• Leave at least 10cm of space at the front and rear of the hub for ventilation. • Install the Switch on a sturdy, level surface that can support its weight, or in an EIA standard- size equipment rack. For information on rack installation, see the next section, Rack Mounting. -
Page 11: Connecting Network Cable
Mount the Switch in the rack 2.4 Connecting Network Cable The Switch supports 10Mbps Ethernet or 100Mbps Fast Ethernet and it runs both in half and full duplex mode using two pair of Category 5 cable. The Switch also supports 2-Ports 1000Mbps Gigabit Ethernet that runs in Auto-negotiation mode and 10Mbps Ethernet or 100Mbps Fast Ethernet that runs both in half and full duplex mode and 1000Mbps Gigabit Ethernet runs in full duplex mode using four pair of Category 5 Cable. -
Page 12: Ac Power
1000 Base SX LC (50µm multimode optical fibers) 2.5 AC Power The Switch used the AC power supply 100-240V AC, 50-60 Hz. The power switch is located at the rear of the unit adjacent to the AC power connector and the system fan. The switch’s power supply will adjust to the local power source automatically and may be turned on without having any or all LAN segment cables connected. -
Page 13: Rear Panel
The Switch is equipped with two Gigabit twisted pair ports, supported auto negotiable 10/100/1000Mbps and auto MDI/MDIX crossover detection function. These two ports can operate in half-duplex mode for 10/100Mbps and full- duplex mode for 10/100/1000Mbps. When the port was set to “Forced Mode”, the Auto MDI/MDIX will be disabled. - Page 14 : When the mini-GBIC module is installed and connected to a network, the Link/ACT LED lights on. Blinking : When the LED is blinking, the mini-GBIC module is receiving data on a network. : No link. 50-Port Dual Web Rack Switch...
-
Page 15: Chapter 3
Through the Web Browser you can configure the Switch such as VLAN, Trunking, QoS… etc. With the attached Web Management Utility, you can easily discover all the Web Management Switch, assign the IP Address, changing the password and upgrading the new firmware. -
Page 16: Discovery List
• Location: Shows where the device is located. • Trap IP: Shows the IP where the Trap to be sent. • Subnet Mask: Shows the Subnet Mask set of the device. • Gateway: Shows the Gateway set of the device. 50-Port Dual Web Rack Switch... -
Page 17: Monitor List
• Subnet Mask: Shows the Subnet Mask set of the device. • Gateway: Shows the Gateway set of the device. View Trap: The Trap function can receive the events that happen from the Web Management Switch in the Monitor List. -
Page 18: Device Setting
In order to receive Trap information, switch has to be configured with Trap IP and Trap Events in Web browser, which are available in the Trap Setting Menu Add Item: To add a device to the Monitor List manually, enter the IP Address of the device that you want to monitor. -
Page 19: Toolbar
Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections. Web Access: Double click the device in the Monitor List or select a device in the Monitor List and press this “Web Access”... -
Page 20: Web Configuration
Ethernet connection, make sure the manager PC must be set on same the IP network. For example, when the default network address of the default IP address of the Web Smart Switch is 192.168.0.1, then the manager PC should be set at 192.168.0.x (where x is a number between 2 and 254), and the default subnet mask is 255.255.255.0. -
Page 21: Setup Menu
50-Port Dual Web Rack Switch 4.2 Setup Menu When the main page appears, find the Setup menu in the left side of the screen. Click on the setup item that you want to configure. There are 3 options: Port Settings, VLAN Settings, Trunk Setting. - Page 22 This setting has six modes: 100M Full, 100M Half, 10M Full, 10M Half, Auto and Disable. Flow Control: This setting determines whether or not the Switch will be handling flow control. Set FlowCtrl to Enable for avoiding data transfer overflow. Or it sets to Disable; there is either no flow control or other hardware/software management.
-
Page 23: Vlan Settings (Virtual Local Area Network)
There are two group for VLAN Setting, each group have fixed setting to choose, check on the port to be a member to the VLAN Port Group 1 or Port Group 2, and press “Apply” button to execute the setting. 50-Port Dual Web Rack Switch... -
Page 24: Trunk Setting
Group 4: Disable, [25:26],[25:28],[25:32] Group 5: Disable, [33:34],[33:37],[33:40] Group 6: Disable, [41:42],[41:44],[41:48] Group 6: Disable, [49:50] Be sure that the selected trunk setting port must connect to the device with a same VLAN group. 50-Port Dual Web Rack Switch 50):... -
Page 25: Maintenence
50-Port Dual Web Rack Switch 4.3 Maintenence Status Click on the “Status” to present the device status on this screen, it will show the System Status, Port Status, VLAN Status and Trunk Status . Press “Refresh” when you need to renew the posted information. -
Page 26: System Settings
50-Port Dual Web Rack Switch System Settings The System Setting includes the System name, Location name, Login Timeout, IP Address, Subnet Mask and Gateway. Through the Web Management Utility, you can easily recognize the device by using the System Name and the Location Name. -
Page 27: Trap
• Abnormal* Transmit Error: a trap when there are transmit data error in fiber port. Copper Port Events: Monitoring the copper port status. • Abnormal* Receive Error: a trap when there are receive data error in copper port. 50-Port Dual Web Rack Switch... -
Page 28: Set Password
If you forget the password, press the “Reset” button in the rear panel of the Switch, the current setting includes VLAN, Port Setting… etc. will be lost and the Switch will restore to the default setting. -
Page 29: Reset Settings
50-Port Dual Web Rack Switch Reset Settings The Factory Reset button helps you to reset the device back to the default setting from the factory. Be aware that the entire configuration will be reset, the IP address of the device will be set to default setting 192.168.0.1 [password=admin]. -
Page 30: Appendix A
The standard RJ-45 receptacle/connector. RJ-45 Connector pin assignment Contact Media Direct Interface Signal TX + (tx) TX - (tx) Rx + (rx) Not used Not used Rx - (rx) Not used Not used 50-Port Dual Web Rack Switch APPENDIX A... -
Page 31: Appendix B
FCC Class A, CE Mark Class A, VCCI Class A cUL(UL60950), CB(IEC60950) Store-and-forward 4K entries per device 10Mbps Ethernet: 14,880/pps 100Mbps Fast Ethernet: 148,800/pps 1000Mbps Gigabit Ethernet: 1,488,000/pps Automatic update 1536K Bytes per device 50-Port Dual Web Rack Switch APPENDIX B... -
Page 32: Appendix C
If you have any problems with theSwitch , please consult this manual. If you continue to have problems you should contact the dealer where you bought this Switch. If you have any other questions you can contact the Atlantis Land company directly at the following address:...
