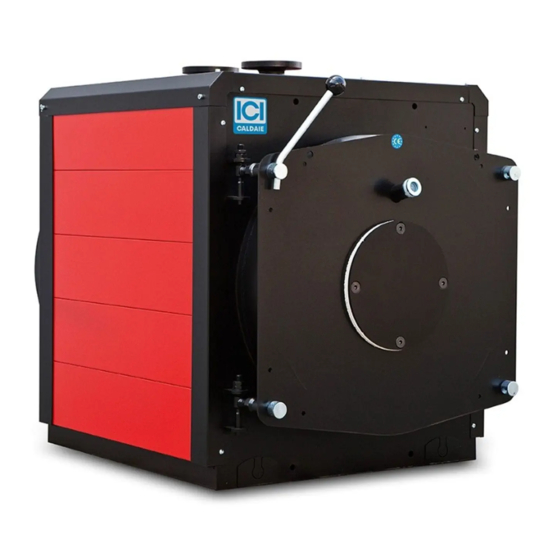

Pressurised steel boilers

Advertisement

TECHNICAL MANUAL
REX/REX F/REX K/REX K F
REX DUAL/REX DUAL F
STR
PRESSURISED STEEL BOILERS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REX and is the answer not in the manual?

Questions and answers

Summary of Contents for ICI Caldaie REX

  • Page 1 TECHNICAL MANUAL REX/REX F/REX K/REX K F REX DUAL/REX DUAL F PRESSURISED STEEL BOILERS...
  • Page 2: Table Of Contents

    Hot water heating system with closed expansion vessel - Furnace output > 300,000 kcal/h - pressure 5 bar .. 12 3.2.3 REX DUAL/REX DUAL F (side by side) 80÷260 positioning instruments ..........13 ELECTRICAL CONNECTION ........................... 14 REX/REX F/REX K/REX K F/STR CONTROL PANEL ..................14 REX DUAL/REX DUAL F OPERATING PRINCIPLES ..................
  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS REX/REX F/REX K/REX K F 7-130 BOILER Efficiency 100% Effic. 100% NG max flow NG max flow NG max flow Max flow rate Minimum Minimum Efficiency at 30% NG min flow NG min flow NG min flow Min flow rate...
  • Page 4 1030 855 415 912 415 54,5 756 700 1119 755 513 265 341 200-250 130 200 50 1" 1" 1/2" 1/2" REX 10 REX K 10 REX 10 F REX K 10 F 1030 855 415 912 415 54,5 756 700 1119 755 513 265 341 200-250 130 200 50 1" 1"...
  • Page 5: Rex/Rex F/Rex K/Rex K F 140-500 Boiler

    Dimensions Øb Øc mm mm DN/in DN/in DN/in DN/in DN/in REX 140 REX K 140 REX 140 F REX K 140 F 1746 1630 880 880 150 1470 1270 2886 2300 831 1300 755 350-400 320 400 150 150 1"...
  • Page 6: Rex 400-600 Boiler

    REX 400-600 BOILER Efficiency 100% NG max flow NG max flow NG max flow Max flow rate Minimum Minimum Efficiency at NG min flow NG min flow NG min flow Min flow rate Characteristics Heat output Furnace output output input (N.C.V.)
  • Page 7: Rex Dual/Rex Dual F (Staked) 14-170 Boiler

    REX DUAL/REX DUAL F (staked) 14-170 BOILER Efficiency 100% Effic. 100% NG max flow NG max flow NG max flow Max flow rate Minimum Minimum Efficiency at NG min flow NG min flow NG min flow Min flow rate Characteristics...
  • Page 8 DN/in DN/in DN/in DN/in DN/in REX DUAL 14 REX DUAL 14 F 1693 415 1245 1610 415 1245 780 54,5 884,5 939 756 700 540 1365 630 996 369 200-250 130 200 65 1"...
  • Page 9: Rex Dual/Rex Dual F (Side By Side) 80-260 Boiler

    REX DUAL/REX DUAL F (side by side) 80-260 BOILER Efficiency 100% NG max flow NG max flow NG max flow Max flow rate Minimum Minimum Efficiency at NG min flow NG min flow NG min flow Min flow rate Characteristics...
  • Page 10 DN/in DN/in DN/in DN/in DN/in REX DUAL 80 REX DUAL 80 F 1690 1015 500 1095 500 50 1901 890 955 1872 1502 600 850 422 230-280 225 250 100 100 1"...
  • Page 11: Str Boiler

    STR BOILER Minimum Minimum Efficiency 100% Effic. 100% NG max flow NG max flow NG max flow Max flow rate Efficiency at NG min flow NG min flow NG min flow Min flow rate Characteristics Heat output Furnace output (N.C.V.) (stars) rate G20 rate G30...
  • Page 12: Installation

    INSTALLATION Before connecting the boiler, perform the following operations: • Thoroughly clean all the system pipes in order to remove any foreign matter that could affect correct op- eration of the boiler; Check that the flue has an adequate draught, that there is no narrowing of passages and that it is free •...
  • Page 13: Hydraulic Connection

    HYDRAULIC CONNECTION HOT WATER HEATING SYSTEM WITH CLOSED EXPANSION VESSEL - Furnace output ≤ 3.2.1 300.000 kcal/h - pressure 5 bar (Fig. 1) The generator must be provided with: a - Safety valve b - Expansion vessel (connected with a hose ≥ 18 mm diameter) c - Regulation thermostats d - Safety thermostat...
  • Page 14: Rex Dual/Rex Dual F (Side By Side) 80÷260 Positioning Instruments

    3.2.3 REX DUAL/REX DUAL F (side by side) 80÷260 POSITIONING INSTRUMENTS 1. Pressure switch fitting 2. 1 safety valve fitting or thermal drainage 1 safety 3. 1 boiler circulator consent thermostat and safety thermostat bulb wells 4. Manometer fitting with control manometer flange 5.
  • Page 15: Electrical Connection

    REX/REX F/REX K/REX K F/STR CONTROL PANEL (Fig. 3) The control panel supplied with the boilers is made of self-extinguishing plastic and houses the regulation and safety instruments: Fig.
  • Page 16: Rex Dual/Rex Dual F Operating Principles

    2 equal flows have been mixed corresponds to mean flow temperature of two units 3.5.1 REX DUAL/REX DUAL F CONTROL PANEL (Fig. 4) The standard control panel is made of plastic with IP40 protection degree and houses the regulation and...
  • Page 17: Inverting The Door Aperture

    INVERTING THE DOOR APERTURE If the door is to be opened to the opposite side, act as follows: 1. Switch the outside nut (or bush) of one hinge with the diametrically opposite closure bush; then at the hinge side, fasten the cone to the door with the inside nut. 2.
  • Page 18: Assembly

    ASSEMBLY REX K/REX K F ASSEMBLY (Fig. 6-7) Ensure that installation premises floor is even and perfectly horizontal. For perfect welding, use acid or rutile cored electrodes (check codes AWS E6020 or AWS E6013 or E44LA3 or E44LC3). a) Put the boiler rear plate (1) on the floor with the hinges pointing down and ensure that it is perfectly lev- elled (mark the middle of the plate sides in order to position correctly the furnace and the tube nest.
  • Page 19 Front tube plate Furnace Upper tube nest Flow trap Lower tube nest Rear tube nest Smoke tubes Tie rod or stiffening stub Side frame Square tubes Manhole Smokebox N1 Flow N2 Return N3 Instrument fitting N4 Lower fitting N5 Fitting for safety valve and expansion vessel N6 Bulb wells Fig.
  • Page 20: Rex/Rex F/Rex K/Rex K F 7-40 Boiler Casings

    REX/REX F/REX K/REX K F 7-40 BOILER CASINGS (Fig. 8) a) Wrap the glass wool around the boiler body leaving the bulb well (P) on the right side exposed. b) Insert the wires connecting the burner to the control panel in the lower slits of panel (1S) and (1D), allow- ing for the opening direction of the manhole.
  • Page 21: Rex/Rex F/Rex K/Rex K F 50-130 Boiler Casings

    REX/REX F/REX K/REX K F 50-130 BOILER CASINGS (Fig. 9) a) Wrap the glass wool around the boiler body leaving the bulb well on the right side exposed. b) Insert the wires connecting the burner to the control panel in the lower slits of panel (1S) and (1D), allow- ing for the opening direction of the manhole.
  • Page 22: Rex Dual/Rex Dual F 14-70 Boiler Casings

    REX DUAL/REX DUAL F 14-70 BOILER CASINGS (Fig. 10) a) Wrap the glass wool around the boiler body leaving the bulb well (P) on the right side exposed. b) Open control panel and, through the casing holes (P1 or P2) insert bulbs in their wells (see figure). Fit the control panel.
  • Page 23: Str Boiler Casings

    STR BOILER CASINGS (Fig. 11) a) Wrap the glass wool around the boiler body leaving the bulb well on the right side exposed. b) Insert the wires connecting the burner to the control panel in the lower slits of panel (1S) and (1D), allow- ing for the opening direction of the manhole.
  • Page 24: Start Up

    START UP WARNING: Before start up insert wholly turbolators into the smoke tubes ensuring that they have been pushed inside for at least 100 mm. PRELIMINARY CHECKS Before starting the boiler, check that: The rating plate specifications and power supply network (electricity, water, gas or fuel oil) specifica- tions correspond;...
  • Page 25: Operation

    OPERATION OPERATING CHECKS The heating system must be correctly operated to ensure perfect combustion as far as possible with reduced emissions of carbon monoxide, unburnt hydrocarbons and soot into the atmosphere, and to avoid hazards and damage to people and goods. Guide to combustion values: FUELS Flue gases temperature % CO...
  • Page 26: Cleaning And Servicing

    Pressurisation values should be included in the range given in the table of technical specifications. WARNING The differential temperature between boiler flow and return must not exceed 15°C in order to prevent thermal shock to the boiler structures. The temperature of the return water must be above 55°C in order to protect the boiler from corrosion due to condensation of the flue gases on cold surfaces;...
  • Page 27 Iscritto R.I. VR 02245640236 DECLARATION OF CONFORMITY WITH THE EUROPEAN COMMUNITY REGULATIONS I undersigned Emanuela Lucchini, Managing Director of ICI CALDAIE S.p.A., hea- dquarted in via G. Pascoli 38 – 37059 Campagnola di Zevio (VR) Italy DECLARE THAT STEEL BOILERS...
  • Page 28 - www.icicaldaie.com The illustration and details reported are indicative only and are not binding. ICI CALDAIE reserves the right to introduce alterations and/or amendments as it deems fit and proper for the development of the product without the obligation of providing prior notice.
