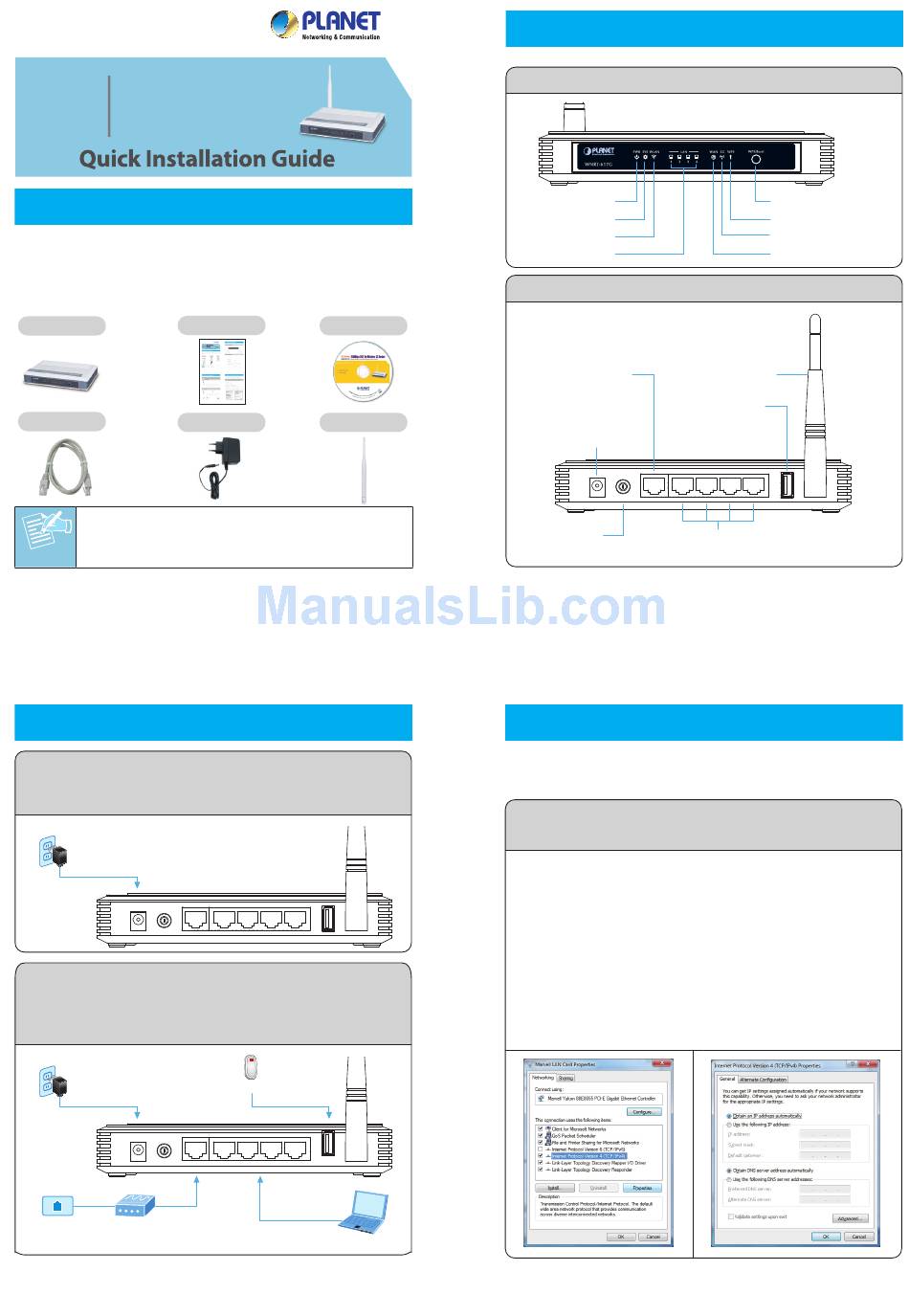

Planet WNRT-617G Quick Installation Manual

802.11n Wireless
150Mbps
3G Router

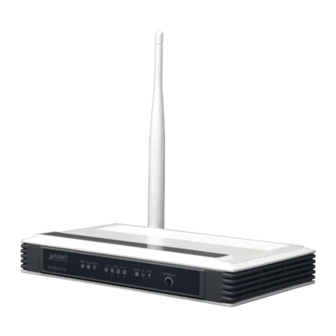

WNRT-617G
1. Package Contents
Thank you for choosing PLANET WNRT-617G. Before installing
the router, please verify the contents inside the package
box.
The items below should be contained in the package.
Wireless Router
Ethernet Cable Power Adapter
If there is any item missed or damaged, please
contact the seller immediately.
Note
3. Hardware Installation
STEP 1: Connect the Power Adapter to the Wireless Router
and turn on it. Check the PWR LED on the front
panel is on accordingly.
Power
Power
Adapter
ON/OFF
POWER
STEP 2: Follow the figure below to connect network
devices. It depends on your demand to connect
wired DSL/Cable connection, or 3G USB modem,
or both (backup for each other).
Power
Power
Adapter
ON/OFF
POWER
RJ-11 RJ-45
Phone
DSL / Cable
Jack
Modem
Quick Guide CD-ROM
Antenna
– 1 –
WAN 4 3 2 1 USB
3G USB Modem
USB
WAN 4 3 2 1
RJ-45
PC/Laptop
– 3 –
2. Physical Installation
Front Panel Description
Power LED
System LED
Wireless LED
LAN1~LAN4 LED
Rear Panel Description
WAN Port
(Connect to DSL/
Cable Modem)
Power Connector
12V DC Input
ON/OFF
POWER WAN
Power ON/OFF 4 x 10/100Mbps LAN Ports
Button Connect to user's PC or network devices
4. Manual Installation–Network Setup
A computer with wired Ethernet connection to the Wireless
Router is required for the first-time configuration.
STEP 1: Set your computer to get an IP address from the
Wireless Router: (Based on Windows 7)
1. Click "Start" button located at lower-left corner of you
computer
2. Click "Control Panel"
3. Double click "Network and Sharing Center" icon
4. Click "Change adapter settings"
5. Double click "Local Area Connection"
6. Select "Internal Protocol Version 4(TCP/IPv4)" and click
"Properties"
7. Select "Obtain an IP address automatically" and "Obtain
DNS server address automatically", then click "OK"
WPS/Reset Button
WPS Funtion LED
3G Connection LED
WAN Port Status LED
5dBi Antenna
USB port
(Connect to
3G Modem)
4 3 2 1 USB
– 2 –
– 4 –
