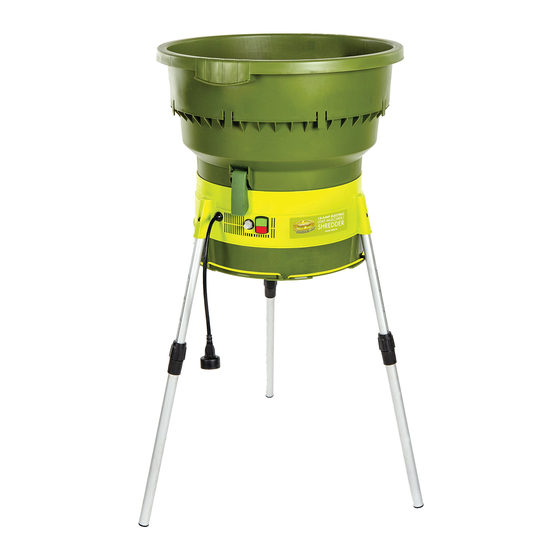

13-amp electric leaf mulcher/shredder form no. sj-sdj616-rm-880e-mr2

Advertisement

A Division of Snow Joe
, LLC
®

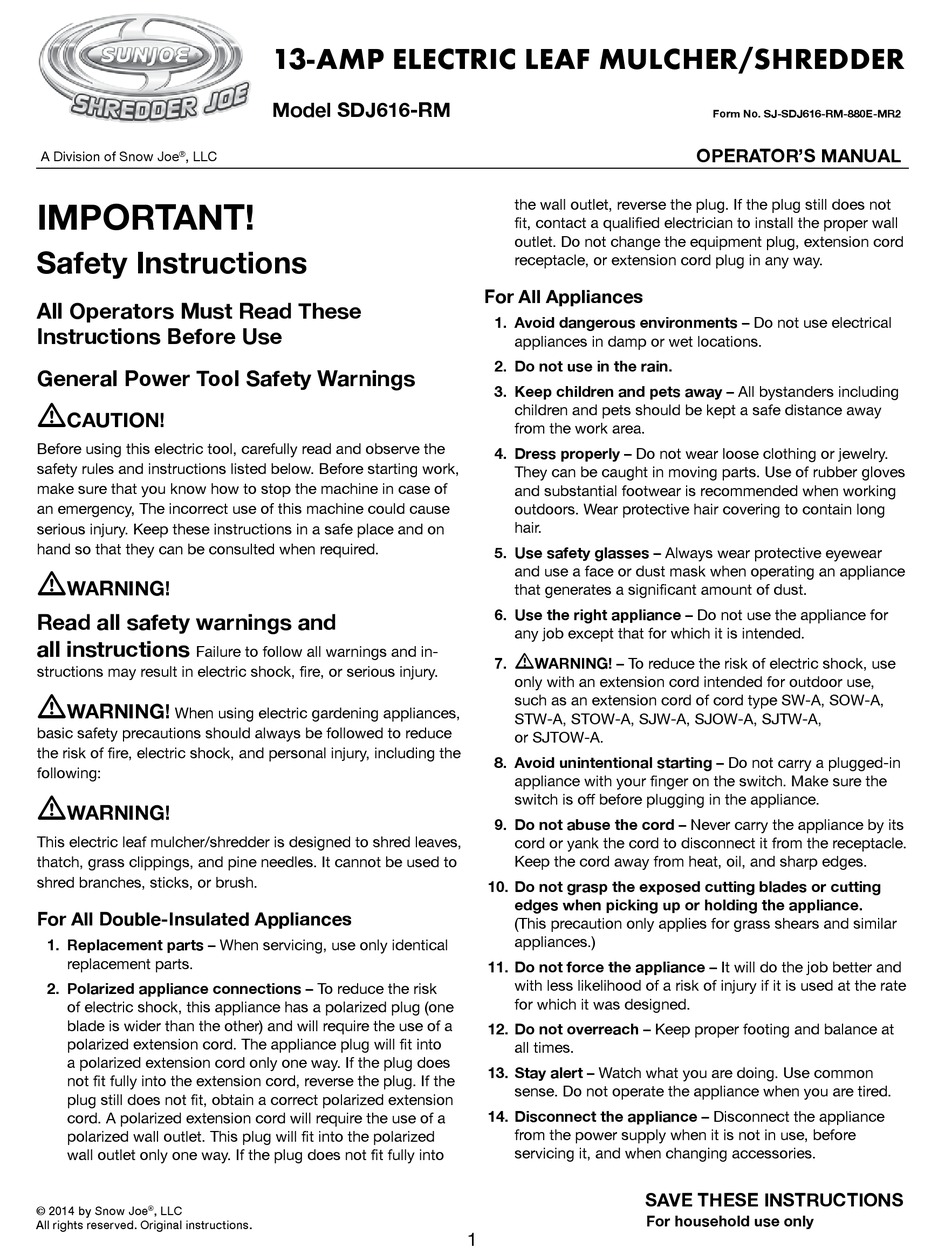

IMPORTANT!

Safety Instructions

All Operators Must Read These
Instructions Before Use

General Power Tool Safety Warnings

m
CAUTION!
Before using this electric tool, carefully read and observe the
safety rules and instructions listed below. Before starting work,
make sure that you know how to stop the machine in case of
an emergency, The incorrect use of this machine could cause
serious injury. Keep these instructions in a safe place and on
hand so that they can be consulted when required.
m
WARNING!
Read all safety warnings and
all instructions
Failure to follow all warnings and in-
structions may result in electric shock, fire, or serious injury.
m
WARNING!
When using electric gardening appliances,
basic safety precautions should always be followed to reduce
the risk of fire, electric shock, and personal injury, including the
following:
m
WARNING!
This electric leaf mulcher/shredder is designed to shred leaves,
thatch, grass clippings, and pine needles. It cannot be used to
shred branches, sticks, or brush.
For All Double-Insulated Appliances
1. Replacement parts – When servicing, use only identical
replacement parts.
2. Polarized appliance connections – To reduce the risk
of electric shock, this appliance has a polarized plug (one
blade is wider than the other) and will require the use of a
polarized extension cord. The appliance plug will fit into
a polarized extension cord only one way. If the plug does
not fit fully into the extension cord, reverse the plug. If the
plug still does not fit, obtain a correct polarized extension
cord. A polarized extension cord will require the use of a
polarized wall outlet. This plug will fit into the polarized
wall outlet only one way. If the plug does not fit fully into
© 2014 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
13-AMP ELECTRIC LEAF MULCHER/SHREDDER
Model SDJ616-RM
the wall outlet, reverse the plug. If the plug still does not
fit, contact a qualified electrician to install the proper wall
outlet. Do not change the equipment plug, extension cord
receptacle, or extension cord plug in any way.
For All Appliances
1. Avoid dangerous environments – Do not use electrical
appliances in damp or wet locations.
2. Do not use in the rain.
3. Keep children and pets away – All bystanders including
children and pets should be kept a safe distance away
from the work area.
4. Dress properly – Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber gloves
and substantial footwear is recommended when working
outdoors. Wear protective hair covering to contain long
hair.
5. Use safety glasses – Always wear protective eyewear
and use a face or dust mask when operating an appliance
that generates a significant amount of dust.
6. Use the right appliance – Do not use the appliance for
any job except that for which it is intended.
m
7.
WARNING! – To reduce the risk of electric shock, use
only with an extension cord intended for outdoor use,
such as an extension cord of cord type SW-A, SOW-A,
STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A,
or SJTOW-A.
8. Avoid unintentional starting – Do not carry a plugged-in
appliance with your finger on the switch. Make sure the
switch is off before plugging in the appliance.
9. Do not abuse the cord – Never carry the appliance by its
cord or yank the cord to disconnect it from the receptacle.
Keep the cord away from heat, oil, and sharp edges.
10. Do not grasp the exposed cutting blades or cutting
edges when picking up or holding the appliance.
(This precaution only applies for grass shears and similar
appliances.)
11. Do not force the appliance – It will do the job better and
with less likelihood of a risk of injury if it is used at the rate
for which it was designed.
12. Do not overreach – Keep proper footing and balance at
all times.
13. Stay alert – Watch what you are doing. Use common
sense. Do not operate the appliance when you are tired.
14. Disconnect the appliance – Disconnect the appliance
from the power supply when it is not in use, before
servicing it, and when changing accessories.
SAVE THESE INSTRUCTIONS
For household use only
1
Form No. SJ-SDJ616-RM-880E-MR2
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDJ616-RM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for sunjoe SDJ616-RM

  • Page 1: Safety Instructions

    13-AMP ELECTRIC LEAF MULCHER/SHREDDER Model SDJ616-RM Form No. SJ-SDJ616-RM-880E-MR2 OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet.
  • Page 2: Electrical Safety

    15. Store idle appliances indoors – When not in use, 3. To reduce the risk of electric shock, this appliance has appliances should be stored indoors in a dry and high or a polarized plug (i.e. one blade is wider than the other). locked-up place out of the reach of children.
  • Page 3 from the leaf mulcher/shredder, immediately switch off DOUBLE-INSULATED: GROUNDING NOT the unit and wait until it comes to a complete stop. Then, REQUIRED. WHEN SERVICING, USE ONLY disconnect the power cord and follow the steps below: IDENTICAL REPLACEMENT PARTS. Remove any foreign or clogged material. This leaf mulcher/shredder is double-insulated, eliminating Check for any loose parts and tighten them to ensure the need for a separate grounding system.
  • Page 4: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all safety instructions before attempting to assemble and operate the leaf mulcher/shredder. Symbols Descriptions Symbols Descriptions SAFETY ALERT – indicates CAUTION! Remove plug from a precaution, a warning, the outlet immediately if the...
  • Page 5: Technical Data

    Know Your Electric Leaf Mulcher/Shredder It is important to know the features and safety requirements of the leaf mulcher/shredder. Do not use the leaf mulcher/shredder for purposes or applications other than those for which the unit is intended. 1. Funnel cover 2.
  • Page 6 Assembly Assembling the Mulcher Stand 1. Loosen the height adjustment knob on the leg and pull the tube to the desired height; tighten the knob to secure the WARNING! Do not connect to power supply until leg in place (Figs. 4 & 5). assembly is complete.
  • Page 7 Assembling the Mulching Power Head 3. Fit the funnel cover in the funnel. Use the 8 locking tabs on the funnel to ensure a secure fit (Fig. 9). 1. Make sure the motor housing sits securely on the three legs (Fig. 7). Fig.
  • Page 8: Operation

    Operation Adjusting the Control Dial The control dial (Fig. 12) regulates the particle size and speed ON/OFF Switch at which material passes through the unit. When the control dial is set in the COARSE position, material will process The On/Off switch is located on the lower side of the motor through the unit faster, but will yield a larger particle size housing portion of the power head.
  • Page 9 Replacing the Cutting Line 4. Thread the lines through each corresponding ferrule (Fig. 15). This electric leaf mulcher/shredder features a bladeless mulching system that utilizes 0.1 in. x 12.6 in. (2.5 mm x Fig. 15 320 mm) heavy-duty trimmer line. Twenty replacement cutting lines are included in the box.
  • Page 10: Service And Support

    Service and Support WARNING! For optimal performance, use only replacement cutting lines designed specifically for this electric If your electric leaf mulcher/shredder requires service or leaf mulcher/shredder (Model SDJ616L). maintenance, please contact the Snow Joe /Sun Joe ® ® Monofilament lines having a maximum diameter of 0.1 in. customer service center at 1-866-766-9563.
  • Page 11 SNOW JOE + SUN JOE REFURBISHED GOODS WARRANTY ® ® GENERAL CONDITIONS: Snow Joe + Sun Joe may from time to time change the design ® ® of its products. Nothing contained in this warranty shall be Snow Joe + Sun Joe operating under Snow Joe , LLC ®...
  • Page 12 snowjoe.com...
