SunJoe AJ805E - Electric Lawn Scarifier & Dethatcher 5-INCH | 13-AMP Manual

Safety Instructions

All Operators Must Read These Instructions Before Use
Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

General Safety WARNINGS!
When using this electric scarifier + dethatcher, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Before using the scarifier + dethatcher, take the time to familiarize yourself with the controls, especially how to stop the machine in an emergency. The only individuals who should use the scarifier + dethatcher are those who have a thorough understanding of the instructions and who know how to operate the machine. Children should never be allowed access to the scarifier + dethatcher. Retain this manual for future reference and reread it at the start of each dethatching session.

General Safety

1. Keep work area clean and well-lit – Cluttered, dark areas invite accidents.
2. Replacement parts – When servicing this unit, use only identical replacement parts. Replace or repair damaged cords immediately.
3. Keep children, bystanders, and pets away – All spectators, including pets, should be kept a safe distance away from the work area.
4. Dress properly – Do not wear loose clothing or jewelry as such articles can get caught in moving parts. Wear a protective covering to contain long hair. Wearing rubber gloves and substantial non-slip footwear is recommended when working outdoors.
5. Avoid accidental starting – Do not carry the scarifier + dethatcher with your finger on the switch. Make sure the switch is off before plugging in the unit.
6. Do not force the tool – It will perform better with less likelihood of personal or mechanical injury if it is used at the rate for which it is designed.

SAVE THESE INSTRUCTIONS

Double-Insulated Appliances
In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means that it is already provided on a double-insulated appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe ® Sun Joe ® dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words "Double Insulation" or "Double Insulated." The symbol (square within a square) may also be marked on the appliance.

DOUBLE-INSULATED: GROUNDING NOT REQUIRED. WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS.
This electric scarifier + dethatcher is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions before servicing double-insulated appliances. Use this electric scarifier + dethatcher only as described in this manual.

Electric Safety

1. Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the dethatcher. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
2. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A. Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

   Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:
   • Do not allow any part of the electric scarifier + dethatcher to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting.
   • Use only a UL-, CSA-, or ETL-rated extension cord for outdoor, all-weather use, such as the Snow Joe ® + Sun Joe ® SJTW-A 14-gauge 50-foot extension cord with lighted end (Model PJEXT50-B). Visit sunjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563).
   • Do not use an extension cord over 100 ft (30 m).
   • Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.
     EXTENSION CORD CHART

     Extension Cord Length	Up to 50 ft (15 m)	+50 ft - 100 ft (+15 m - 30 m)
     Wire Gauge (A.W.G.):	14	12

3. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). Use this appliance only with a polarized, UL-listed (CSA certified in Canada) extension cord recommended for outdoor use. The appliance plug will fit into a polarized extension cord only one way. If the appliance plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle or extension cord plug in any way.
4. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.
   Table 1. Method of Securing Extension Cord



Safety Instructions for Walk-Behind Scarifier + Dethatchers
General Operation

• Read, understand and follow all instructions on the machine and in the manual(s) before starting.
• Thoroughly inspect the area where the equipment is to be used and remove all foreign objects.

  Foreign objects in the work area can be picked up by the scarifier + dethatcher and launched into your eyes, which can result in severe personal injury. In addition to surveying the area and removing foreign objects before beginning work, always wear safety goggles or safety glasses with side shields and, when necessary, a full face shield.
• Use the electric scarifier + dethatcher only in daylight or good artificial light.
• Do not operate the equipment without wearing adequate outer garments. Wear protective footwear that will improve footing on slippery surfaces.
• Use extension cords and receptacles as specified by the manufacturer for all units with electric drive motors or electric starting motors (see extension cord chart).
• Never attempt to make any adjustments while the motor is running.

• Never operate the scarifier + dethatcher in wet grass. Always be sure of your footing; walk, never run, with the machine.
• Do not put hands or feet near or under rotating parts.
• Exercise extreme caution when operating on or crossing gravel drives, walks or roads. Stay alert for hidden hazards or traffic.
• Exercise caution to avoid slipping or falling.
• Stop the motor and disconnect the power supply when leaving the operating position, before unclogging the tines and when repairing, adjusting, inspecting or performing any other maintenance on the machine.
• Take all necessary precautions when leaving the machine unattended. Stop the motor and remove the power cord.
• Before cleaning, repairing or inspecting the unit, shut off the motor, disconnect the power supply and wait until all moving parts have come to a complete stop.
• Never operate the machine without proper guards, plates or other safety protective devices in place and in proper working order.
• Keep children and pets away.
• Do not overload the machine capacity by attempting to dethatch too deep at too fast a rate.
• Never operate the machine at high transport speeds on hard or slippery surfaces.
• Never allow bystanders near the unit when operating.
• Use only attachments and accessories approved by the manufacturer of the machine.
• Never operate the machine without good visibility or light.
• Be careful when cultivating in hard ground. The tines may catch in the ground and propel the machine forward. If this occurs, let go of the handlebars and the starting lever and do not restrain the machine.
• Use extreme caution when reversing or pulling the machine towards you.
• Stop the tines if the machine has to be tilted for transportation. Do not operate the tines when crossing surfaces other than grass, and when transporting the product to and from the working area.
• Do not tilt the machine when switching on the motor, except if the product has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator.
• Do not start the motor when standing in front of the discharge opening.
• Switch on the motor carefully according to the instructions and keep your feet clear of the rotating tines.
• Never pick up or carry the machine while the motor is running.
• Stop the motor and disconnect the machine from the power supply:
  • before clearing blockages or unclogging the discharge opening;
  • before checking, cleaning or working on the machine;
  • after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine;
  • if the machine starts to vibrate abnormally (check immediately).
  • whenever you leave the machine.

• Never use the scarifier + dethatcher without the thatch collection bag securely fitted.
•
  Beware of sharp tines. Tines continue to rotate after the motor is switched off.

Slope Operation
Slopes are major factors related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not dethatch it.

• Dethatch across the face of slopes; never dethatch slopes following an up and down traverse. Exercise extreme caution when changing direction on a slope.
• Watch for holes, ruts, bumps, rocks or other hidden objects. These may cause an unexpected slip or fall.
• Do not dethatch on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.
• Do not dethatch near drop offs, ditches or embankments. You could lose your footing or balance.

Children Safety
Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the dethatching activity. Never assume that children will remain where you last saw them.

• Keep children out of the dethatching area and under the watchful care of a responsible adult other than the operator.
• Stay alert and turn the dethatcher off if a child enters the area.
• Never let children operate the machine.
• Use extra care when approaching blind corners, shrubs, trees or other objects that may block your view of a child.

Vibration + Noise Reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks:

• Only use the product as intended by its design and these instructions.
• Ensure that the product is in good condition and well maintained.

• Use correct application tools for the product and ensure they are in good condition.
• Keep tight grip on the handles/grip surface.
• Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
• Plan your work schedule to spread any high vibration tool use across a number of days.

Residual Risks
Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

• Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
• Injuries and damage to property due to broken application tools or the sudden impact of hidden objects during use.
• Danger of injury and property damage caused by flying objects.

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate.

Symbols	Descriptions	Symbols	Descriptions
	READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate.		SAFETY ALERT – Indicates a precaution, a warning, or a danger.
	Do not expose the unit to rain or wet conditions.		WEAR EYE AND HEARING PROTECTION – For protection against injury, wear ear defenders and safety goggles.
	Wear protective gloves and non-slip footwear when using the machine and handling debris.		Rotating blades – Keep hands and feet away from moving parts.
	Keep bystanders a safe distance away from the work area.		Thrown objects picked up by the rotating tines can cause severe injury.
	Inspect the work area prior to use and remove all objects that could be thrown by the appliance. If a hidden object is discovered while working, stop the engine and remove the object.		Use extreme CAUTION when reversing or pulling the machine towards you.
	SWITCH OFF! Remove plug from outlet before cleaning or conducting maintenance checks.		SWITCH OFF! Remove plug from outlet immediately if the cord is damaged or cut.
	Do not push down stairs.		Keep hands and feet away from the rotating parts.
	Double Insulation.

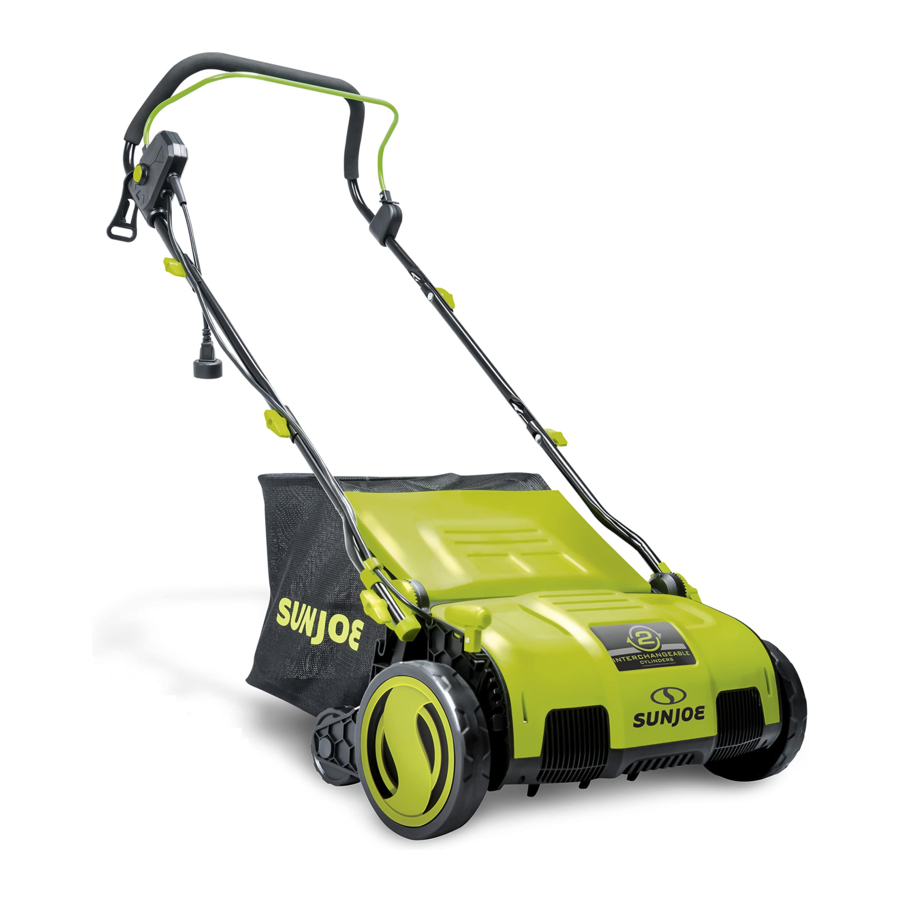

Know Your Electric Scarifier + Dethatcher

Read the owner's manual and safety instructions carefully before operating the scarifier + dethatcher. Compare the illustration below to the dethatcher in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference and reread it prior to each dethatching session.

1. Upper handle frame
2. Upper handle knobs + bolts (2)
3. Middle handle bars (2)
4. Middle handle knobs + bolts (2)
5. Lower handle bars (2)
6. Ejector flap
7. Locking bolts (2)
8. Bearing seat
9. Scarifying cylinder

10. Dethatcher cylinder
11. Hex key wrench
12. Front wheel (2)
13. Rear wheel (2)
14. Scarifying/raking depth adjustment lever
15. Lower handle knob + adjusting gear wheel (2)
16. Thatch collection bag

17. Cable clip
18. Appliance cord
19. Switch box
20. Extension cord restraint holder
21. Safety lock button
22. Switch lever
23. Soft grip

Technical Data

Rated Voltage	120 V ~ 60 Hz
Motor	13 amp
No Load Speed	3000 rpm
Raking Width Max	15 inch (38 cm)
Scarifying Depth †	-0.4 inch – 0 inch (-10 mm – 0 mm)
Raking Depth †	0 inch – 0.4 inch (0 mm – 10 mm)
Depth Adjustment	5-position
Thatch Bag Capacity	13.2 gal (50 L)
Dethatcher Cylinder	24 spring steel raking tines 1.5 mm thick + 1.2 inch (30 mm) long
Scarifier Cylinder	26 slicing blades 5.1 inch (130 mm) long
Wheel Size	8 in. (20 cm) front 4 in. (10 cm) rear
Net Weight	24.8 lbs (11 kg)

^† The negative scarifying/raking depth indicates that the tines/blades are raking below the horizon (i.e. penetrating the soil layer).

Unpacking

Carton Contents

• Scarifier + dethatcher
• Handle knobs (6) and bolts (4)
• Adjusting gear wheels (2)
• Upper handle frame
• Middle handle bars (2)
• Lower handle bars (2)
• Thatch collection bag
• Cable clip
• Hex key wrench
• Scarifying cylinder (Pre-assembled)
• Dethatcher cylinder
• Manual and registration card

1. Carefully remove the electric scarifier + dethatcher and check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe ® + Sun Joe ® customer service center at 1-866-SNOWJOE (1-866-766-9563).
   NOTE: Do not discard the shipping carton and packaging material until you are ready to use the electric scarifier + dethatcher. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage.

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Assembly

Do not connect the scarifier + dethatcher to the power supply until assembly is complete. Failure to comply could result in accidental starting and severe personal injury. Always wear gloves during assembly.

Connecting the Handle Bars

1. Insert the lower handle bars into the adjusting gear wheels. Pay attention to the direction of the bars. The space between the two bars at the bottom should be wider than the top part (Fig. 1).


2. Make sure the holes of lower handle bars and adjusting gear wheels are aligned. Insert the bolts on the machine into these holes. Secure with a set of handle knobs (Fig. 2).
   NOTE: Adjust the lower handle to the desired position for comfortable height by aligning the line on the adjusting gear wheel with one of the three lines on the scarifier + dethatcher body (Fig. 3).



3. Secure the two middle handle bars to the lower handle bars using a set of knobs and bolts. Tighten the knob on each side to ensure a secure fit (Fig. 4).



4. Connect the upper handle frame to the middle handle bars using the remaining knobs and bolts. Tighten the knob on each side to ensure a secure fit (Fig. 5).


5. Fix the cord with the spare cord clip and the clip on the adjusting gear wheel (Fig. 6).


Thatch Collection Bag Assembly

Do not attempt to use the product without the thatch collection bag attached. This could pose a danger of flying debris.

The product must be switched off and the cutting device must have stopped rotating before you attach or empty the thatch collection bag.

Never use the scarifier without the thatch collection bag securely fitted.
NOTE: A full thatch collection bag will reduce the performance of this product.
Attach the thatch collection bag to the lawn scarifier + dethatcher before operation.

1. Lift the ejector flap, and hang the thatch collection bag to the mounting hooks (Fig. 7).


Removing + Emptying the Thatch Collection Bag
Empty the thatch collection bag frequently during use. Do not wait until it is completely full. We recommend emptying it when it is half full.

1. Lift the ejector flap and pull the thatch collection bag off the mounting hooks to remove it.
2. Empty the bag's contents into a suitable waste receptacle. Mount the bag back into position before resuming work.

Intended Use

1. This scarifier + dethatcher is designated with a 13 amp motor. Depending on the fitted cutting device, this machine is either intended for scarifying and removing thatch from lawns or raking in domestic and hobby gardens.
2. When used as a scarifier, this machine works by scratching through and between the grass with specially adapted prongs that collect and remove any unwanted parts from the lawn while leaving the grass blades intact. At the same time the machine scarifies the ground resulting in a better aeration.
3. When used as a dethatcher the fine needles will scratch the surface of the lawn while simultaneously picking up light debris for better oxygen absorption, airing and drainage.
4. This machine is not to be used in wet weather conditions and may not be used to mow dry, wet or unusually high grass, e.g., pasture grass or for shredding leaves.
5. This machine is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other than those described.

Operation

Cutting Depth Adjustment

The unit must be switched off and disconnected from the power supply before adjusting the tine settings. Adjust the depth according to the needs of your lawn. The most suitable depth depends on the kind of lawn and the actual height of the grass.

1. Pull the depth adjustment lever away from the wheel, then move it forward or backward to adjust the cutting depth (Fig. 8).


2. Adjust the lever to one out of the five stages. Read the adjusted depth from the scale.

   Setting	Depth	Application
   High	10 mm	For pushing behind with the machine; and removing thin thatch layers. Do not use for scarifying.
   Minimal	5 mm	For raking healthy lawn. Do not use for scarifying.
   Middle	0 mm	For transport, storage, scarifying and raking.
   Deep	-5 mm	For scarifying, not recommended for raking.
   Deep	-10 mm	For scarifying, do not use for raking.

Power Connection
Push a loop of the extension cord through the slot on the extension cord restraint holder from the opposite side of the restraint holder (Fig. 9). Insert the appliance cord into a proper outdoor extension cord (see Extension Cord Chart).

Starting + Stopping

Before switching on the lawn scarifier + dethatcher, make sure that it is not in contact with any foreign objects. Keep your feet and hands a safe distance away from the rotating tines and the ejector opening. Failure to comply with these warnings can result in severe personal injury.

1. To start, press and hold the safety lock button while pulling the switch lever toward you. Once the machine powers on, release the safety lock button and proceed with operation (Fig. 10).


2. To stop the lawn scarifier + dethatcher, release the switch lever.

The tine cylinder continues to run for a brief period after the unit has been switched off. Do not tilt or carry the unit while the motor is still running and do not touch the cylinder while it is still rotating. Failure to comply could result in severe personal injury.

Overload Protection
The overload protection will be activated in the following circumstances:

1. A build up of scarified material around the cutting device.
2. If the material scarified is larger than the motor capacity.
3. Where there is too much resistance against the cutting device.

When the circuit breaker has been activated switch off the product and disconnect from the power supply. Let the product cool down and eliminate the cause before using the product again.

General Operation

If the product strikes a foreign object stop the motor. Switch the product off, disconnect it from the power supply and let it cool down. Inspect the product thoroughly for damage. Have any damage repaired before restarting.

Extensive vibration of the product during operation is an indication of damage. The product should be promptly inspected and repaired.

• Check the machine, its power cord and plug as well as accessories for damage before each use. Do not use the machine if it is damaged or shows wear.
• Double check that accessories are properly fixed.
• Push the machine forward by its handle. Keep the handle dry to ensure safe support.
• Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft brush. Blocked air vents may lead to overheating and damage the product.
• Switch the machine off immediately if you are disturbed while working by other people entering the working area. Always let the machine come to complete stop before putting it down.
• Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the machine.
• Mow the lawn before working and fertilize afterwards.
• Make sure that the lawn is clear of stones, sticks, wire, or other objects that could damage the machine or its motor.
• Select the suitable cutting depth for the actual grass height.
• Do not work with this machine on a wet lawn because it tends to stick to the underbody of the machine, preventing the proper discharge of collected material, and it could also cause you to slip and fall.
• Slowly push the machine forward. Move the machine at appropriate speed. Do not move it too fast to prevent the discharge from getting blocked and engine from useless overloading.

• Work in slight overlapping rows. The most effective pattern for scarifying/raking lawns is straight lines along one of the sides. This will keep the rows even and ensures that all the lawn is scarified/raked without missing any spots (Fig. 11).


• Circle around flower beds. When reaching a flower bed in the middle of the lawn, make a row or two around the circumference of the bed.
• Pay special attention when changing direction.

Scarifying
Consider the weather when scarifying. Scarify the lawn with an increased depth setting during spring time between April and May as the lawn is better able to recover during this season. During a wet summer scarify again in late summer with a decreased depth setting. Do not scarify during periods of hot weather condition. During a dry rainless summer do not scarify a second time in autumn.

Raking
In order for a healthy lawn to develop in the spring, it is necessary for greater amounts of air to penetrate the area around the roots of the grass. We recommend aerating the lawn every 4 – 6 weeks depending on the state of your lawn.

Maintenance

Before carrying out any repairs or servicing work, you must ensure that the machine has been disconnected from the power supply. Repairs and maintenance work other than described within this instruction manual may be performed only by qualified specialist!

Service + Storage
To ensure long and reliable service, carry out the following maintenance regularly. Servicing and cleaning work on the machine and the removal of the guards may only be carried out after the motor has been switched off and the plug disconnected from the power supply.

• Keep all nuts, bolts and screws tight to be sure the product is in a safe working condition.
• Allow the product to cool before storing in any enclosure.
• Check the thatch collection bag frequently for wear or deterioration.
• Examine the product regularly and replace worn or damaged parts for safety.
• Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using the machine.
• If the cutting device should happen to fail despite the care taken in manufacturing and testing, repair should be carried out by an authorized repair facility.
• Do not clean the machine while it is running.
• Ensure that all the fastening elements (screws, nuts, etc.) are tight at all times so that you can safely work with the machine.
• Check the machine frequently for signs of wear. Replace worn or damaged parts.
• Store your machine in a dry place. To ensure a long service life all screws and bolts should be cleaned and then oiled.
• Clean the machine with a brush or cloth. Do not use any solvents or water to remove dirt.
• The component that is subject to most wear is the cutting device. You should therefore check the condition of the cutting device and its mounting at regular intervals.
  • If the cutting device is worn or blunt it must be replaced immediately.
  • If the machine starts to suffer from excessive vibrations, this means that the cutting device has not been balanced correctly or has suffered deformation due to impacts. In this case it must be repaired or replaced.

Replacing/Changing Cutting Device

Always switch the machine off, disconnect it from power supply and let it cool down before changing/ replacing the cutting device.

Cutting devices are very sharp and become hot during use. Handle them carefully.

Wear safety gloves when handling cutting devices in order to avoid injuries like burns and cuts.

Make sure all bolts are completely tightened before operating the machine. Don't operate the machine if any bolts are missing, loose, or damaged. The product has two functions, scarifying or raking. The scarifying cylinder is preassembled on the machine. The dethatcher cylinder is included in the supply box. The cylinder can be changed according to the application (Fig. 12).


Before performing any maintenance, always disconnect the power supply to the unit and wait until the tine cylinder comes to a complete stop. Wear protective gloves when handling the tines.

1. Remove the thatch collection bag.
2. Place the machine upside down on a flat stable surface to access the underbody.
3. Loosen the two locking bolts with the provided hex key wrench, remove them together with the attached cutting device (Fig. 13).


4. To remove the cutting device, first lift the bearing seat and then pull it out from the drive shaft.
5. Align and insert the respective cutting device: Slide the hex nut into the socket of the drive shaft and fix the bearing seat to the support with the locking bolts (Fig. 14).


   Make sure the cutting device (dethatcher cylinder) is inserted properly. Make sure the semi-circle on the bearing seat of the cylinder goes downward into the unit. If the semi-circle is face up, it has been inserted incorrectly (Fig. 15).

   NOTE: If you have any questions, please call the Snow Joe + Sun Joe ® customer service center at 1-866-766-9563 (1-866-SNOWJOE) for assistance.

After Use

1. Switch the machine off, disconnect it from the power supply and let it cool down.
2. Check, clean and store the machine as described below.

Cleaning and Storage

1. Clean the exterior of the machine thoroughly using a soft brush and cloth before storing. Do not use water, solvents, or polishes.
2. Turn the scarifier + dethatcher on its side to clean the cylinder area.
   NOTE: Due to heavy use or when the grass is wet, clippings tend to stick to and accumulate around the cylinder, which will cause overheating. To prevent this, clean the cylinder of all the grass clippings after every use.

3. Store the scarifier + dethatcher in a dry place. Do not place other objects on top of the scarifier + dethatcher during storage.

Thatch Collection Bag

1. Inspect the thatch collection bag before each use. Do not use it if you find any damage.
2. Clean the thatch collection bag after operation. Let the thatch collection bag dry thoroughly before storing to avoid mildew.

Transportation

1. Switch the product off and disconnect it from power supply before transporting it anywhere.
2. Attach transportation guards, if applicable.
3. Adjust the cutting depth to the transportation stage (refer to "CUTTING DEPTH ADJUSTMENT").
4. Always transport the product by its handle.
5. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
6. Secure the product to prevent it from slipping or falling over.

Service and Support

If your AJ805E electric scarifier + dethatcher requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model and Serial Numbers

When contacting the company, reordering parts or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Troubleshooting

Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself! Suspected malfunctions, disturbances or damages are often due to causes that the user can fix themselves. Follow the below troubleshooting guidelines when checking the unit. In most cases, the problem can be resolved quickly and the dethatcher can be restored to proper working order.

Problem	Possible Cause	Solution
Motor does not start	Not connected to power supply Power cord or plug is defective Other electrical defect to the product Safety lock button not pressed The machine is overheated.	Connect to power supply. Contact an authorized service agent. Contact an authorized service agent. Press Safety lock button first, then the switch lever. Clean the grass clippings around the cylinder. Wait a while for the machine to cool down, then restart again.
Product does not reach full power	Extension cord not suitable for operation with this product Air vents are blocked	Use a proper extension cord Clean the air vents
Unsatisfying result	Cutting device worn Scarified material exceeds capacity Scarifying depth is incorrect	Replace the tine cylinder Only scarify materials according to capacity of the product Adjust depth

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download SunJoe AJ805E - Electric Lawn Scarifier & Dethatcher 5-INCH | 13-AMP Manual
