sunjoe GTS4002C Operator's Manual

Cordless lawn + garden multi-tool system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

OPERATOR'S MANUAL

A Division of Snow Joe

, LLC

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Always follow these safety guidelines. Failure to do so may

result in serious bodily injury or death.

General Safety

WARNING!

This appliance is not intended for use

by children or by unassisted, unsupervised persons whose

physical, sensory or mental capabilities prevent them from

using it safely. Children should be supervised to ensure that

they do not play with the appliance.

Before starting up your machine, please check it carefully for

any defects. If you find any, do not start up your machine.

Contact your authorized Snow Joe

call the Snow Joe

+ Sun Joe

1-866-SNOWJOE (1-866-766-9563).

WARNING!

When using the power tool, basic safety

precautions should always be followed to reduce the risk of

fire, electric shock, and personal injury. These include:

1. Keep work area clean and well-lit – Cluttered, dark

areas invite accidents.

2. Avoid dangerous environments – Do not use the power

tool in rain, in damp or wet locations, or in bad weather,

especially when there is a risk of lighting. This decreases

the risk of being struck by lighting. Do not operate the

power tool in gaseous or explosive atmospheres or use

the power tool near flammable or combustible liquids.

Motors in these tools normally spark, and the sparks

might ignite fumes.

3. Know your product – Know how to start and stop the

machine. Be thoroughly familiar with the controls.

4. Keep children, bystanders, and pets away – All

spectators, including pets, should be kept a safe distance

away from the work area.

5. Dress properly – Do not wear loose clothing or jewelry.

They can get caught in moving parts. Protective rubber

gloves and non-slip footwear are recommended when

working outdoors.

, LLC

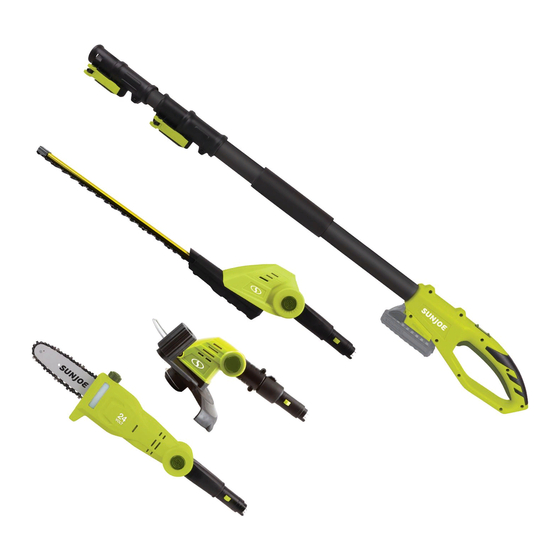

CORDLESS LAWN + GARDEN

MULTI-TOOL SYSTEM

24-VOLT | HEDGE + POLE TRIMMER | GRASS TRIMMER + EDGER| POLE CHAIN SAW

Model GTS4002C

+ Sun Joe

dealer or

customer service center at

CAUTION! – Exercise caution to avoid slipping or

falling. Wear protective footwear that will protect your feet

and improve your footing on slippery surfaces.

7. Stay alert – Watch what you are doing. Use common

sense. Do not operate the power tool when you are tired,

or under the influence of alcohol or drugs.

8. Do not overreach – Keep proper footing and balance at

all times.

9. Avoid unintentional starting – Do not carry the power

tool with your finger on the trigger. Make sure the switch is

off before inserting the battery.

10. Use the right appliance – Do not use the power tool

for any applications other than those for which it was

intended.

11. Blades are sharp – Don't grasp the exposed cutting

blades or cutting edges when picking up or holding the

power tool.

12. Use two hands – Hold the telescoping pole and handle

with both hands to avoid loss of control.

13. Remove the battery – Remove the battery from the

power tool when it is not in use, before servicing it, when

changing accessories, and when performing any other

maintenance task.

14. Use safety glasses – Also use safety footwear, snug-

fitting clothing, protective gloves, hearing and head

protection.

15. Use head protection – Always use head protection when

operating the power tool overhead. Falling debris can

result in serious personal injury.

16. Do not force the tool – It will perform better with less

likelihood of personal or mechanical injury if it is used at

the rate for which it was designed.

17. Store indoors – When not in use, the power tool should

be stored indoors in a dry and high or locked-up place out

of the reach of children.

18. Check for damaged parts – Before further use of the

appliance, all guards and parts should be carefully

checked to determine that it will operate properly and

perform its intended function. Check for alignment of

moving parts, binding of moving parts, breakage of parts,

mounting, and any other condition that may affect its

operation. A guard or other part that is damaged should

be properly repaired or replaced. Contact the Snow Joe

+ Sun Joe

customer service center at 1-866-SNOWJOE

(1-866-766-9563) for assistance.

SAVE THESE INSTRUCTIONS

Form No. SJ-GTS4002C-880E-M

Table of Contents

Need help?

Do you have a question about the GTS4002C and is the answer not in the manual?

Questions and answers

Summary of Contents for sunjoe GTS4002C

Page 1 OPERATOR’S MANUAL Model GTS4002C A Division of Snow Joe , LLC ® Form No. SJ-GTS4002C-880E-M IMPORTANT! CAUTION! – Exercise caution to avoid slipping or falling. Wear protective footwear that will protect your feet Safety Instructions and improve your footing on slippery surfaces.
Page 2: Cleaning The Tool
Failure to follow these instructions can result in serious To order genuine replacement parts or accessories for the personal injury or property damage. Sun Joe GTS4002C cordless lawn + garden multi-tool ® system, please visit snowjoe.com or contact the Snow Joe WARNING! ®...
Page 3 Storage Kickback WARNING! Kickback may occur when the nose or tip WARNING! Do not at any time let brake fluids, gasoline, of the guide bar touches an object, or when the wood closes petroleum-based products, penetrating oils, etc., come in in and pinches the saw chain in the cut.
Page 4: Battery & Charger Safety Instructions
4. Maintain a firm grip on the handle and the pole/auxiliary 16. If the grass trimmer + edger strikes a foreign object or handle while cutting with the blade. Keep the blade away becomes entangled with it, stop the tool immediately. from body.
Page 5 NOTE: The safe temperature range for the battery is 40°F to battery chemicals, immediately flush with water for 20 (4.5°C) to 105°F (40.5°C). Do not charge the battery outside minutes and seek medical attention. Remove and dispose in freezing weather; charge it at room temperature. of contaminated clothing.
Page 6 10. If the battery pack suffers overloading and overheating, 11. Do not use batteries that have suffered curvature or the integrated protective cutoff will switch off the deformation during the charging process or those that equipment for safety reasons. exhibit other atypical symptoms (gassing, hissing, cracking, etc.).
Page 7: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, SAFETY ALERT –...
Page 8 Know Your Cordless Lawn + Garden Multi-tool System Read the owner’s manual and safety instructions carefully before operating the cordless multi-tool system. Compare the illustration below to the cordless multi-tool system in order to familiarize yourself with the location of the various controls and adjustments.
Page 9: Carton Contents
Technique Data Unpacking Carton Contents Battery Voltage* 24 V D.C. Battery Capacity 2.0 Ah • Telescoping pole with auxiliary handle Charging Time 80 mins (1.3 hour) • Chain saw head with chain and bar pre-mounted Telescoping Pole Length 3.7 ft to 5.3 ft •...
Page 10: Charging The Battery
Charging the Battery 1. Push the push lock button on the battery to pull the battery pack out from the battery compartment (Fig. 1). Lights Light Indicators Fig. 1 Charge level button The battery is at 30% capacity Push button and requires charging The battery is at 60% capacity and requires charging soon...
Page 11: Pole Chain Saw
IMPORTANT! Never allow the battery pack to become fully discharged as this will cause irreversible damage to the Fig. 5 battery. Pole Chain Saw Assembly Chain/sprocket DANGER! Never start the motor before installing the end cover guide bar, chain, and chain/sprocket end cover. Without all these parts in place, the clutch can fly off or explode, exposing 3.
Page 12 NOTE: Make certain of the direction of the chain information on chain tensioning, see the Maintenance + If the chain is mounted backwards, the saw will vibrate Care section beginning on pg. 17. abnormally and will not cut. Fig. 11 Fig.
Page 13: Operation
3. To remove the chain saw head, release the On/Off switch and remove the battery. Unlock the assembly lock. Push Fig. 16 the lock tabs on both sides, and pull the chain saw head Pull Pull out (Fig. 13). Operation Starting and Stopping 1.
Page 14: Adjusting The Auxiliary Handle
3. Re-assemble the auxiliary handle lock knob and the bolt Back Side Fig. 19 on (Fig. 21). Fig. 21 Rotating button Front Side Rotating button To Adjust the Position of the Auxiliary Handle 1. Disconnect the saw from the power supply by removing the battery from the compartment.
Page 15 To Adjust the Angle of the Auxiliary Handle auxiliary handle, and the other hand on the handle with your thumbs and fingers encircling the pole and handle. A firm grip 1. Stop the saw by releasing the On/Off switch. combined with proper positioning of the handle against your 2.
Page 16 Basic Cutting Procedure can cause loss of saw control, which can throw the operator off balance and result in serious injury. Do not rely exclusively This unit with the chain saw head is designed for trimming upon the safety devices built into the saw. As a user, you small branches and limbs up to recommended 6.5 in.
Page 17: Maintenance & Care
Chain Tension • Now make your finishing cut from the topside of the branch smoothly and neatly against the main member so Check the chain tension before using the saw when the chain the bark will grow back to seal the wound. is cold.
Page 18: Guide Bar Maintenance
Guide Bar Maintenance An authorized service center will sharpen the chain using the right tools to ensure minimum removal of material and even When the guide bar shows signs of wear, turn it over on the sharpness on all the cutting edges. saw to distribute the wear for maximum bar life.
Page 19: Troubleshooting Tips
Troubleshooting Daily Checklist, Cleaning and Storage Troubleshooting Tips Most difficulties are easy to fix. Consult the troubleshooting Daily Checklist table for common problems and their solutions. If you continue to experience problems or need repairs beyond these minor To help maintain your pole chain saw for optimum adjustments, please call 1-866-SNOWJOE (1-866-766-9563) performance, we recommend you complete this checklist prior for assistance.
Page 20 Connecting to the Telescoping Pole Grass Trimmer + Edger 1. Open the assembly lock on the telescoping pole, and push the grass trimmer + edger head into the opening on the end of the pole (Fig. 33). Assembly Grass trimmer Fig.
Page 21 Operation 3. Lock the pole in position by closing the telescoping lock (Fig. 38), and ensure that the pole is secured. Starting and Stopping Fig. 38 1. Slide the battery into the battery compartment until it clicks to lock into position (Fig. 35). Fig.
Page 22 Adjusting the Multi-Angle Head NOTE: It's recommended to not remove the auxiliary handle when operating the grass trimmer + edger for better The grass trimmer + edger head can be rotated for 5 different maneuverability and easier operation. cutting angles for 0°, 15°, 30°, 45° and 60°. Follow the below To Adjust the Position of the Auxiliary Handle instructions to adjust angles.
Page 23: Operation Tips
Operation Tips To convert the unit, follow the instruction below: 1. To convert the grass trimmer to an edger, slide the • Wear non-slip gloves for maximum grip and protection. converting switch on the trimmer head up, meanwhile turn • For the best cutting action against walls, fences, and in the lower part of the trimmer head to the side until the high grass, move the grass trimmer slowly so grass is cut trimmer head is locked into position (Fig.
Page 24 CAUTION! Always wear eye protection. Fig. 51 1. Hold the trimmer at an angle of approximately 10 – 30 degrees to the work area (Fig. 48). Fig. 48 Edging wheel Advancing Lines 10º – 30º NOTE: Your trimmer uses 0.055 in. (1.4 mm) diameter nylon line to cut grass and weed quickly and easily.
Page 25 Winding the Line Fig. 53 NOTE: A factory wound spool (model GTS4002C-RS-6PK) is available for easy spool replacement on the GTS4002C Spool cordless grass trimmer + edger. Visit snowjoe.com to purchase this accessory online. Should you wish to wind the line yourself, the instructions are provided below.
Page 26 NOTE: Always replace the spool with a new pre-wound spool. tightly (Figs. 56 – 57). Visit snowjoe.com to purchase the pre-wound spool (model GTS4002C-RS-6PK) for this cordless grass trimmer + edger. Fig. 56 IMPORTANT: Keep all areas of the cutting head and cutting head cover clean.
Page 27: Pole Hedge Trimmer
Operation Pole Hedge Trimmer Starting and Stopping Assembly 1. Slide the battery into the battery compartment until it clicks to lock into position (Fig. 61). Connecting to the Telescoping Pole Fig. 61 The hedge trimmer head comes fully assembled. To use the machine as a pole hedge trimmer, connect the hedge trimmer head with the telescoping pole as indicated below.
Page 28 3. Lock the pole in position by closing the telescoping lock To Adjust the Position of the Auxiliary Handle (Fig. 64), and ensure that the pole is secured. 1. Disconnect the hedge trimmer from the power supply by removing the battery from the compartment. Fig.
Page 29: Before Operation
Adjusting the Multi-Angle Head Cutting Tips The hedge trimmer head can be rotated for 10 different cutting WARNING! Always hold the pole hedge trimmer with angles for -45º, -30º, -15º, 0º, 15º, 30º, 45º, 60º, 75º, and 90º. both hands. Never hold shrubs with one hand and operate the Follow the below instructions to adjust angles.
Page 30: Care & Maintenance
CAUTION! Do not use the pole hedge trimmer for Fig. 70 cutting stems greater than 0.6 inch (1.5 cm) thick. Use the pole hedge trimmer only for cutting normal shrubbery found around houses and buildings. Do not force the pole hedge trimmer through dense growth. A slight back and forth sawing action may ease the cutting of larger, more dense growth.
Page 31: Recycling + Disposal
• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the If your Sun Joe iON GTS4002C cordless lawn + garden ® groundwater and get into the food chain, damaging your multi-tool system requires service or maintenance, please call health and well-being.
Page 32 8-inch (20.3 cm) bar GTS-8CBAR Universal wall bracket with SJWB mounting hardware Pre-wound spool (6 Pack) GTS4002C-RS-6PK NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ®...
Page 33 NOTES...
Page 34 NOTES...
Page 35 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience as pleasant ® ® as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us.
Page 36 snowjoe.com WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm.
