Wiring the TP RJ-45 Connectors

Table 9 and
RJ-45 connectors (note that the cable Ground shielding must be
connected/soldered to the connector shield).
www.camboard.de
CAMBOARD Electronics
Wiring the TP RJ-45 Connectors

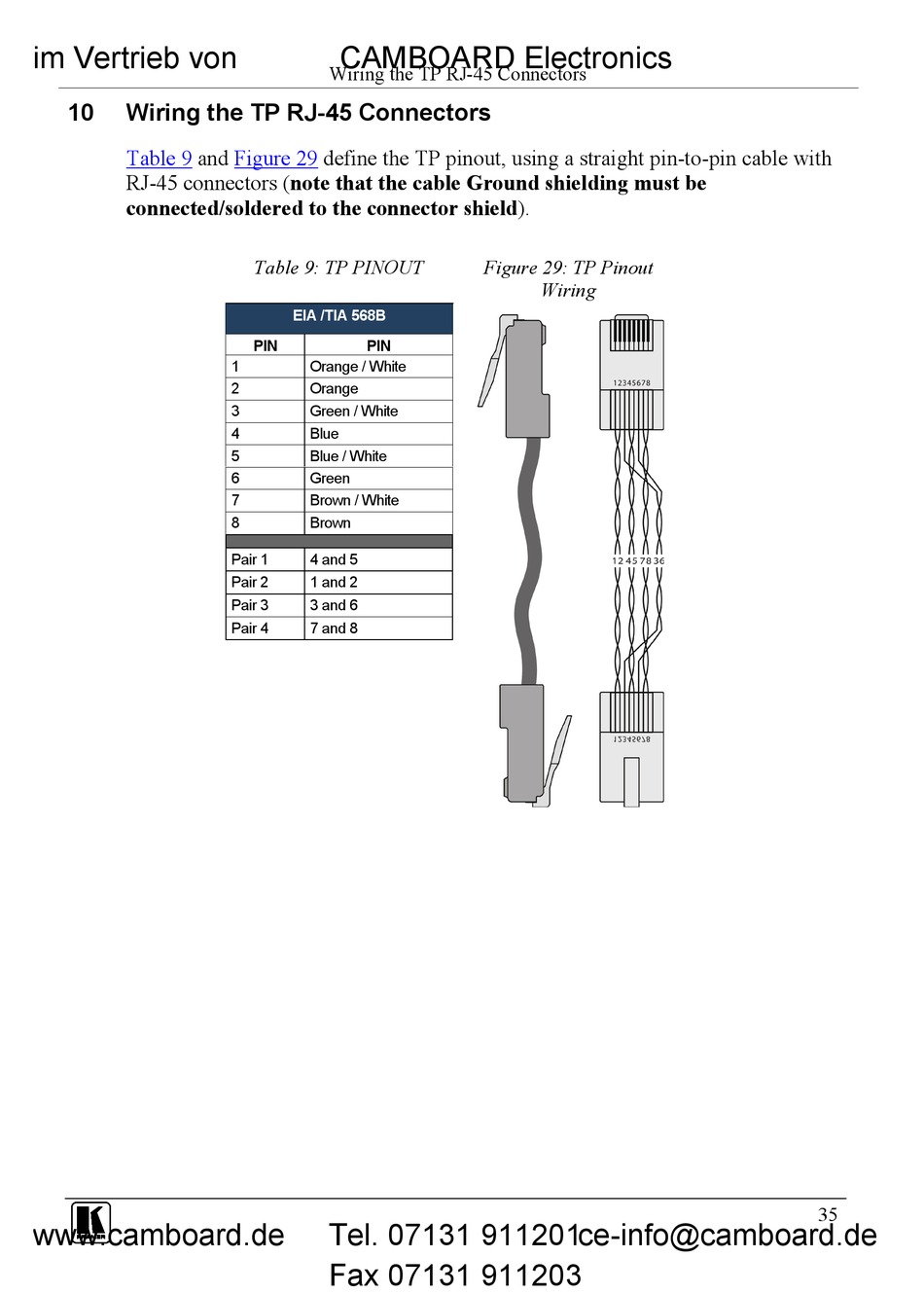

Figure 29 define the TP pinout, using a straight pin-to-pin cable with

Table 9: TP PINOUT

EIA /TIA 568B
PIN PIN
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
Pair 1 4 and 5
Pair 2 1 and 2
Pair 3 3 and 6
Pair 4 7 and 8
