Summary of Contents for YORKVILLE AP800

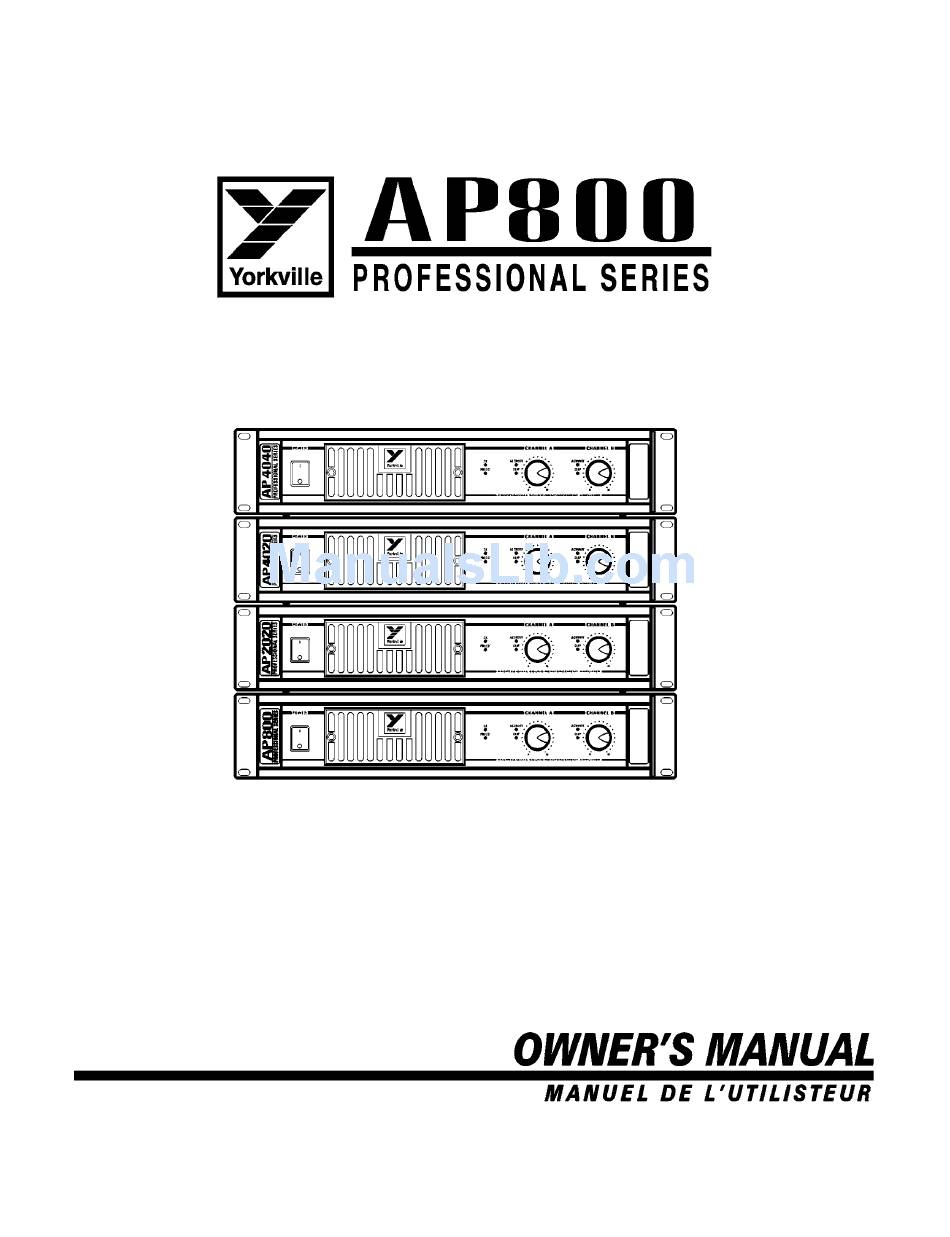

  • Page 1 TYPE: AP800 Manual-Owners-ap800-2v2.pdf...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS PERTAINING TO A RISK INSTRUCTIONS RELATIVES AU RISQUE OF FIRE, ELECTRIC SHOCK, DE FEU, CHOC ÉLECTRIQUE, OU OR INJURY TO PERSONS. BLESSURES AUX PERSONNES. CAUTION: AVIS: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, NOT REMOVE COVER (OR BACK).
  • Page 3: Unbalanced Inputs

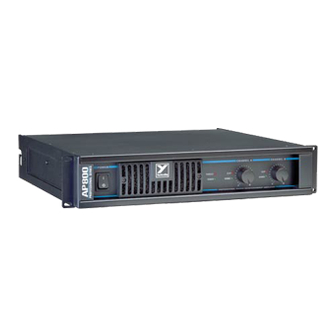

    We’ve made the AP800 power configurable, (see POWER CONFIGURATION), which makes it the most versatile amp in its class. The AP800 weighs a comfortable but solid 39 pounds, fits into two rack spaces, and reproduces music with over 1200 Watts of head- room.
  • Page 4: Stereo Mode

    CAUTION: The AP800 can deliver over 800 Watts of power into a bridged load. Yorkville’s own high power speaker systems have circuit- breaker protection built in. Although these speakers will protect themselves, they are unlikely to be damaged by a bridged AP800. However, many other speaker manufacturers make “high power cabinets”...
  • Page 5: Output Connections

    To produce objectively verifiable and accurate specifications these unknown factors must be eliminated by using an ideal AC line. When using an ordinary electrical outlet, it will usually be possible to get 800 Watts when the AP800 AP800 AP800 AP800 is bridged into 4-Ohms.
  • Page 7 INTRODUCTION Votre nouvel amplificateur AP800 a été conçu et fabriqué pour vous servir avec fiabilité pour bien des années à venir. Avec des car- actéristiques tel limiteur commutable et sélécteur MONO/STEREO/EN PONT, le AP800 s’introduit au marchéappuyé par la fiabilité...
  • Page 8 Yorkville Sound n’est responsable d’aucun dommage qui pourrait être causé par un excès de puissance appliqué sur des haut-parleurs incapables de la soutenir. La garantie inconditionnelle de deux ans de Yorkville ne couvre en aucun cas les dommages causés aux appareil ne provenant pas...
  • Page 9 La ligne CA idéale nous a donc permit d'obtenir des mesures précises. Il sera normalemetent possible d'obtenir 800 Watts de votre AP800 en pont avec une charge de 4 ohms lorsque branché à une ligne de CA commune. Les mesures de pointe sont faites avec une pointe de 1 KHz de 10ms à...
  • Page 10 Les câbles Speakon à 4 conducteurs ne pieuvent être utilisés avec cabinets branché selon le standard Speakon. Cela court-circuiterait la sortce B (+2) à la sortie A (-1) à l'intériuur du cabinet. Cable spéciale Yorkville pour Opération en pont* *cette câble dolt être speciallement constructé Amplificateur...
  • Page 11: Specifications

    SPECIFICATIONS Frequency Response: +/- 1dB, 20 Hz to 20 KHz Hum and Noise: -101 dB below max output RMS voltage, unweighted THD (1 khz, 4–Ohms): <0.01% THD(20Hz – 20kHz, 4–Ohms): <0.1% High Pass Filter: -3db @ 35Hz, -12db/octave rolloff Slew Rate: Power amp section: 18 V/uS, 36 V/uS in bridged mode Damping Factor: >...
  • Page 12 10 10...
  • Page 13 ����������������������� ��� & ��� ������������������ ����������� ��� ��� �������� ��������� �������� �� ���� ������� �� ������������ ��� ���� ��� ������� ������������ ���� ��������� ����� �� ���� ������� �� ���� ������� ������ ���� ��� ��� ������ ������ ��� ����� �� ��� �������� �������� ����...
  • Page 14 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689...
