YORKVILLE AP6020 Owner's Manual

Professional series
Hide thumbs Also See for AP6020:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual See also: Service Manual
AP6020
MODEL TYPE: YS6020

Advertisement

Table of Contents
loading

Related Manuals for YORKVILLE AP6020

Summary of Contents for YORKVILLE AP6020

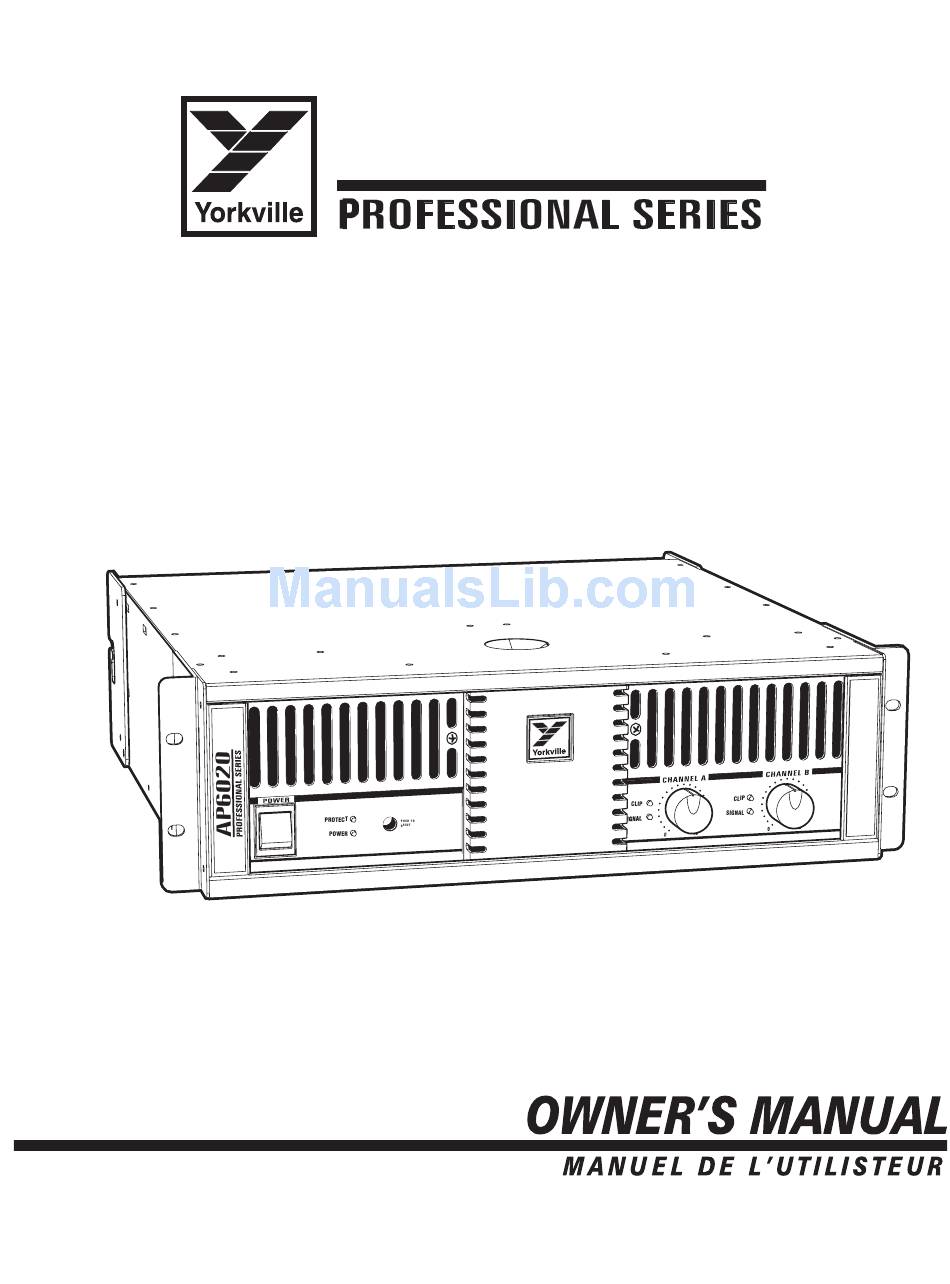

  • Page 1 AP6020 MODEL TYPE: YS6020...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.
  • Page 3 SPEAKON™ output connectors as well as binding posts. The AP6020 weighs a comfortable but solid 64 pounds, fits into three rack spaces, and reproduces music with over 7000 Watts of head- room. It will drive reactive phase shifted loads with no difficulty - even though it is fully protected from accidental short circuits. Our design goal was to create an amplifier that would do exactly what an amplifier should do: reproduce music with great power, complete reliability, and uncompromising signal fidelity.
  • Page 4 CAUTION: The AP6020 can deliver over 2000 Watts of power into a speaker load. Yorkville’s own high power speaker systems have circuit-breaker protection built in. Although these speakers will protect themselves, they are unlikely to be damaged by a AP6020. However, many other speaker manu- facturers make “high power cabinets”...
  • Page 5 Speakon connector which will connect A and B outputs be possible to get 3600 Watts when the AP6020 drives 2 ohms. The BURST measurements use a 10ms burst at 1Khz with 1/8 second pause between bursts. The 1Khz burst represents the maximum separately to the speaker (figure 2).
  • Page 6 Specifications Amplifier class 800 (x2) Coninuous Average Power @ 8 ohms BCD (Watts) 1300 (x2) Coninuous Average Power @ 4 ohms BCD (Watts) 2000 (x2) Coninuous Average Power @ 2 ohms BCD (Watts) 4000 @ 4 ohms Continuous Average Power Bridged BCD (Watts) 1200 (x2) Burst Average Power @ 8 ohms BCD (Watts) 2175 (x2)
  • Page 7 Introduction Votre nouvel amplificateur AUDIOPRO AP6020 a été conçu et fabriqué pour vous servir avec fiabilité pour bien des années à venir. Avec des caractéristiques tel limiteur commutable et sélécteur MONO/STEREO/BRIDGE, le AP6020 s’introduit au marché appuyé par la fiabilité déja prouvée de la série d’amplificateur AUDIOPRO.
  • Page 8 Yorkville Sound n’est responsable d’aucun dommage qui pourrait être causé par un excès de puissance appliqué sur des haut-parleurs incapables de la soutenir. La garantie inconditionnelle de deux ans de Yorkville ne couvre en aucun cas les dommages causés aux appareil ne provenant pas de...
  • Page 9 Entretient des Filtres de Ventillateur Le AP6020 est doté de deux filtre de ventilateur monté dans la prise d'air du panneau avant. La fiabilité de votre amplifi- cateur augmentera avec le nettoyage régulier de ce filtre. Au premier signe d'obstruction, enlevez et néttoyez le filtre. Cela AP60xx AIR FILTER REPLACEMENT devrait se produire à...
  • Page 11 Spécifications Classe d'Amplificateur 800 (x2) Puissance Moyenne Continue @ 8 ohms DCF (Watts) 1300 (x2) Puissance Moyenne Continue @ 4 ohms DCF (Watts) 2000 (x2) Puissance Moyenne Continue @ 2 ohms DCF (Watts) 4000 @ 4 ohms Puissance Moyenne Continue En Pont (Watts) 1200 (x2) Puissance Moyenne d’Éclatement @ 8 ohms DCF (Watts) 2175 (x2)
  • Page 13 Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.
  • Page 14 CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-ap6020-00-2v1 • Feb 5/2009...
