SECTION 6: ELECTRIC STARTER

WIRE HARNESS
(PACKARD CONNECTOR #03138080)
1
3
5
WIRE HARNESS
(PACKARD CONNECTOR #2973422)
5
3
1
WIRE HARNESS
(PACKARD CONNECTOR #2977048)
3
1
LEGEND
1 - IGNITION KILL TERMINAL - YELLOW
2
2 - STARTER SOLENOID - ORANGE
4 3 - CARBURETOR FUEL SOLENOID - WHITE
4 - LOW OIL PRESSURE SWITCH - BROWN
5 - OPEN
4
LEGEND
1. LOW OIL PRESSURE SWITCH - BROWN
2
2. IGNITION KILL TERMINAL - YELLOW
3. OPEN
4. CARBURETOR FUEL SOLENOID - WHITE
5. STARTER SOLENIOD - ORANGE
4
2
LEGEND
1 - IGNITION KILL TERMINAL - YELLOW
2 - BATTERY CHARGER - RED
3 - LOW OIL PRESSURE SWITCH - BROWN
4 - CARBURETOR FUEL SOLENOID - WHITE

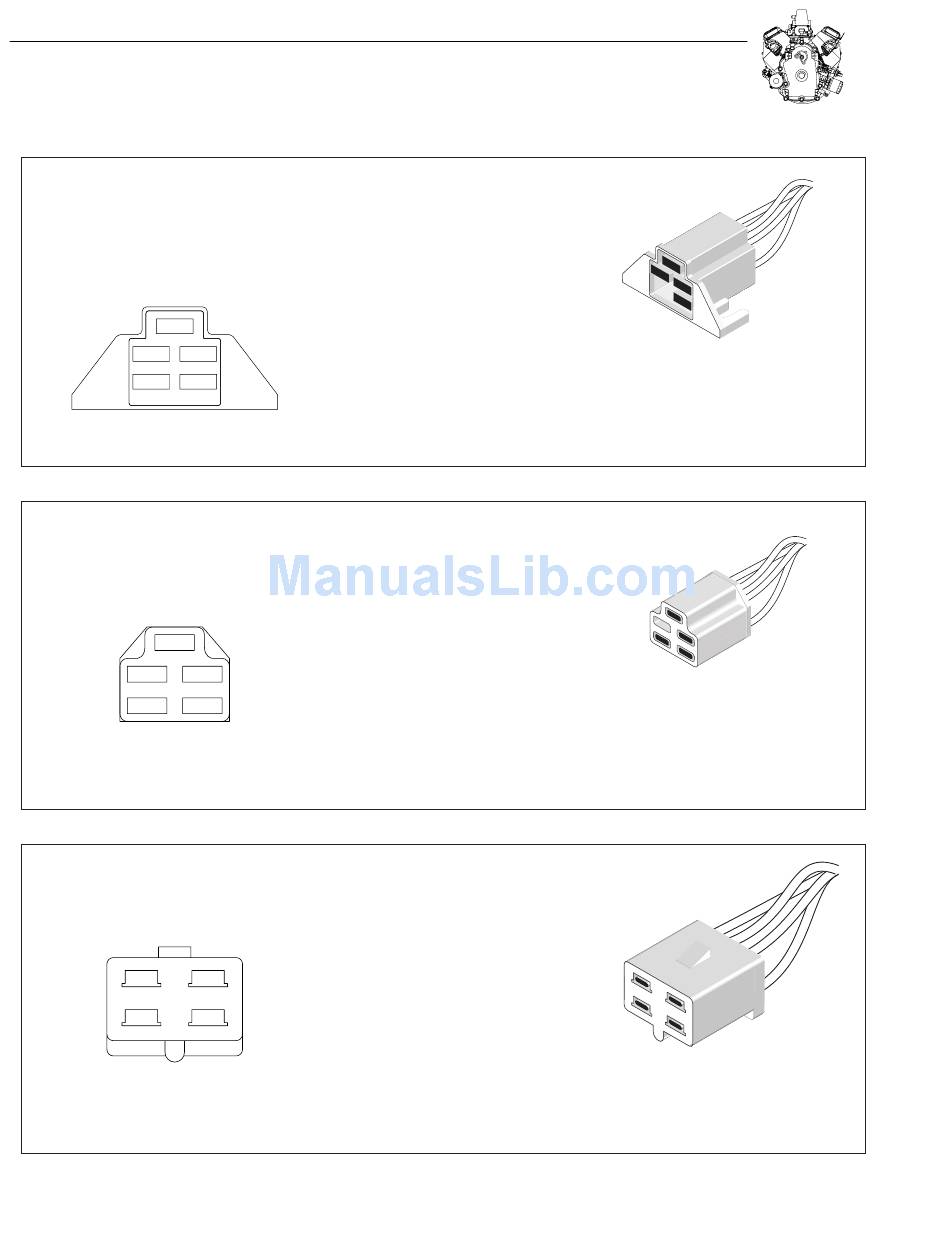

Figure 6-12. Optional Wire Harness Terminal Identification
6-6
