SECTION 5: CYLINDER HEAD AND VALVES
6. Install rotating screen.
a. Torque screws to 1.9 Nm (17 in. lbs).
7. Install finger guard.
a. If engine is equipped with hex head screws, torque screws to
4.5 Nm (40 in. lbs).
b. If engine is equipped with finger screws, tighten screws by hand
to approximately 1.3 Nm (12 in. lbs.).
FINGER GUARD
1
ROTATING SCREEN
2
INTAKE MANIFOLD
3
ASSEMBLY
4 OIL COOLER
5 BLOWER HOUSING
6 UPPER WRAPPER
7
LOWER WRAPPER
8
VALVE COVER
3
4

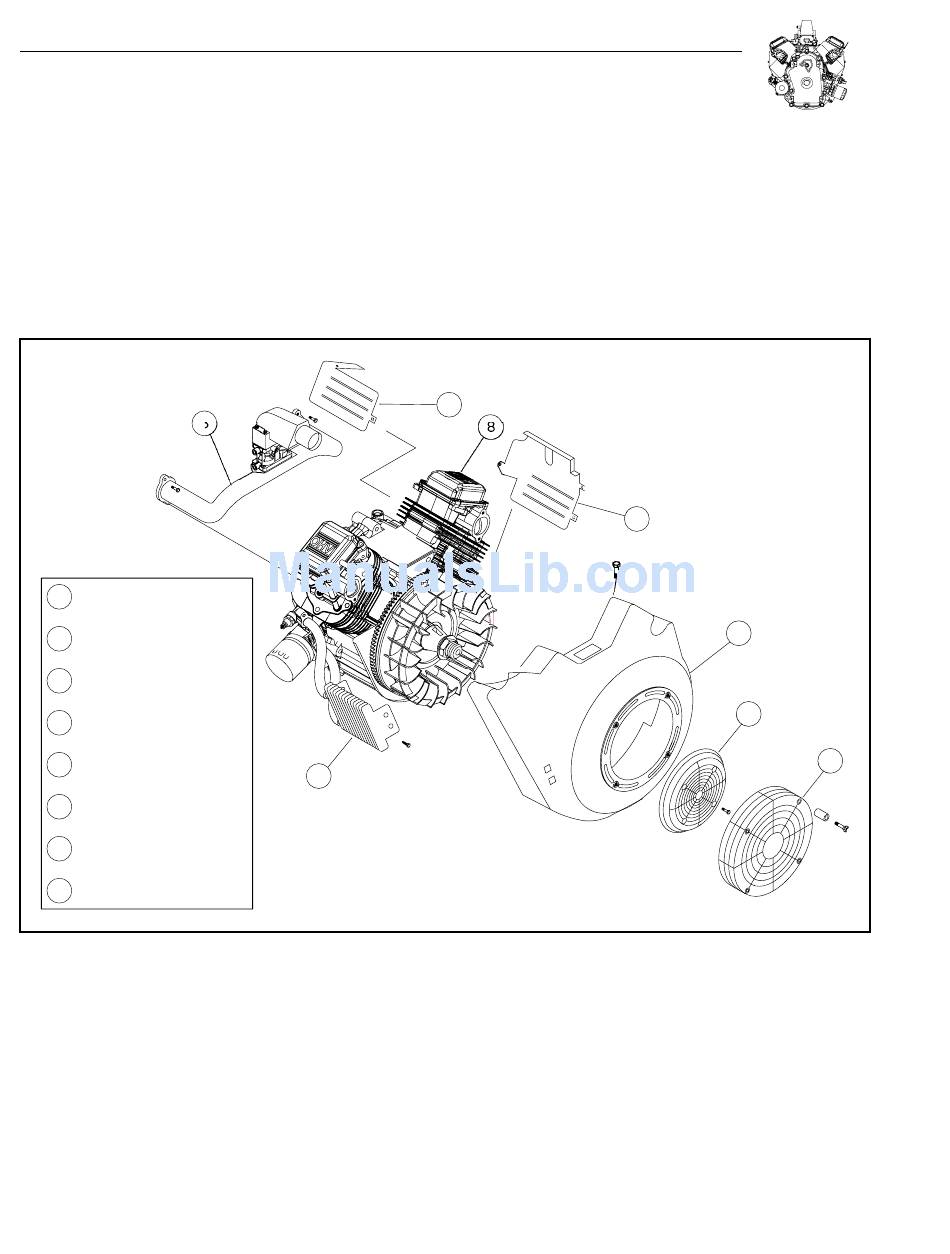

Figure 5-18. General Assembly
8. Assemble air cleaner.
9. Make Static and Dynamic Governor adjustments as outlined on
Page 4-3.
