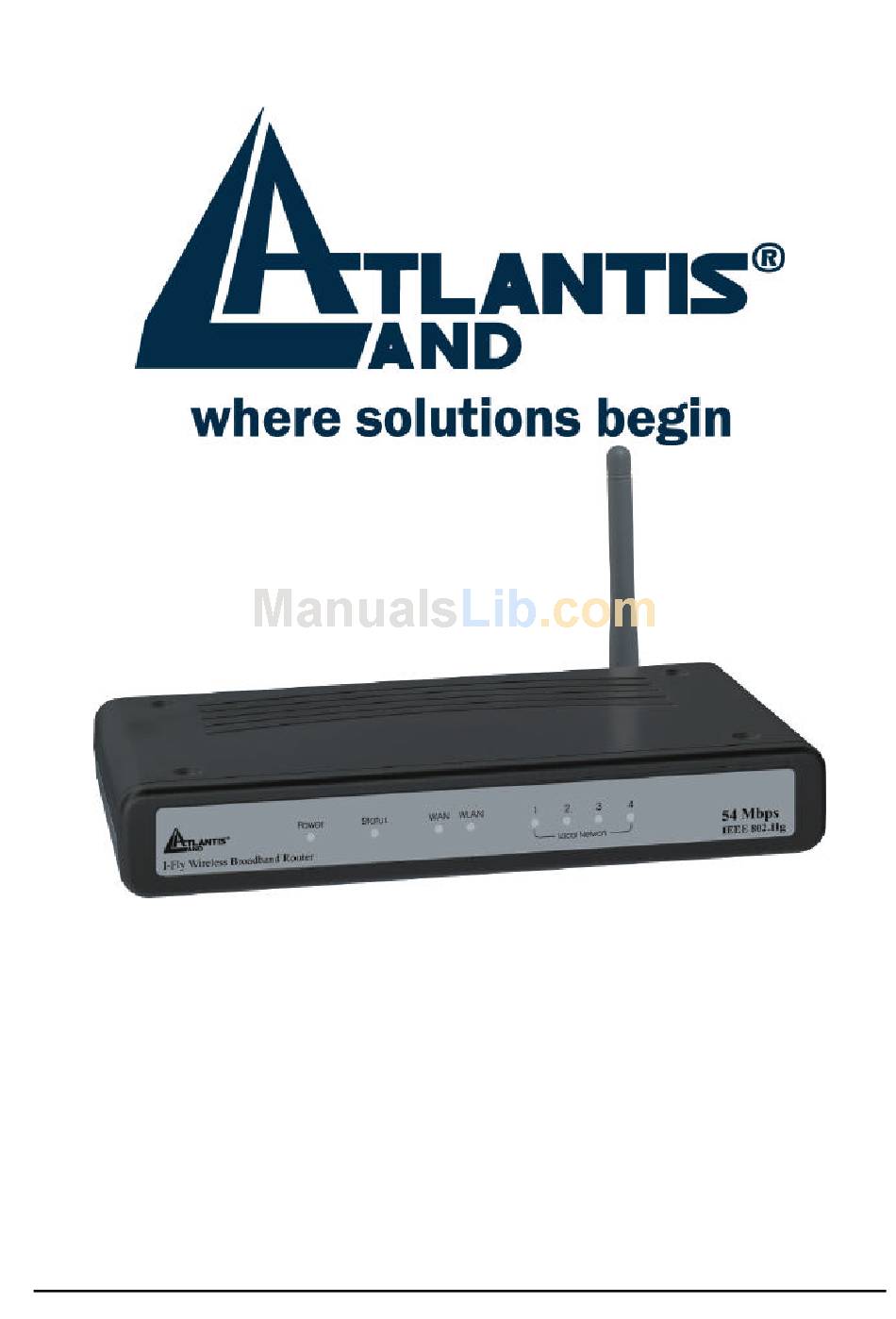

- Page 1 I-Fly Wireless Broadband Router User’s Manual (V1.0)
- Page 2 COPYRIGHT The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions. Copyright 2002 by this company.
-
Page 3: Table Of Contents
CHAPITER 1 1.1 A VERVIEW OF THE 1.2 P ... 2 ACKAGE ONTENTS 1.3 I-F IRELESS ROADBAND 1.4 S YSTEM EQUIREMENTS 1.5 I-F IRELESS ROADBAND CHAPITER 2 2.1 C AUTIONS FOR USING THE 2.2 T ... 5 RONT 2.3 T ... - Page 4 3.8.4.3 Routing Table... 30 3.8.5 Access... 30 3.8.5.1 Filter... 30 3.8.5.2 Virtual Server... 34 3.8.5.3 Special AP... 37 3.8.5.4 DMZ... 38 3.8.5.5 Firewall Rule... 38 3.8.6 Management... 39 3.8.6.1 SNMP... 39 3.8.6.2 Remote Management ... 39 3.8.7 Tools... 40 3.8.7.1 Restart ... 40 3.8.7.2 Settings...
-
Page 5: Chapiter 1
Chapiter 1 Introduction And' besides available on CDRom a Quick Start Guide for a fast configuration. 1.1 An Overview of the I-Fly Wireless Broadband Router The device for a total freedom of movement without losing the connection. Easy to be installed and fast and flexible, with I-Fly Wireless Broadband Router there is no more obligation for a fixed working place: you can easily work or navigate for fun from your own garden or in different rooms of your office, always in wireless connection. -
Page 6: Package Contents
product and then specific services can be rerouted to specific computers on the local network. For instance, a dedicated web server can be connected to the Internet via the product and then incoming requests for HTML that are received by the product can be rerouted to the dedicated local web server, even though the server now has a different IP address. -
Page 7: System Requirements
application layer gateway (ALG) are supported such as web browser, ICQ, FTP, Telnet, E- mail, News, Net2phone, Ping, NetMeeting and others. Firewall: Supports SOHO firewall with NAT technology. Automatically detects and blocks the Denial of Service (DoS) attack. The URL-blocking, packet filtering and SPI are also supported. - Page 8 ? Enables wireless building-to-building data communication ? Built-in infrastructure mode ? Router provides ideal solution for: ? Difficult-to-wire environments ? Temporary LANs for scenarios such as trade-exhibitions and meetings ? Enables LAN adaptability to frequently changing environments ? Enables remote access to corporate network information, for example e-mail and the company home page...
-
Page 9: Chapiter 2
Using I-Fly Wireless Broadband Router 2.1 Cautions for using the I-Fly Wireless Broadband Router Do not place the Router under high humidity and high temperature. Do not use the same power source for Router with other equipment. Do not open or repair the case yourself. If the Router is too hot, turn off the power immediately and have a qualified serviceman repair it. -
Page 10: The Rear Ports
2.3 The Rear Ports PORT (4 connettori RJ-45) RESET POWER (Jack) 2.4 Cabling The most common problem is bad cabling or ADSL/ISDN configuration. Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. As a first check, verify that the LAN/WLAN Link and Power line LEDs are lit.Verify that STATUS blink. -
Page 11: Chapiter 3
The I-Fly Wireless Broadband Router can be configured with your Web browser. The web browser is included as a standard application in the following operation systems, UNIX, Linux, Mac OS, Windows 95/98/NT/2000/Me, and etc. The product provides a very easy and user-friendly interface for configuration. -
Page 12: C Onfiguring Pc In W Indows
3.3 Configuring PC in Windows 3.3.1 For Windows 95/98/ME 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card (NIC) [or Wireless Interface Card in] your PC. - Page 13 5. Then select the DNS Configuration tab. 6. Select the Disable DNS radio button and click “OK” to finish the configuration.
-
Page 14: For Windows Nt4.0
3.3.2 For Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click “OK”. -
Page 15: For Windows 2000
3.3.3 For Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click LAN Area Connection. In the LAN Area Connection Status window, click Properties. - Page 16 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click “OK” to finish the configuration.
-
Page 17: For Windows Xp
3.3.4 For Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections. 2. Double-click Local Area Connection 3. In the LAN Area Connection Status window, click Properties. - Page 18 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons 6. Click “OK” to finish the configuration.
-
Page 19: Test Tcp/Ip
3.4 Test TCP/IP After configuring the TCP/IP protocol, you can use the ping command to check if your computer has successfully connected to this Router. The following example shows the ping procedure for Windows 98 . First, execute the ping command. Ping 192.168.1.1 If the following messages appear: Pinging 192.168.1.1 with 32 bytes of data:... -
Page 20: Factory Default Settings
3.6 Factory Default Settings Before configurating this Router, you need to know the following default settings. Web Configurator Username : admin Password: admin Device IP Network settings in LAN site IP Address : 192.168.1.1 Subnet Mask : 255.255.255.0 WAN setting : Client DHCP DHCP server : DHCP server enable 3.6.1 LAN and WAN Port Addresses The parameters of LAN and WAN ports are pre-set in the factory. -
Page 21: Configurazione Del Router Tramite Browser
If you ever forget the password to log in, you may press the RESET button to restore the factory default settings.. 3.8 Configurazione del Router tramite Browser Open the web browser, enter the local port IP address of this Router, which defaults at http://192.168.1.1, and click “Go”, The below window will popup. -
Page 22: Lan Settings
At the configuration homepage (if Quick Setup Wizard starts, please close it or read the printed Quick Start Guide or read Appendix A), the left navigation page where bookmarks are provided links you directly to the desired setup page, including: LAN Setting Wireless Status... -
Page 23: Wan
Host Name: Type the host name in the text box. The host name is required by some ISPs. The default host name is "AP-Router." IP Address: This is the IP address of the router. The default IP address is 192.168.1.1. Subnet Mask: Type the subnet mask for the router in the text box. - Page 24 Connection Type: Potrete scegliere tra le seguenti opzioni DHCP client or Fixed IP, PPPoE oppure PPTP presenti nel menù a tendina: Connection Type: Select the connection type, either DHCP client, Fixed IP or PPPoE from the drop- down list. WAN IP: Select whether you want to specify an IP address manually, or want DHCP to obtain an IP address automatically.
-
Page 25: Password
3.8.1.3 Password This screen enables you to set administrative and user passwords. These passwords are used to gain access to the router interface. Administrator: Type the password the Administrator will use to log in to the system. The password must be typed again for confirmation. -
Page 26: Time
3.8.1.4 Time This screen enables you to set the time and date for the router's real-time clock, select your time zone, and enable or disable daylight saving. Local Time: Displays the local time and date. Time Zone: Select your time zone from the drop-down list. Daylight Saving: Enables you to enable or disable daylight saving time. -
Page 27: Authentication
Enable/Disable: Enables and disables wireless LAN via the router. SSID: Type an SSID in the text box. The SSID of any wireless device must match the SSID typed here in order for the wireless device to access the LAN and WAN via the router. Channel: Select a transmission channel for wireless communications. -
Page 28: Advanced
3.8.2.3 Advanced This screen enables you to configure advanced wireless functions. Beacon Interval: Type the beacon interval in the text box. You can specify a value from 1 to 1000. The default beacon interval is 100. RTS Threshold: Type the RTS (Request-To-Send) threshold in the text box. This value stabilizes data flow. -
Page 29: Status
Note: As soon as 802.1X security is enabled, all the wireless client stations that are connected to the Router currently will be disconnected. The wireless clients must be configured manually to authenticate themselves with the Radius server to be reconnected. 3.8.3 STATUS This selection enables you to view the status of the router LAN, WAN connections, and view logs and statistics pertaining to connections and packet transfers. -
Page 30: Log
3.8.3.2 Log This screen enables you to view a running log of router system statistics, events, and activities. The log displays up to 200 entries. Older entries are overwritten by new entries. The Log screen commands are as follows: Click First Page to view the first page of the log Click Last Page to view the final page of the log Click Previous Page to view the page just before the current page Click Next Page to view the page just after the current page... -
Page 31: Log Setting
Time: Displays the time and date that the log entry was created. Message: Displays summary information about the log entry. Source: Displays the source of the communication. Destination: Displays the destination of the communication. Note: Displays the IP address of the communication 3.8.3.3 Log Setting This screen enables you to set router logging parameters. -
Page 32: Statistics
Syslog Server: Type the IP address of the Syslog Server if you want the router to listen and receive incoming Syslog messages. Log Type: Enables you to select what items will be included in the log: System Activity: Displays information related to router operation. Debug Information: Displays information related to errors and system malfunction. -
Page 33: Dynamic
Network Address: Type the static IP address your network uses to access the Internet. Your ISP or network administrator provides you with this information. Network Mask: Type the network (subnet) mask for your network. If you do not type a value here, the network mask defaults to 255.255.255.255. -
Page 34: Routing Table
Receive: Click the radio buttons to set the desired transmit parameters, disabled, RIP 1, or RIP 2 3.8.4.3 Routing Table This screen enables you to view the routing table for the router. The routing table is a database created by the router that displays the network interconnection topology. Network Address: Displays the network IP address of the connected node. - Page 35 MAC Filter: Enables you to allow or deny Internet access to users within the LAN based upon the MAC address of their network interface. Click the radio button next to Disabled to disable the MAC filter. Disable: Once the function of MAC filter is disable, those listed in the MAC Table are allowed Internet access.
- Page 36 bottom of the page. (Note: Click anywhere in the item. Once the line is selected, the fields automatically load the item's parameters, which you can edit.) Enable: Click to enable or disable the IP address filter. Range Start: Type the minimum address for the IP range. IP addresses falling between this value and the Range End are not allowed to access the Internet.
- Page 37 Domain Blocking You could specify the domains which allow users to access or deny by clicking one of the two items. Also, add the specified domains in the text box.
-
Page 38: Virtual Server
3.8.5.2 Virtual Server This screen enables you to create a virtual server via the router. If the router is set as a virtual server, remote users requesting Web or FTP services through the WAN are directed to local servers in the LAN. - Page 39 Application ICQ 98, 99a NetMeeting 2.1 a 3.01 VDO Live mIRC Cu-SeeMe PC AnyWhere Edonkey/Emule MSN Messanger Outgoing Nessuno Nessuno Nessuno Nessuno 7648 TCP &UDP, 24032 UDP 5632 UDP, 22 UDP, 5631 TCP, 65301 TCP Nessuno Nessuno Ingoing Nessuno 1503 TCP, 1720 TCP Nessuno Nessuno 7648 TCP &UDP, 24032 UDP...
- Page 40 Service File Transfer Protocol (FTP) Data FTP Commands Telnet Simple Mail Transfer Protocol (SMTP) Email Domain Name Server (DNS) Trivial File Transfer Protocol (TFTP) finger World Wide Web (HTTP) POP3 Email SUN Remote Procedure Call (RPC) Network News Transfer Protocol (NNTP) Network Time Protocol (NTP) News Simple Management Network Protocol (SNMP)
-
Page 41: Special Ap
3.8.5.3 Special AP This screen enables you to specify special applications, such as games, that require multiple connections that are inhibited by NAT. The special applications profiles are listed in the table at the bottom of the page. Note: When selecting items in the table at the bottom, click anywhere in the item. The line is selected, and the fields automatically load the item's parameters, which you can edit. -
Page 42: Dmz
3.8.5.4 DMZ This screen enables you to create a DMZ for those computers that cannot access Internet applications properly through the router and associated security settings. Note: Any clients added to the DMZ exposes the clients to security risks such as viruses and unauthorized access. -
Page 43: Management
Add: Click to add the rule profile to the table at the bottom of the screen. Update: Click to update information for the rule if you have selected a list item and have made changes. Delete: Select a list item and click Delete to remove the item from the list. New: Click New to erase all fields and enter new information. -
Page 44: Tools
HTTP: Enables you to set up HTTP access for remote management. Enable: Click to enable or disable HTTP access for remote management. Port: Select the port Remote IP Range: Type the start IP and END addresses. Allow to Ping WAN Port: Type a range of router IP addresses that can be pinged from remote locations Enable/Disable Remote IP Range: Type the start IP and END addresses... -
Page 45: Firmware
Save Settings: Click to save the current configuration as a profile that you can load when necessary. Load Settings: Click Browse and go to the location of a stored profile. Click Load to load the profile's settings. Restore Factory Default Settings: Click to restore the default settings. All configuration changes you have made will be lost. -
Page 46: Quick Setup With Wizard
APPENDIX A Quick Setup with Wizard Setup wizard is provided as the part of the web configuration utility. You can simply follow the step- by-step process to get your wireless router configuration ready to run in 6 easy steps by clicking on the “Wizard”... - Page 47 Step2: Choose your time zone Select your time zone from the drop down list. Please click “Next” to continue. Step 3: Set LAN connection and DHCP server Set your IP address and mask. The default IP is 192.168.1.1. If you like to enable DHCP, please click “Enabled”.
- Page 48 Step 4: Set Internet connection Select how the router will set up the Internet connection: Obtained IP automatically; Fixed IP address; PPPoE to obtain IP automatically; PPPoE with a fixed IP address; PPTP. Obtain IP automatically (DHCP client): If you have enabled DHCP server, choose "Obtain IP automatically (DHCP client)" to have the router assign IP addresses automatically.
- Page 49 PPPoE to obtain IP automatically:...
- Page 50 PPPoE with a fixed IP address:...
- Page 51 PPTP:...
- Page 52 Step 5: Set Wireless LAN connection Click “enable” to enable wireless LAN. If you enable the wireless LAN, type the SSID in the text box and select a communications channel. The SSID and channel must be the same as wireless devices attempting communication to the router.
-
Page 53: Appendix B
APPENDIX B Technical Features Physical Interfaces WAN: 1 RJ45 10/100 Base-TX Fast Ethernet LAN: 4 RJ45 10/100 Base-TX Fast Ethernet Wireless 54Mbps (IEEE802.11g) and 11Mbps (IEEE802.11b) 8 Led for easy diagnostic and Reset 802.11b Interface Chipset Atheros™ :AR2112(Radio)+AR2312 Dual antenna: Dipole External removable Antenna and Embedded Antenna Radio Spec. - Page 54 Support Internet Application ICQ, Netmeeting, MS messanger, PCanywhere, mIRC, CuSeeme... Physical and Environmental Power Consumation: (5V ± 5%, 2.4A AC Adapter) Dimensions/Weight : 205mm*115mm*35mm/ 350g Temperature/Humidity: Operating:[0°C to 49°C], Storage:[-20°C to 65°C]: 5-95% (w/out condensing) Package contents I-Fly Wireless Broadband Router CD-ROM containing drivers and the online manual (English, Italian and French) Quick start guide (English and Italian), AC-DC power adapter and CAT-5 LAN cable...
-
Page 55: Appendix C
APPENDIX C Glossary Access Point An interview networking device that seamlessly connects wired and wireless networks Authentication Authentication refers to the verification of a transmitted message’s integrity. DMZ (DeMilitarized Zone) is a part of a network that is located between a secure LAN and an insecure WAN. - Page 56 FTP (File Transfer Protocol) is used to transfer files over a TCP/IP network, and is typically used for transferring large files or uploading the HTML pages for a Web site to the Web server. Gateway Gateways are computers that convert protocols enabling different networks, applications, and operating systems to exchange information.
- Page 57 NAT (Network Address Translation - also known as IP masquerading) enables an organization to present itself to the Internet with one address. NAT converts the address of each LAN node into one IP address for the Internet (and vice versa). NAT also provides a certain amount of security by acting as a firewall by keeping individual IP addresses hidden from the WAN.
- Page 58 RTS (Request To Send) is a signal sent from the transmitting station to the receiving station requesting permission to transmit data. Server Servers are typically powerful and fast machines that store programs and data. The programs and data are shared by client machines (workstations) on the network. SMTP SMTP (Simple Mail Transfer Protocol) is the standard Internet e-mail protocol.
-
Page 59: Appendix D
If you have any problems with the Wireless Router, please consult this manual. If you continue to have problems you should contact the dealer where you bought this ADSL Router. If you have any other questions you can contact the Atlantis Land company directly at the following address:...
