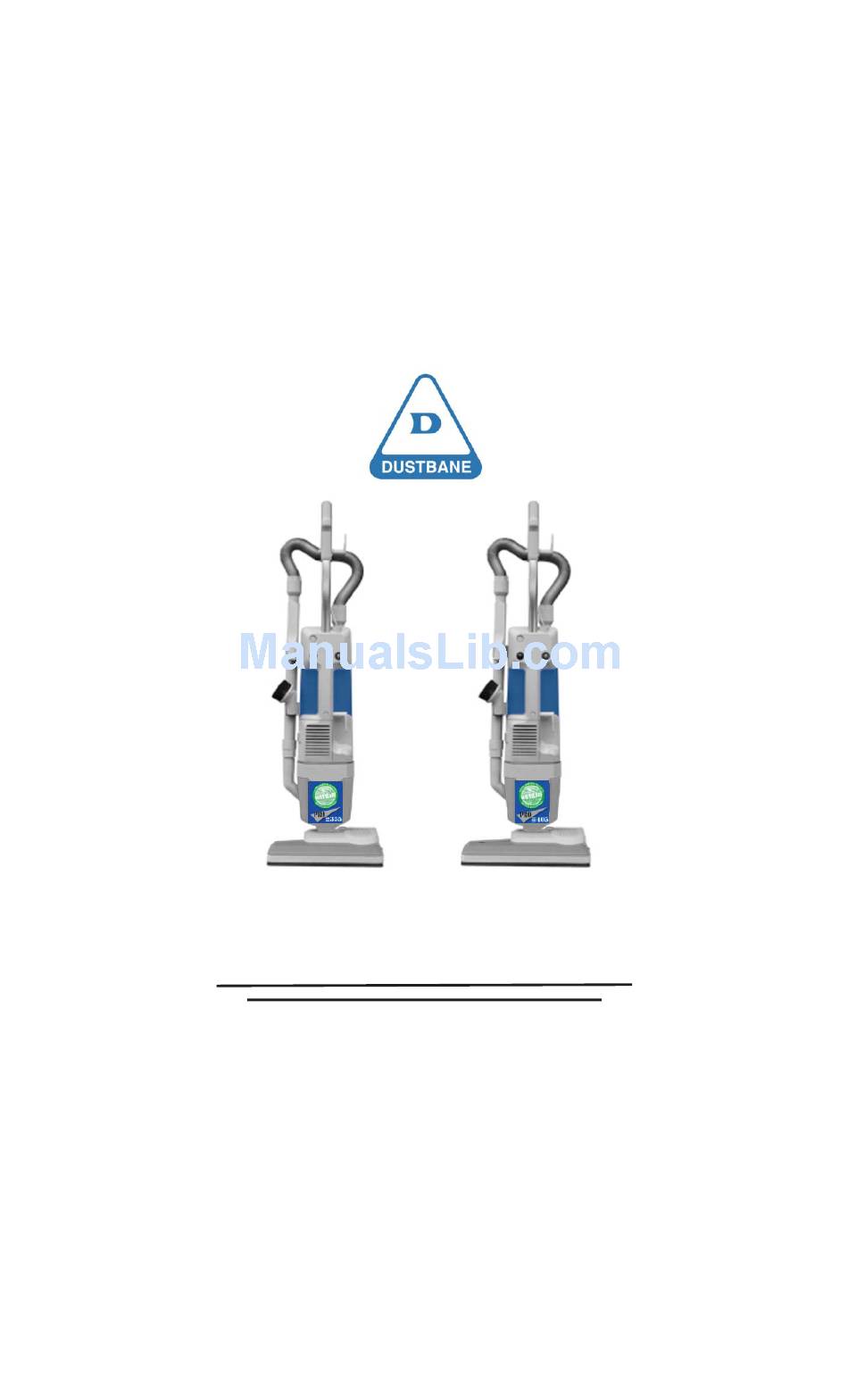

Operation & Parts Manual
Manuel d'opération et des pièces
CODE : 28416
CODE : 28417
Pro Series 355/405
vacuum
Serial #:_______________________
Date of Purchase:________________
More info : www.dustbane.ca

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 355 Pro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dustbane 355 Pro Series

  • Page 1 Operation & Parts Manual Manuel d’opération et des pièces CODE : 28416 CODE : 28417 Pro Series 355/405 vacuum Serial #:_______________________ Date of Purchase:________________ More info : www.dustbane.ca...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING to reduce the risk of fire, electric shock, or injury: 1 Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. 2 Do not use outdoors of on wet surfaces.
  • Page 3: Grounding Instructions

    The suction engine is provided with an automatically reset thermal limiter, which overrides in order to protect the engine from over-heating. It overrides in cases such as overload, full bag, clogging up of filters or of suction piping. In case of override by this device, the suction engine shuts down, and it will take some 10-15 minutes for it to cool off.
  • Page 4 IMPORTANTES INDICATIONS DE SECURITE Dans l’usage d’un appareil électrique, suivre toujours les précautions fondamentales, incluse la suivante: LIRE TOUTES LES INSTRUCTIONS AVANT DE L’EMPLOI AVERTISSEMENT Pour réduire les risques d’incedie, de choc électrique ou de blessure 1 Ne pas laisser l’appareil sans surveillance lorsqu’il est banché. Débrancher lorsque L’appareil n’est pas utilisé...
  • Page 5: Instructions Visant La Mise À La Terre

    Le moteur aspirant est muni d’un dispositif de réglage thermique automatique qui intervient pour protéger le moteur contre la surchauffe excessive. Celui-ci intervient en cas de surcharge, si le sachet est plein ou si les filtres ou les conduits d’aspiration sont bouchés.
  • Page 6 SYSTEM START-UP MODE D’EMPLOI 1 Ergonomic handle 1 Poignée ergonomique 2 Power cord 2 Câble d’alimentation 3 Hose 3 Tuyau flexible 4 Telescoping extension 4 Rallonge télescopique 5 Switch 5 Interrupteur 6 Carrying handle 6 Poignée pour le transport 7 Cord winding device 7 Enrouleur de câble 8 Cover 8 Petite porte...
  • Page 7 MISE EN MARCHE DU BALAI STARTING THE BRUSH Appuyez sur la touche PUSH avec vos pieds Push with the foot the pedal (A) and tilt the et inclinez le corps qui aspire. vacuum-cleaner body. CHECKING THE BRUSH CONTROLE DU BALAI The brush-checking device continuously Le dispositif de contrôle du balai règle de façon monitors the operation of the brush:...
  • Page 8 REMPLACEMENT DU FILTRE REPLACING THE FILTER Faites glisser le support du filtre et rempla- Pull out the filter holder and replace the cez-le ou bien nettoyez-le en le secouant filter, or clean it by tapping it lightly légèrement (veuillez pourvoir à le remplacer (replace it approximately every 20 bags).
  • Page 9: Accessories Provided

    ACCESSORIES PROVIDED ACCESSOIRES COMPRIS 1- Pinceau 1 - Small brush 2- Lance 3- Manchon courbe 2 - Crevice tool 4- Tuyau flexible 3 - Curved sleeve 5- Rallonge extensible 4 - Hose 5 - Telescoping extension SPARE PARTS PIECES DE RECHANGE 1- Filtre Hepa 1 - Hepa filter 2- Parfumeur...
  • Page 10: Electric Diagram

    ELECTRIC DIAGRAM Caution! Any job involving the electric plant must be carried out only by qualified personnel. SCHEMA ELECTRIQUE Attention, les interventions sur l’installation électrique doivent être effectuées par le personnel expert en la matière. SPECIFICATION / DONNEES TECHNIQUES 14” 16”...
  • Page 11 Parts Section Section des pièces...
  • Page 13 PRO 355 & 405 BODY Pos. Code Description 24900 FULL SHELL 24901 SCREW ( W/SET FOR FULL SHELL ) 25103 COMPLETE SHUTTER BLUE 25104 MOTOR SUPPORT 25105 120V VACUUMING ENGINE 25106 MOTOR FRONT RING 24907 SPACER W/CUP 24906 NEOPRENE VAC. WIRING W/CUP 24928 ELECTRONIC CARD 120V 25107...
  • Page 15 PRO 355 BASE Pos. Code Description 24947 Base 355 24948 SCREW ( W/SET FOR VACUUM ACC ) 24949 355 PP COMPLETE ROLLER 24950 POLY-V BELT 25123 355 BLUE CASE 24952 BUMPER 0.58 ( DARK GREY ) 24967 WIRING CARPET-BEATING 24958 LARGE MICROSWITCH COVER 24948 SCREW ( W/SET FOR VACUUM ACC)
  • Page 17 PRO 405 BASE Pos. Code Description 24968 BASE 405 24948 SCREW ( W/SET FOR VACUUM ACC ) 24969 405 PP COMPLETE ROLLER 24950 POLY-V BELT 25128 405 BLUE CASE 24971 BUMPER 0.71 ( DARK GREY ) 24967 WIRING CARPET-BEATING 24958 LARGE MICROSWITCH COVER 24948 SCREW ( W/SET FOR VACUUM ACC)
  • Page 18 OPERATION SECTION ENGLISH If you observe the recommendations listed below, this will ensure maximum performance by the appliance, the longest possible life and a high level of safety. The suction engine is provided with an automatically reset termal limiter, which overrides in order to protect the engine from over-heating.
  • Page 19: System Start-Up

    SYSTEM START-UP 1 Ergonomic handle 2 Power cord 3 Hose 4 Telescoping extension 5 Switch 6 Carryng handle 7 Cord winding device 8 Cover 9 Vent grid 10 Container 11 Engine housing 12 Electric brush 13 Base 14 Hi/Low vac motor switch CONNECTING THE HOSE Insert the rotating sleeve into the bag-holding sleeve, insert the second rotating sleeve into the telescoping element, and hook the hose to the handle.
  • Page 20: Maintenance

    MAINTENANCE REPLACING THE FILTER BAG Remove the cover. Place the dust bag into the container, by inserting the bag-holding sleeve into the dust bag hole and by pushing the safety ring all the way in. If the filter bag is not placed correctly, closing the cover will be impossible. REPLACING THE FILTER Pull out the filter holder and replace the filter, or clean it by tapping it lightly (replace it approximately every 20 bags).
  • Page 21: Specification

    REMOVING THE ELECTRIC BRUSH COVER Unscrew the screws from the bottom and remove the cover. REPLACING THE ELECTRONIC BOARD Slide the board off the guides and detach the connection. Disconnect the supply wires from the terminal and replace the board. DISASSEMBLING THE JOINT Unscrew the case screws.
  • Page 22 SECTION DE L’OPÉRATION FRANÇAIS L’observation des conseils mentionnés ci-dessous garantit un rendement optimal de l’appareil, une durée maximale et une sécu- rité élevée. et ils risquent donc de s’endommager. auprès d’un centre d’assistance autorisé. tion. Le moteur aspirant est muni d’un dispositif de réglage thermique automatique qui intervient pour protéger le moteur contre la surchauffe excessive.
  • Page 23: Mise En Marche

    MISE EN MARCHE 1 Poignée ergonomique 2 Câble d’alimentation 3 Tuyau flexible 4 Rallonge télescopique 5 Interrupteur 6 Poignée pour le transport 7 Enrouleur de câble 8 Petite porte 9 Grille de ventilation 10 Petite caisse 11 Boîtier conteneur du moteur 12 Brosse électrique 13 Base 14 Interrupteur min./max.moteur d’aspiration...
  • Page 24: Entretien

    INDICATEUR DE NIVEAU MAXIMAL DE REMPLISSAGE DU FILTRE Si la petite soupape qui indique que le sachet est plein devient rouge veuillez vérifier : a) si le sachet ramasse-poussières est plein b) si le balai est bouché c) si le tuyau qui aspire est bouché et dans ce cas vous devez éliminer l’obstruction d) si le filtre Hepa est complètement bouché...
  • Page 25: Installation Du Moteur

    ELIMINATION DES OBSTRUCTIONS DU CONDUIT INTERNE Amenez le groupe qui aspire dans la position horizontale, aligné avec la brosse électrique. Enlevez les vis de la base, retirez la base. Enlevez les éléments qui bouchent le conduit par l’intermédiaire d’une petite brosse flexible. Afin de détacher le boîtier conteneur du moteur enlevez la petite porte du sachet en papier, détachez la grille de ventilation et enlevez les quatre vis de la coquille.
  • Page 26: Accessoires Compris

    ACCESSOIRES COMPRIS 1- Pinceau 2- Lance 3- Manchon courbe 4- Tuyau flexible 5- Rallonge extensible PIECES DE RECHANGE 1- Filtre Hepa 2- Parfumeur 3- Sachet filtre 4- Filtre 5- Préfiltre SCHEMA ELECTRIQUE Attention, les interventions sur l’installation électrique doivent être effectuées par le personnel expert en la matière. DONNEES TECHNIQUES 14”...
  • Page 27 Notes...
  • Page 28 25 Pickering Place Ottawa, Ontario K1G 5P4 Phone: 613-745-6861 • 1-800-387-8226 Fax: 613-754-6232 • 1-800-363-5309 w w w . d u s t b a n e . c a...
