23

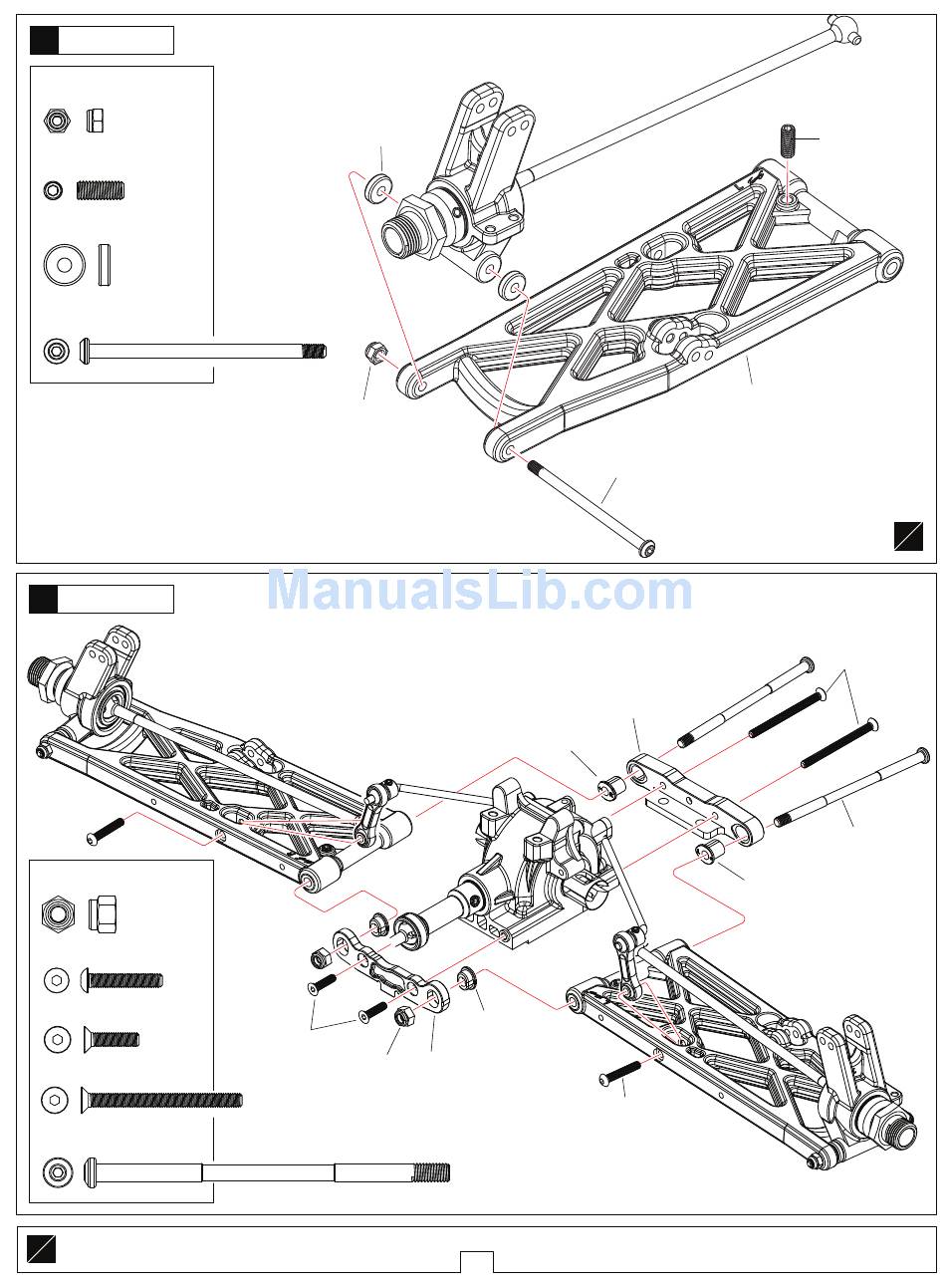

Rear Hub Carrier
Bag
Achsschenkel hinten
T08666 M3 Nylon Nut
Nylon Mutter
..................2
T08675 M4x10 Screw
Schraube
...............2
T08605 3.1x9x2.5 Plastic Washer
Beilagscheibe
..................4
T08646 3x51.5 Arm Pin
Querlenkerwellen Schraube
...............2
24
R
e
r a
S
u
s
p
e
n
s
o i
n
Bag
Hintere Aufhängung
T08666 M4 Nylon Nut
Nylon Mutter
..................2
T08673 M3x16 Screw
Schraube
......2
T08674 M3x12 Screw
Schraube
............2
T08674 M3x35 Screw
Schraube
...............2
T08646 4x77 Arm Pin
Querlenkerwellen Schraube
...............2
Assemble both Left and Right
L
R
Beide Seiten (links/rechts) auf die gleiche Weise montieren
E
-
T08605 3.1x9x2.5
T08666 M3
E
-
T08674 M3x12
T08666 M4
T08646 3x51.5
Rear Arm Mount-R
Querlenkerhalter hinten/hinten
T08767
+1 Degree Bushing-Right
Querlenkereinsatz +1 Grad rechts
T08767
0 Degree Bushing
Querlenkereinsatz 0 Grad
T08765
Rear Arm Mount-F
Querlenkerhalter hinten/vorne
T08673 M3x16
12
TG8002
Rear Lower Arm-Left
Querlenker hinten unten links
T08766
T08767
+1 Degree Bushing-Left
Querlenkereinsatz +1 Grad links
T08675 M4x10
L
R
T08674 M3x35
T08646 4x77
