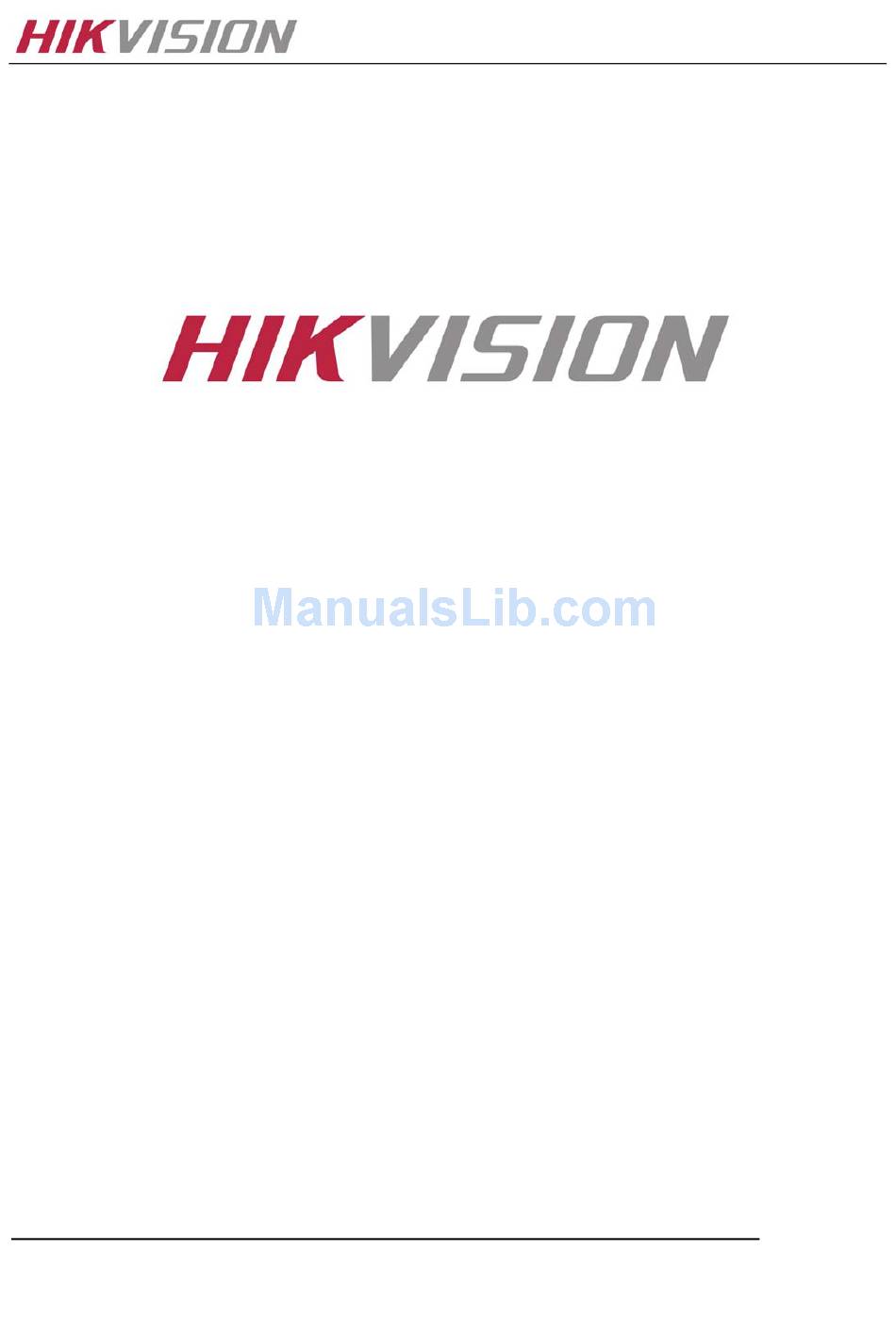

- Page 1 Hikvision Technical Manual DS-2CC511P(N)-A Analog Camera Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved.
- Page 2 It may not be reproduced in whole or in part, in any form, or by any means or be used for any other purpose without prior written consent of HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or...
- Page 3 Hikvision Technical Manual Contents 1. Key Features 2. Specifications 3. Dimension ©2006 – 2010 by HIKVISION. All rights reserved.
-
Page 4: Key Features
Low Illumination: 0.1Lux/F1.2, Color to B/W Auto Switch Auto White Balance, Auto Gain Control, Electronic Shutter Control, and Backlight Compensation Digital Signal Processing Internal Synchronization Advanced Engineering Design, 3-D Rotating, and High Reliability Support 3.5~9mm Auto Iris Lens ©2006 – 2010 by HIKVISION. All rights reserved. -
Page 5: Specifications
S/N Ratio More than 48dB White Balance Auto ON/OFF Power Supply 24VAC / 12VDC, ±10% -10℃ ~ 60℃(14°F ~ 140°F) Working Temperature Power Consumption 3.5W MAX Dimension (mm) φ124 × 109.1 Weight 400g ©2006 – 2010 by HIKVISION. All rights reserved. - Page 6 Hikvision Technical Manual 3. Dimension ©2006 – 2010 by HIKVISION. All rights reserved.
