Summary of Contents for Bowflex treadclimber tc10

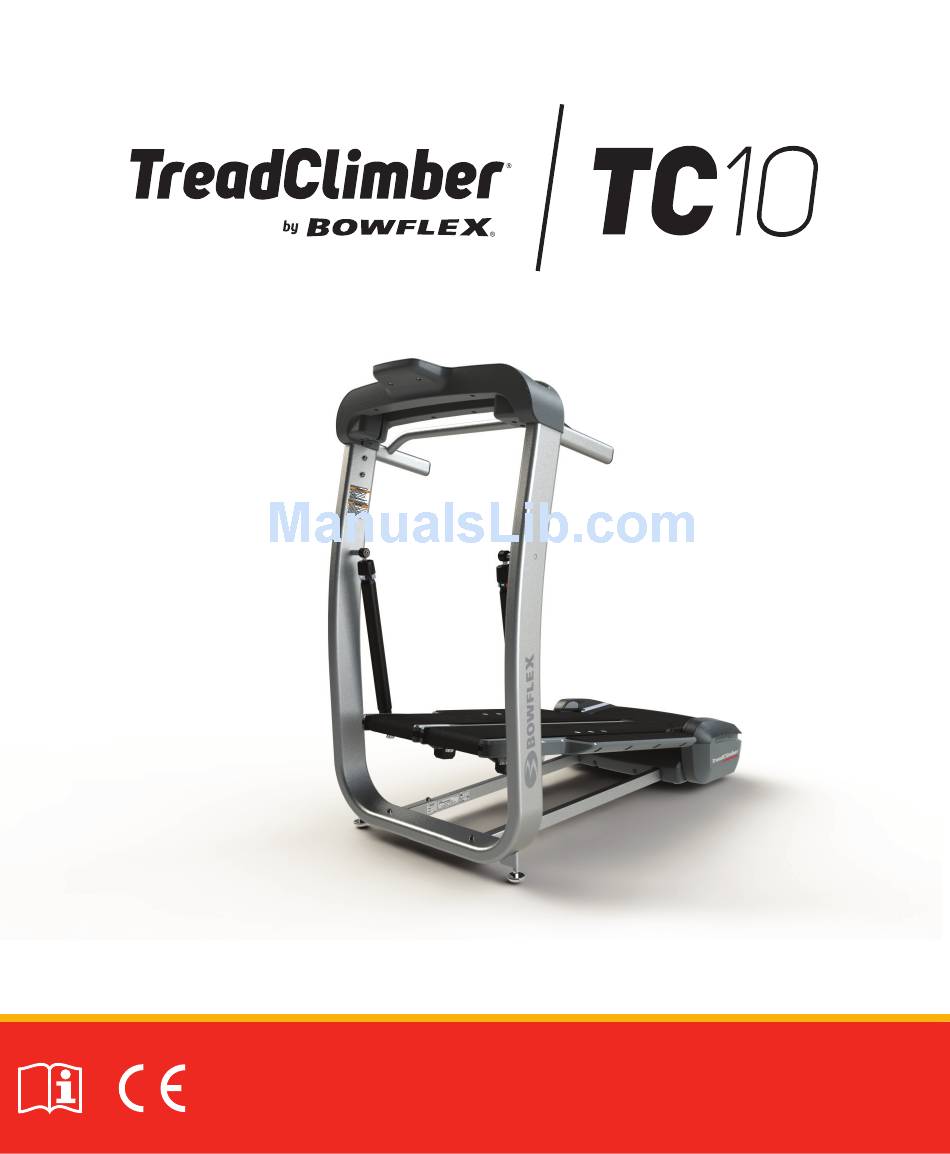

  • Page 1 This product is compliant with the Assembly Manual applicable CE requirements.
  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions ..................... 3 Specifi cations and Tools ....................4 Before Assembly ........................ 5 Parts ..........................6 Hardware ........................... 7 Assembly ........................... 8 Adjustments ........................20 To validate warranty support, keep the original proof of purchase and record the following information: Serial Number __________________________ Date of Purchase ________________________ To register your product warranty, contact your local distributor.
  • Page 3: Important Safety Instructions

    Important Safety Instructions This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Obey the following warnings: Read and understand all Warnings on this machine. Carefully read and understand the Assembly Manual. •...
  • Page 4: Specifi Cations And Tools

    Specifications and Tools Included Not Included 5 mm 13 mm 134 cm ( 53” ) 129 cm ( 51” ) 77 cm ( 30” )
  • Page 5: Before Assembly

    Before Assembly Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard, level surface. Allow a minimum workout area of 256.5 cm x 391 cm ( 101” x 154” ) . Basic Assembly Tips Follow these basic points when you assemble your machine: •...
  • Page 6: Parts

    Parts ( 2 BOXES ) BOX 1 Item Description Item Description Console / Handlebar Assembly Rear Step Upright, Left Rear Cover Cylinder, Spring Document Kit Belt Lubrication Kit Upright, Right Hardware Card Safety Key Bowfl ex Weight Loss Plan Side Motor Cover, Left ®...
  • Page 7: Hardware

    Parts BOX 2 Item Description Item Description Treadle Assembly* Foot Rail Cover, Left Foot Rail Cover, Right *Do not cut Shipping Strap until instructed. Hardware Item Description Item Description Button Head Hex Screw, M8x20 Phillips Self Tapping Screw, M4.0x16 Flat Washer, M8 Wide Leveler Flat Washer, M8 Button Head Hex Screw, M8x25...
  • Page 8: Assembly

    Assembly Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own. Note: This assembly uses parts of the packaging. Do not dispose of until assembly is complete. 1.
  • Page 9 Assembly 2. Attach the Left Upright to the Right Upright Note: Hand tighten hardware.
  • Page 10 Assembly 3. Attach the Foot Rail Covers to the Treadle Assembly Note: Do not crimp the I/O Cable. The Walking Belts can abruptly move. To avoid possible serious injury, keep hands away from the edges of the Walking Belts. Be aware that the Drive Belt and the Walking Belts are connected and when either of these parts move the other does as well.
  • Page 11 Assembly 4. Slide Packaging Boxes under the Base of the Treadle Assembly and the Treadles Note: Use the packaging materials for this step. The Base of the Treadle Assembly should be level, and the Treadles should be securely raised. Boxes should not be in front of the crossbar. The Treadles do not have a locking mechanism and must be supported safely.
  • Page 12 Assembly 5. Run the Console Cable through the Right Upright Note: Do not crimp the I/O Cable.
  • Page 13 Assembly 6. Attach Upright Assembly to Treadle Assembly Note: Be sure to gently pull the I/O Cable as you attach the Upright Assembly. Do not crimp the I/O Cable. Hand tighten the hardware. The Treadles do not have a locking mechanism and must be supported safely. In order to avoid possible serious injury, when inserting the tube ends into the Treadle Assembly be careful to avoid fi...
  • Page 14 Assembly 7. Connect the I/O Cables and then Attach the Console/Handlebar Assembly * Hand tighten this hardware fi rst until inner bolt holes align. Note: Do not crimp the I/O Cables. In order to avoid possible serious injury, when inserting the tube ends into the Base Assembly be careful to avoid fi...
  • Page 15 Assembly 8. Attach Cylinders to Treadles and then Uprights Note: The settings dial on the cylinders must be up, with the white arrow to the inside of the machine. Attach to Treadles before the Uprights. Fully tighten ALL hardware from previous steps and safely remove Packaging Boxes.
  • Page 16 Assembly 9. Remove Hardware and Attach the Rear Cover onto the Treadle Assembly Note: Hardware is pre-installed and not on the Hardware Card ( * ).
  • Page 17 Assembly 10. Safely Tilt the Treadle Assembly and Attach the Left Side Motor Cover The machine may be moved by one or more persons depending on their physical abilities and capacities. Make sure that you and others are all physically fi t and able to move the machine safely. Note: Hardware is pre-installed and not on the Hardware Card.
  • Page 18 Assembly 11. Attach the Rear Step to the Treadle Assembly...
  • Page 19 Assembly 12. Connect Power Cord to Treadle Assembly Note: The TC10 TreadClimber fi tness machine is designed to plug directly into a properly wired and ® grounded outlet. Be sure to use the appropriate Power Cord for your region. 13. Final Inspection Inspect your machine to ensure that all fasteners are tight and components are properly assembled.
  • Page 20: Adjustments

    Adjustments Moving Your Machine The TreadClimber fi tness machine weighs approximately 71.8 kg ® ( 158 lbs ) when fully assembled and requires caution when being moved. Use the Transport Hand Bar found under the front of the machine to move it. To get access to the Transport Hand Bar, turn the Levelers until you have suffi...
  • Page 21 Adjustments Leveling Your Machine Levelers are found on the front of the TreadClimber machine. Make sure the TreadClimber machine is level and ® ® stable before you exercise. To adjust: 1. Loosen the upper locking nut. 2. Turn the leveler to adjust the height. 3.
  • Page 22 [ This page left blank. ]...
  • Page 23 [ This page left blank. ]...
  • Page 24 Nautilus Bowflex Schwinn Universal ® ® ® ® 8002887.071513.B...
