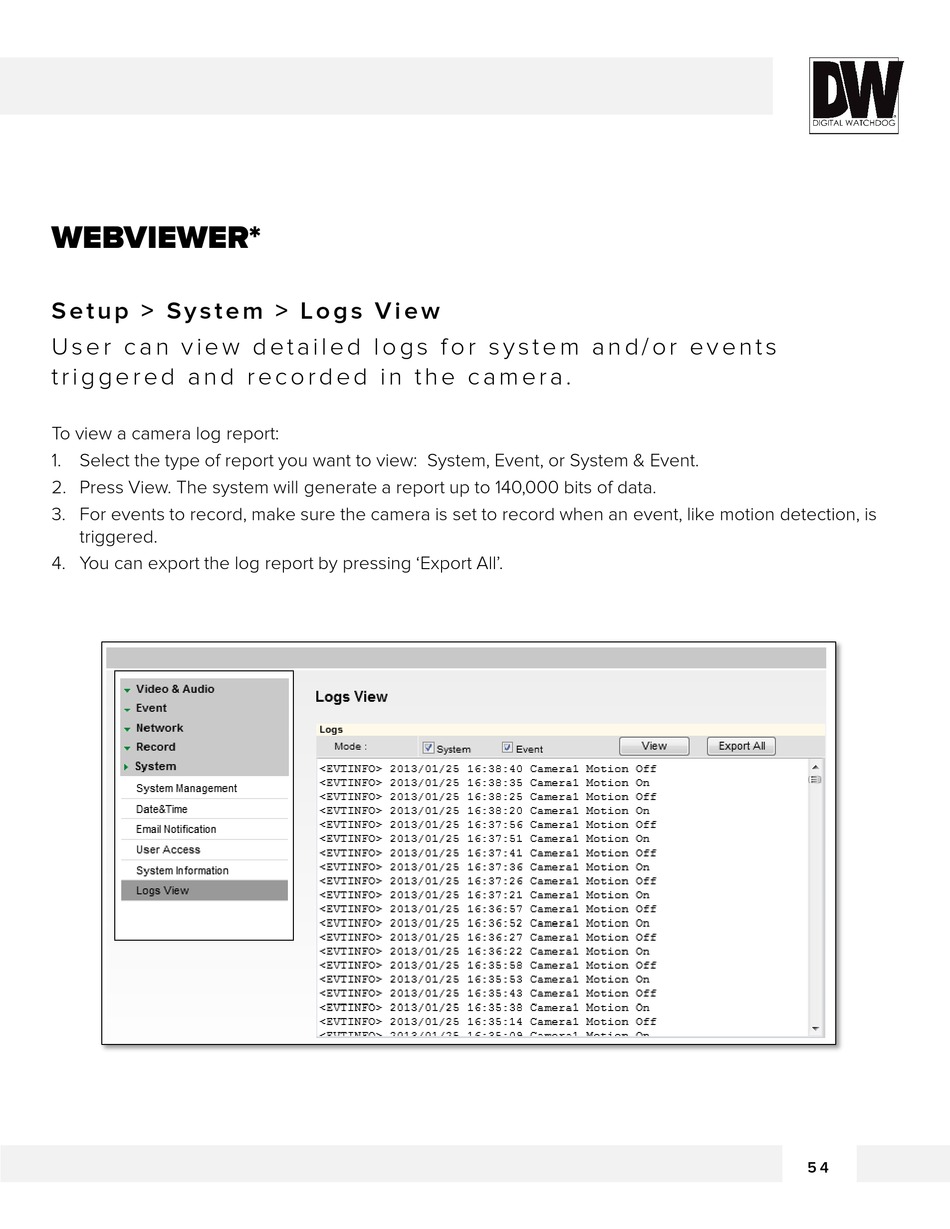

WEBVIEWER*
S e t u p > S y s t e m > L o g s V i e w
U s e r c a n v i e w d e t a i l e d l o g s f o r s y s t e m a n d / o r e v e n t s
t r i g g e r e d a n d r e c o r d e d i n t h e c a m e r a .
To view a camera log report:
1. Select the type of report you want to view: System, Event, or System & Event.
2. Press View. The system will generate a report up to 140,000 bits of data.
3. For events to record, make sure the camera is set to record when an event, like motion detection, is
triggered.
4. You can export the log report by pressing 'Export All'.
5 4
