INSTALLATION*
C a b l i n g

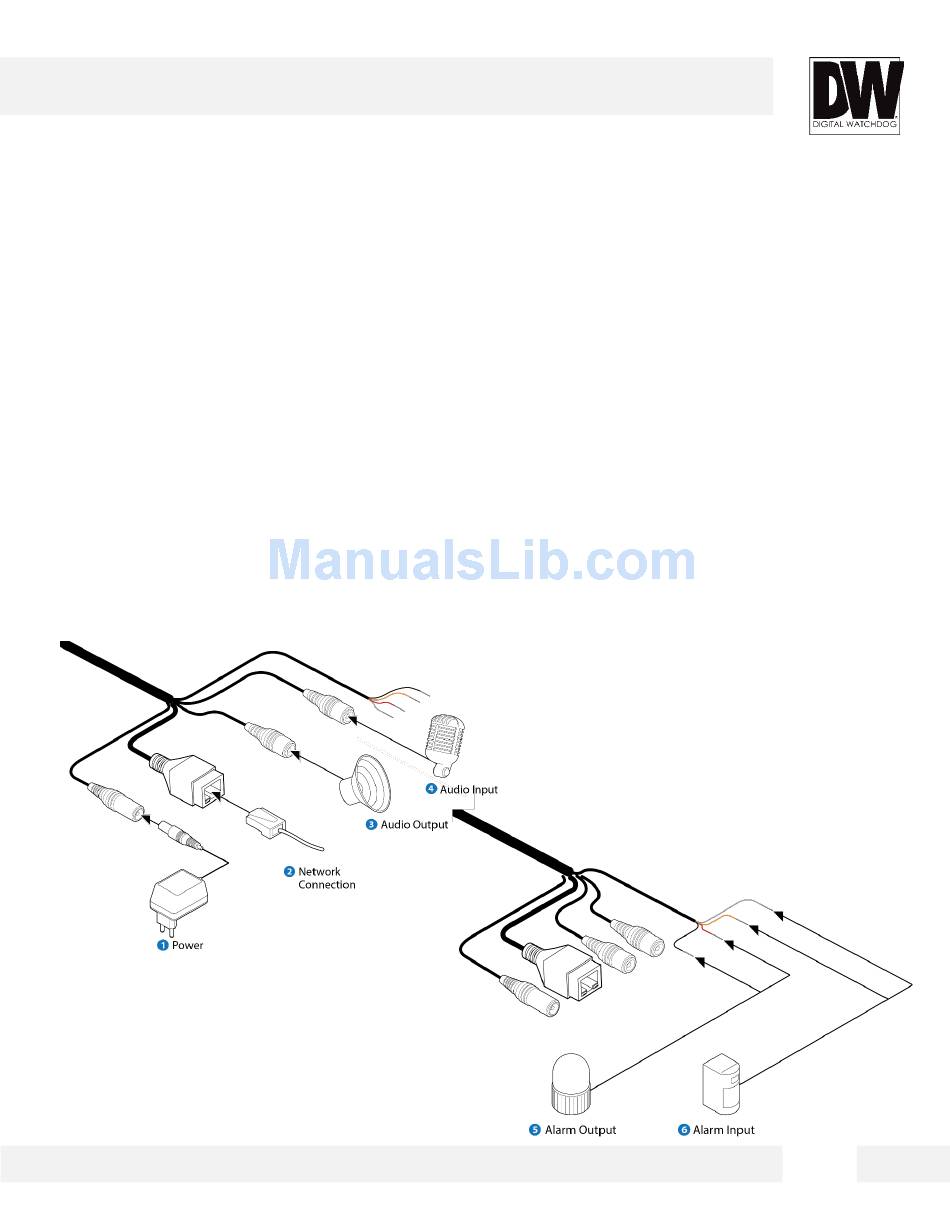

U s e t h e d i a g r a m b e l o w t o c o n n e c t a l l e x t e r n a l d e v i c e s s u c h
a s a l a r m s , s e n s o r s , a n d a u d i o , t o t h e c a m e r a .
1.
Network Connection: Connect the camera to your network using an RJ59 cable.
2.
Audio Input: Connect the camera to an audio input source such a microphone.
3.
Audio Output: Connect the camera to an audio output such as speakers.
4.
Alarm Input: Connect the camera to an alarm input source such as a sensor.
5.
Alarm Output: Connect the camera to an alarm output source such as an alarm, door lock, etc.
6.
Power: If PoE switch is not available (See page 9), use DV12V power supply to power the camera.
