SECTION 3.

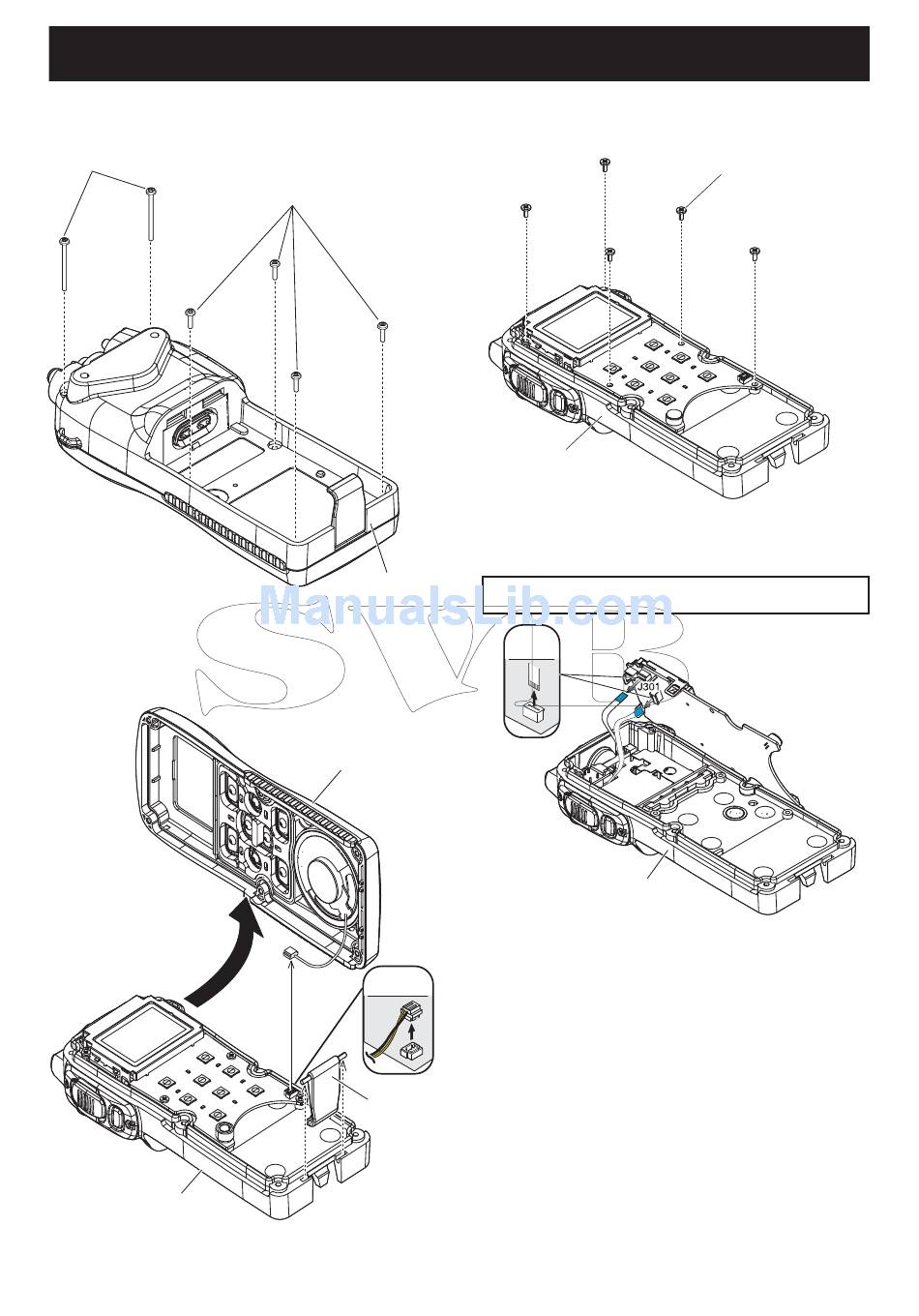

1. Removing the Front panel

1) Remove 6 screws from the rear panel.
Screw×2
2) Disconnect the speaker cable from the MAIN UNIT
and remove the front pannel form rear. (The lock
plate is simultaneously come off.)
J251
CHASSIS
DISASSEMBLY INSTRUCTION
Screw×4
REAR PANEL
FRONT PANEL
J251
SPEAKER
CABLE
J251
J251 J251
LOCK PLATE

2. Removing the MAIN UNIT

1) Remove 5 screws from the MAIN UNIT.
CHASSIS
2) Disconnect 2 fl at cables from the MAIN UNIT.
3) Remove the MAIN UNIT from the CHASSIS.
BE CAREFUL about the fl at cable and connector when
separating the MAIN UNIT from the CHASSIS.
FLAT
CABLE
RF
CHASSIS
3 - 1
Screw×5
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
J300
MAIN UNIT
UNIT
