Summary of Contents for Grundig GDR740DABER

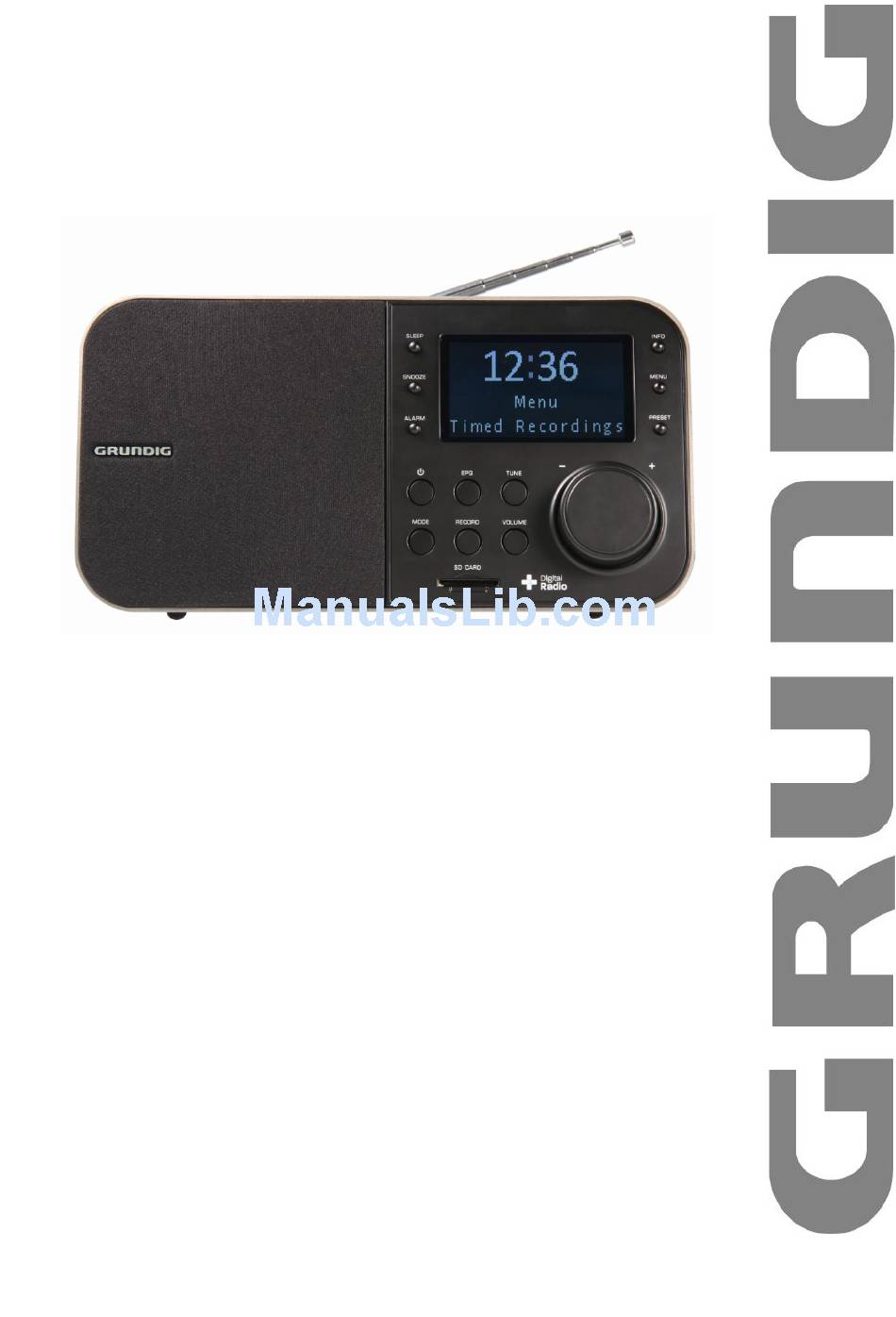

- Page 1 DAB+ DIGITAL RADIO WITH EPG AND RECORD GDR740DABER Toll Free Warranty and Service: 1800 509 394 The Gold Technical Support Line: 1902 215 259 (Charges will apply at $2.95 per minute for gold technical support only)
- Page 2 Grundig Replay Introduction Thank you for buying this GRUNDIG product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take the time to read these instructions.
-
Page 3: Safety Instructions
Grundig Replay Safety Instructions Ensure that you read all of the safety instructions before operating this unit. Safety Considerations Ensure that the power cable and other connected cables are protected and are positioned so that they are not likely to be walked on, pinched or damaged. -
Page 4: Table Of Contents
Grundig Replay Contents Safety Instructions …..…………………………………………………………………………….……………..Contents …..……..…..……………………………………………………………..…………….……………..Your DAB+ Radio …..…………………………………………………………………………….……………..Remote Control………………………………………………………………………..…………….……………. What is DAB+………………………………………………………………………..…………….……………... Getting Started …………………………………………………………………….……………...……………… DAB+ Radio...……………………………...…………………………………………….……………...…………. 9 - 15 DAB+ and FM Radio...……………………….……..…………………………………………….…………….… 16-17 FM Radio …………………………………………………………………………….……………...…………….. 17-19 AUX- IN Mode...………..………………………………………………………….……………...……………… SD Mode…………………………………………………………………………………………………………… System Setup…………………………………………………………………….……………...……………….. -
Page 5: Your Dab+ Radio
Grundig Replay Your DAB+ Radio Front Back Button & sockets Descriptions Press the Standby Button to turn the radio on or off. STANDBY Button MODE Button Press the Mode Button to switch between Aux-In, SD Card, DAB+ and FM Radio modes. -
Page 6: Remote Control
Grundig Replay Remote Control Button Descriptions Press the Standby Button to turn the radio on or off. STANDBY Button Navigation and Select Press the Navigation Buttons (Left and Right Arrows) to browse through the onscreen menu or stations. Press the Select Button to confirm any settings or station selections. -
Page 7: What Is Dab
Grundig Replay What is DAB+ DAB+ was developed in Europe by a consortium of broadcasters and manufacturers. DAB+ uses digital compression techniques to transform the source material, i.e. music and speech, into better quality audio. Interference Free Reception Analogue systems suffer from an effect called “multipath distortion”. This is because waves do not behave in an orderly fashion, but bounce and reflect off buildings etc. -
Page 8: Getting Started
Grundig Replay Getting Started Carefully remove your DAB+ Receiver from the box. You may wish to keep the packaging for future use. In the Box Inside the box you will find: DAB+ Radio (Main Unit) Remote Control ... -
Page 9: Dab+ Radio
Grundig Replay DAB+ Radio Turning on your DAB+ Radio Connect the Power Adaptor to the DC Socket on the back of the unit. Then insert the Power Adaptor into the desired wall outlet. Press the Button to turn on the unit or press again when you wish to turn off the radio. Then carefully extend antenna for the best possible reception. -
Page 10: Scanning And Storing Stations
Grundig Replay DAB+ Radio Scanning and Storing Stations Note: with a DAB+ radio, it’s a good idea to conduct a station scan every now and then to make sure that you have the most up to date station list stored in the memory of your radio. As new stations are often added or replaced. - Page 11 Grundig Replay DAB+ Radio Dynamic Label Segment (DLS): DLS is the scrolling text information supplied by the DAB+ station or by the broadcaster. Program Type (PTY): This is a description of the type of program provided by the DAB+ station or by broadcaster.
- Page 12 Grundig Replay DAB+ Radio DAB+ Menu Options...
-
Page 13: Timed Recording
Card. The minimum memory requirement for the SD Card is 1 GB. We recommend using a card with more than 1 GB of free space. Your Grundig Replay Radio has three recording timers, which can be set to activate at different times throughout the day and on up to five different day options. - Page 14 Grundig Replay DAB+ Radio 1. To conduct a timed recording, insert your SD Card into the SD Card Socket in the front of your radio. Your SD Card must have sufficient capacity for the required recording (approximately 64MB per 1 hour at 128 kbits/sec, or 2 hours at 64 kbits/sec).
- Page 15 Grundig Replay DAB+ Radio Note: if the set recording time is prior to the current time, then you will receive a ‘Set Time Error’. The start recording time must be after the current time. You cannot record programs that have already aired.
-
Page 16: Dab+ And Fm Radio
Duration Time‟ will be displayed on the screen. Station Presets The Grundig Replay Radio allows you to set up to 24 (12 DAB+ & 12 FM) Station Presets. This means you can easily access all of your favourite stations at a touch of a button. -
Page 17: Fm Radio
Grundig Replay DAB+ and FM Radio Playing a Preset Station 1. To play a stored preset station, press the Mode Button to enter the relevant DAB+ or FM mode. 2. Press the Preset Button to enter the Preset Mode and then use the Select Knob to scroll through the preset numbers and then press the Select Button to confirm. - Page 18 Grundig Replay FM Radio FM Menu Options...
- Page 19 Grundig Replay FM Radio Station Information in FM Mode Whilst listening to your desired FM Radio program, you can browse the station information by pressing the Info Button repeatedly. Please refer to the flow chart for direction. Radio Text This is scrolling text information supplied by the FM station. It may comprise of information about music titles or details of the program provided by the broadcaster.
-
Page 20: Aux In Mode
Grundig Replay AUX IN Mode Switching to AUX IN Mode Your Replay Radio has an auxiliary audio input which allows you to connect your external music devices (MP3 Players, iPod, iPhone or other devices) to your radio and play all of your favourite music. -
Page 21: System Setup
Grundig Replay System Setup Sleep Function 1. The Sleep Function allows you to set a period of time after which the unit will turn to standby. To set the sleep time, press the Sleep Button and then turn the Select Knob to define the sleep period. You can set a sleep time of 0 –... - Page 22 System Setup Date and Time When you turn on your Grundig DAB+ Radio, it will automatically set the date and time from the DAB+ broadcaster. If you wish to set the time manually, follow the below sets. 1. To access the Time Menu, press the Menu Button and then turn the Select Knob to scroll through and find the Time Menu.
- Page 23 Grundig Replay System Setup Alarm Note: Before you set the Alarm, make sure the clock time has been set correctly. . 1. To set the Alarm, press the Alarm Button to enter alarm mode. Press this Button repeatedly to scroll through;...
- Page 24 Grundig Replay System Setup System Setup 7. Once you have set the time the final option is to set the Alarm Frequency. You can set the alarm to Once, Weekdays, Weekends and Daily. Just turn the Select Knob and then press to confirm.
-
Page 25: System Setup
Grundig Replay System Setup Scroll through the options and you can select Backlight for Power on or Backlight for Standby Mode. This will change the light level being used by the display. You can select between High, Medium and Low. Use the Select Know to scroll through the option and press the Select Button to confirm the desired setting. -
Page 26: Troubleshooting And Technical Specification
Grundig Replay Troubleshooting If a fault occurs, first check the points listed below before taking the radio for repair. If you are unable to solve a problem by following the below hints we suggest you consult you retailer or service professional. -
Page 27: Warranty
In the unlikely event that your product fails to work normally, please contact the GRUNDIG Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. - Page 28 Grundig Replay PO BOX 6287 Silverwater NSW 1811 www.grundig.net.au...
