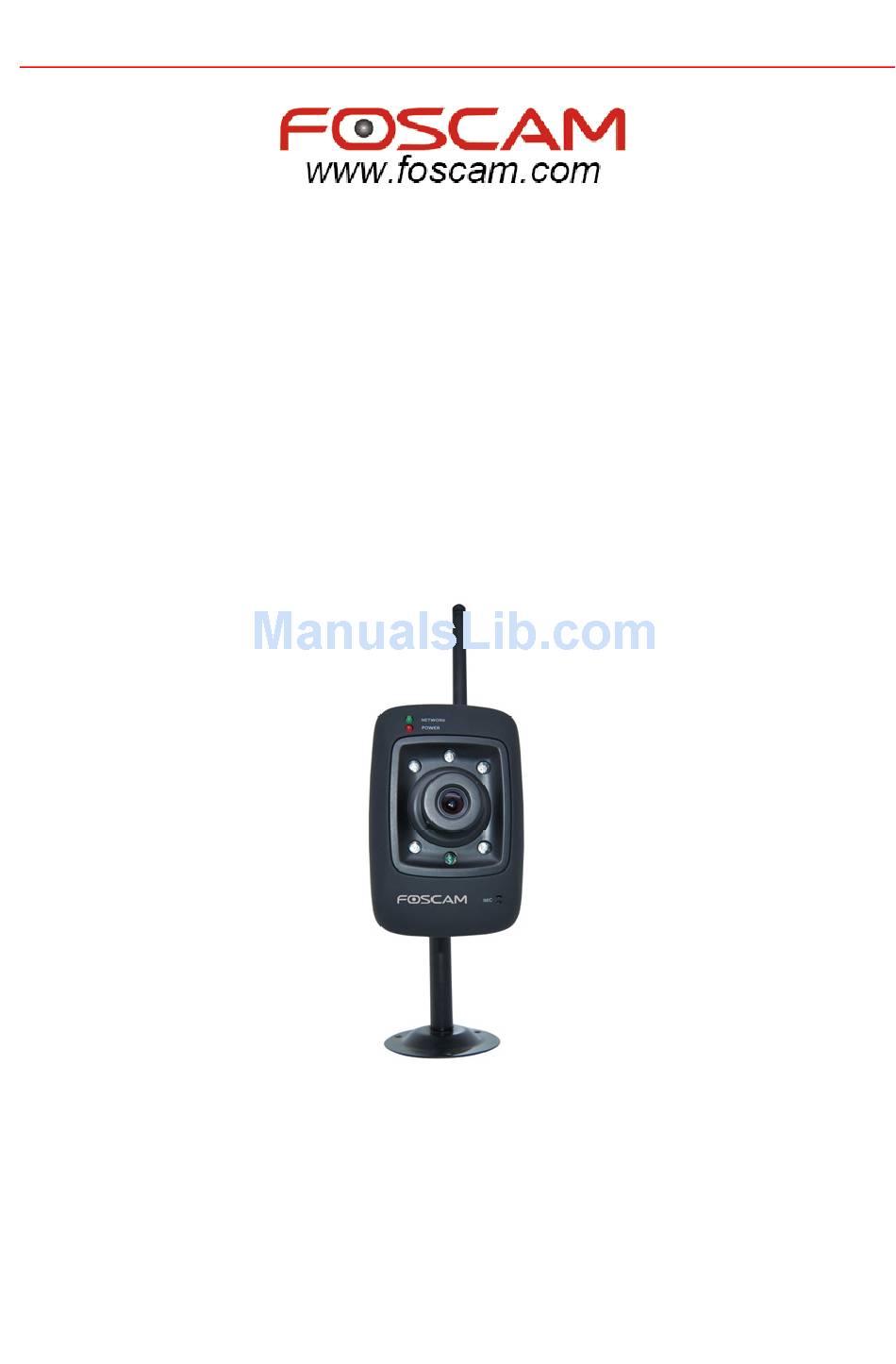

Page 1: Quick Installation Guide
IP Wireless / Wired Camera Quick Installation Guide (For Mac OS) FI8909/FI8909W ShenZhen Foscam Intelligent Technology Co., Ltd... -
Page 2: Packing List
FI8909/FI8909W Quick Installation Guide Quick Installation Guide-For MAC users Packing List 1) IP CAMERA X 1 2) Wi-Fi Antenna (only available for wireless model) 3) DC Power Supply X 1 4) Network Cable X 1 5) Mounting bracket ×1 6) CD X 1 (Include user manual、IP camera tool) - Page 3 FI8909/FI8909W Quick Installation Guide Figure 1.0 Connect the Antenna. Screw the antenna to the back of the camera, make sure it attached well. Figure 1.1 Plug the network cable and power. Use network cable connects with the camera and your router. Plug in the power.
-
Page 4: Software Installation
FI8909/FI8909W Quick Installation Guide Figure 1.2 2 Software Installation Please put the small CD in your CD driver of your laptop and find the folder “For MAC”, then open the folder “IP Camera Tool”. Copy the IP camera tool to your MAC and you can use the tool. - Page 5 FI8909/FI8909W Quick Installation Guide Default user is admin No password Choose here to login Figure 1.4 Fill in user name and password and choose the second login. Figure 1.5 The browser will prompt you enter the camera’s user name and password. Please fill in admin and choose Log in.
-
Page 6: Wireless Lan Settings
FI8909/FI8909W Quick Installation Guide Figure 1.6 Click Live Video. You can see living video. Figure 1.7 4 Wireless LAN Settings Please choose Device Management and click Wireless LAN Settings. Then choose Using Wireless LAN. Click Scan button and the camera will detect WIFI device around it. - Page 7 FI8909/FI8909W Quick Installation Guide Figure 1.8 If the camera could not find some WIFI device, please click the scan button again. Make sure that the time between the first scan and the second scan is more than 1~2 minute. Figure 1.9 (2) Click the SSID of your router in the list, the corresponding information (SSID &...
- Page 8 FI8909/FI8909W Quick Installation Guide Make sure that SSID, Encryption and share key are exactly the same with your router. Figure 2.1 Figure 2.2 Please click Submit after finish these settings, the camera will reboot. Plug out the network cable after you click submit about 10 seconds.
-
Page 9: Ddns Service Settings
FI8909/FI8909W Quick Installation Guide The camera will work on WIFI after reboot. Note: If your camera could not connect WIFI, please see FAQ in user manual. 5 DDNS Service Settings 5.1 Static IP user Static IP users need not set DDNS service settings for remote access. When finished the connection of camera in LAN and port forwarding. - Page 10 FI8909/FI8909W Quick Installation Guide Enter WAN IP address and port number in the browser to login the camera. For example: Http:// 183.37.28.254:85 Note: Make sure the Port mapping is success. You can do port mapping by two ways. Enter setting page of the router which camera connect with to enable UPNP function.
- Page 11 FI8909/FI8909W Quick Installation Guide Here fill in a name and choose dyndns.org Your current internet IP Figure 2.5 Then choose Add To Cart. Click here after you finish the settings above Figure 2.6 Set the following information as the picture below.
- Page 12 FI8909/FI8909W Quick Installation Guide Fill in user name,password and email address Click here to create account Figure 2.7 The website will send you an email to your mailbox just set. Figure 2.8 Please click the link in your email to activate your account.
- Page 13 FI8909/FI8909W Quick Installation Guide Figure 2.9 You will see the following picture. Click Activate services>> Click here to activate services Figure 3.0 All the settings are finished until you see the following picture. (Figure 3.2) You can see your host name in the list.
- Page 14 FI8909/FI8909W Quick Installation Guide Here make sure that your camera is in the same subnet as your router. In other words, keep the first three sections the same with your router or your computer. Gateway is your router’s LAN IP. You can find DNS server in your router, if you don’t know the DNS server;...
- Page 15 FI8909/FI8909W Quick Installation Guide Figure 3.5 You can also choose port range forwarding. In order to forward the port successfully, we recommend you can set both of the start port and end port as the same port number. Add the camera’s LAN IP and port (Figure 3.3) in the list of port forwarding page.
- Page 16 FI8909/FI8909W Quick Installation Guide Use DDNS name and port to login Figure 3.7 Conclusion Other detail settings, please consult user manual. ShenZhen Foscam Intelligent Technology Co., Ltd www.foscam.com - 15 -...
