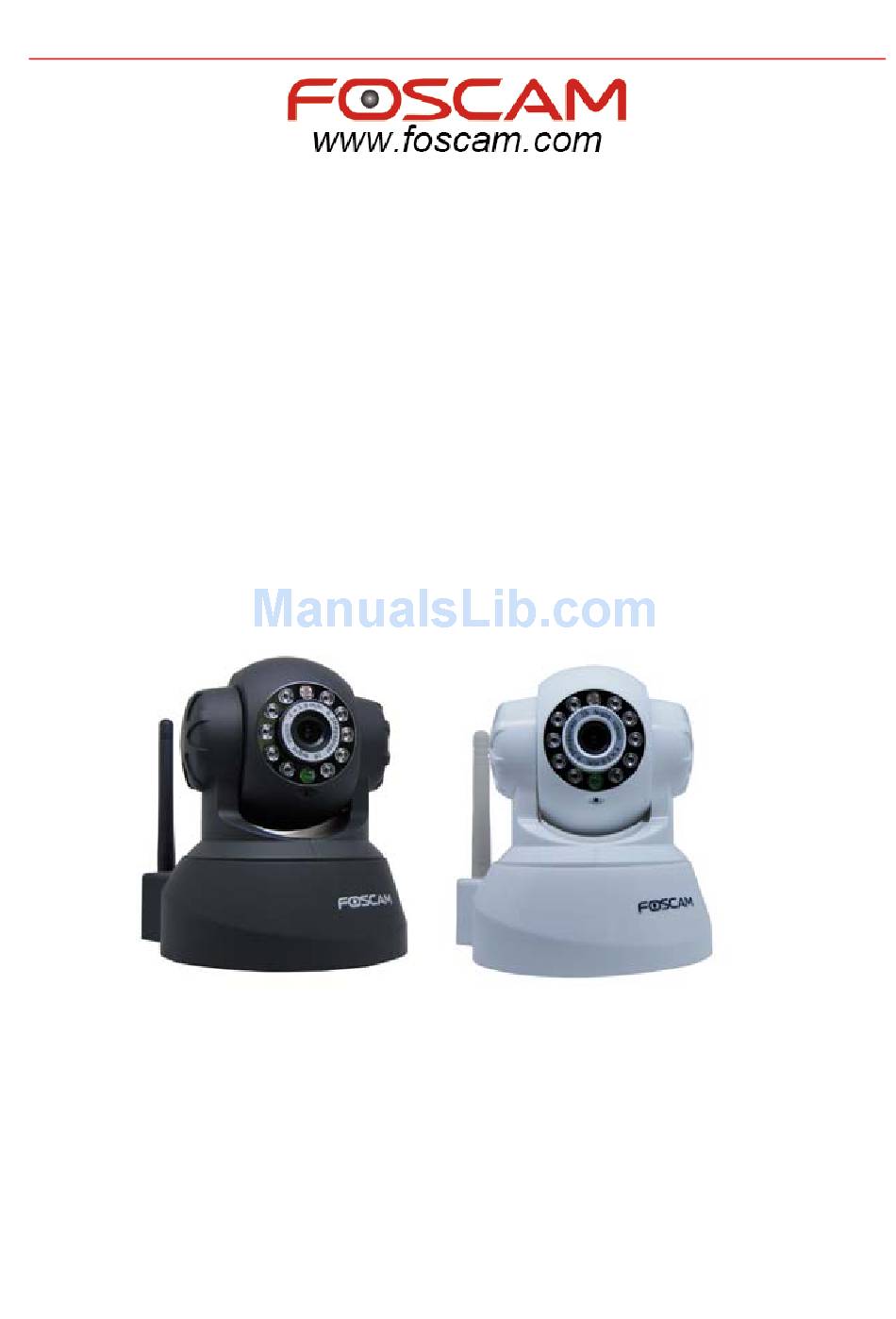

Page 1: Quick Installation Guide
IP Wireless / Wired Camera Quick Installation Guide (For Windows OS) Model:FI8908W Model:FI8908W Color: Black Color: White ShenZhen Foscam Intelligent Technology Co., Ltd... -
Page 2: Packing List
FI8908W Quick Installation Guide Quick Installation Guide Packing List 1) IP CAMERA X 1 2) Wi-Fi Antenna (only available for wireless model) 3) DC Power Supply X 1 4) Network Cable X 1 5) Mounting bracket ×1 6) CD X 1 (Include user manual、IP camera tool) - Page 3 FI8908W Quick Installation Guide Figure 1.0 Connect the Antenna. Screw the antenna to the back of the camera, make sure it attached well. Figure 1.1 Plug the network cable and power. Use network cable connects with the camera and your router. Plug in the power.
-
Page 4: Software Installation
FI8908W Quick Installation Guide 2 Software Installation Put the small CD in your CD driver of your computer and find the folder “For Windows”, open it and choose IP Camera Tool. Double click IPCamSetup.exe and install the software as instruction. - Page 5 FI8908W Quick Installation Guide Figure 1.5 You can find the icon on the desktop after you install the IP camera tool. 3 Login the camera Dbclick the IP Camera Tool and you could see the following picture. Figure 1.6 The IP camera tool could find the cam’s IP automatically after you plug the network cable.
- Page 6 FI8908W Quick Installation Guide Figure 1.7 Note: If you use IE browser, please choose the first login mode (ActiveX Mode) to login. If you use other browsers, such as Firefox, safari or Google chrome, Please choose the second login mode (Server Push Mode) to login.
-
Page 7: Wireless Lan Settings
FI8908W Quick Installation Guide Figure 1.8 If you could not see living video, Please make sure allow the activeX running when it prompts you. (details: see user manual) If you only see a black screen with a red cross in the center, Please change a port number to try, do not use port 80. - Page 8 FI8908W Quick Installation Guide Figure 2.0 Figure 2.1 www.foscam.com - 7 -...
-
Page 9: Ddns Service Settings
FI8908W Quick Installation Guide Figure 2.2 Please click Submit after finish these settings, the camera will reboot. Plug out the network cable after you click submit about 10 seconds. The camera will work on WIFI after reboot. Note: If your camera could not connect WIFI, please see FAQ in user manual. - Page 10 FI8908W Quick Installation Guide name and password for login the router from the network administrator, Enter the LAN IP address of the router (LINKSYS WRT54G, such as: default LAN IP is 192.168.1.1) in the address bar of the IE to login the router;...
- Page 11 FI8908W Quick Installation Guide Figure 2.4 Please set as the following picture. Here fill in a name and choose dyndns.org Your current internet IP Figure 2.5 Then choose Add To Cart. www.foscam.com - 10 -...
- Page 12 FI8908W Quick Installation Guide Click here after you finish the settings above Figure 2.6 Set the following information as the picture below. Fill in user name,password and email address Click here to create account Figure 2.7 The website will send you an email to your mailbox just set.
- Page 13 FI8908W Quick Installation Guide Figure 2.8 Please click the link in your email to activate your account. Or copy the link and paste it to IE or other browser you use to activate the account. Make sure that your account was activated or DDNS settings will be failed.
- Page 14 FI8908W Quick Installation Guide All the settings are finished until you see the following picture. (Figure 3.2) You can see your host name in the list. Please remember the host name, user name and password; they are needed when you set DDNS service settings of your camera.
- Page 15 FI8908W Quick Installation Guide get from the dyndns website. Figure 3.3 Please click submit after fill in all the information. The camera will reboot. Please login in the camera again to check if DDNS settings is succeed. Make sure DDNS succeed Figure 3.4...
- Page 16 FI8908W Quick Installation Guide You can also choose port range forwarding. In order to forward the port successfully, we recommend you can set both of the start port and end port as the same port number. Add the camera’s LAN IP and port (Figure 3.3) in the list of port forwarding page.
- Page 17 FI8908W Quick Installation Guide Other detail settings, please consult user manual. ShenZhen Foscam Intelligent Technology Co., Ltd www.foscam.com - 16 -...
