Page 1: Quick Installation Guide

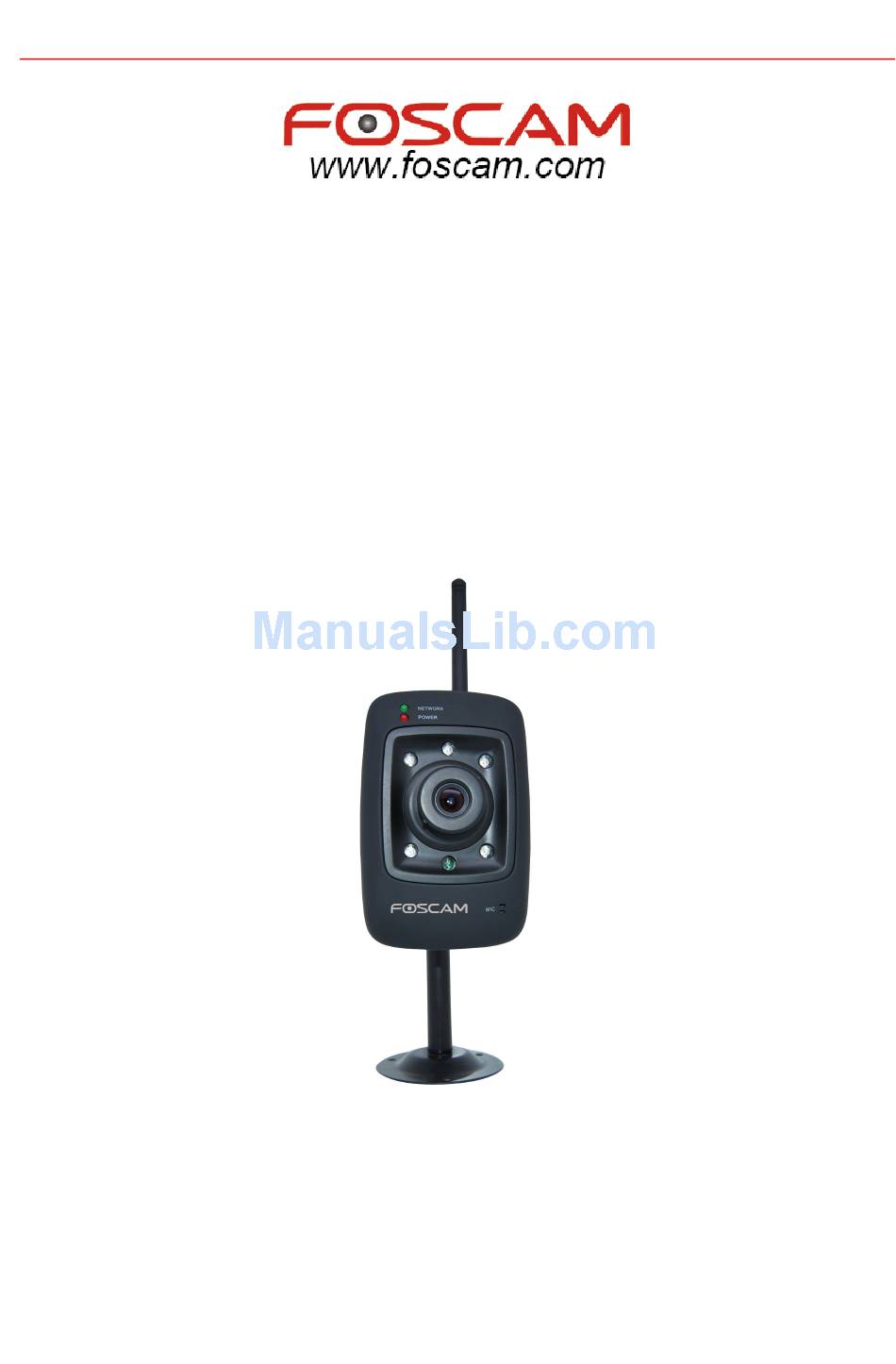

V38.01 IP Wireless / Wired Camera Quick Installation Guide (For Windows OS) FI8909/FI8909W ShenZhen Foscam Intelligent Technology Co., Ltd... -
Page 2: Packing List
FI8909/FI8909W Quick Installation Guide Quick Installation Guide Packing List 1) IP CAMERA X 1 2) Wi-Fi Antenna (only available for wireless model) 3) DC Power Supply X 1 4) Network Cable X 1 5) Mounting bracket ×1 6) CD X 1 (Includes user manual、IP camera tool) -
Page 3: Software Installation
FI8909/FI8909W Quick Installation Guide Connect the antenna. Screw the antenna to the back of the camera, make sure it is attached securely. Figure 1.1 Plug the network cable and power. Connect the network cable to your camera and to your router. Plug in the power. - Page 4 FI8909/FI8909W Quick Installation Guide Figure 1.3 Click Next to complete the software installation. Figure 1.4 www.foscam.com - 3 -...
- Page 5 FI8909/FI8909W Quick Installation Guide Figure 1.5 An icon will appear on your desktop after the IP Camera Tool software installation has successfully completed. 3 Login the camera Double click the IP Camera Tool icon and the following screen should appear.
- Page 6 FI8909/FI8909W Quick Installation Guide If you use IE browser,choose here to login If you use Firefox, Google Chrome, Safari, choose here to login Figure 1.7 Note: If you use IE browser, please choose the first login mode (ActiveX Mode) to login. If you use other browsers, such as Firefox, Safari or Google Chrome, please choose the second login mode (Server Push Mode) to login.
-
Page 7: Wireless Lan Settings
FI8909/FI8909W Quick Installation Guide If you are unable to see a live video, please make sure to allow the activeX running when it prompts you. (for more details: see user manual) If you only see a black screen with a red cross in the center, please try another port number instead of the default “port 80”. - Page 8 FI8909/FI8909W Quick Installation Guide Figure 2.0 Figure 2.1 www.foscam.com - 7 -...
-
Page 9: Ddns Service Settings
FI8909/FI8909W Quick Installation Guide Figure 2.2 (3) Please click on the Submit button after all settings have been entered, the camera will reboot. After the camera has completed the reboot process, wait 10 seconds and disconnect the network cable. The camera should work through your wireless router. - Page 10 FI8909/FI8909W Quick Installation Guide Figure 2.3 Obtain the WAN IP address from the router You can find the WAN IP from your router. Normally, it is in system status. For example, here are the steps for the LINKSYS WRT54G router:...
- Page 11 FI8909/FI8909W Quick Installation Guide Note: If you plug the camera in a router, it will have dynamic IP address and you need to set DDNS service settings to view it remotely. 5.2 How to configure DDNS Service Settings (For dynamic IP...
- Page 12 FI8909/FI8909W Quick Installation Guide Then choose Add To Cart. Click here after you finish the settings above Figure 2.6 Set the following information as the picture below. Fill in user name,password and email address Click here to create account Figure 2.7 The website will send you an email to your mailbox to activate your account.
- Page 13 FI8909/FI8909W Quick Installation Guide Figure 2.8 Click the link in your email to activate your account. You may copy the link and paste it to IE or other browser you use to activate the account. Make sure that your account was activated or DDNS settings will fail.
- Page 14 FI8909/FI8909W Quick Installation Guide Figure 3.1 (2) Basic Network Settings A static IP for the camera is needed when configuring the DDNS service settings. Login your camera and set basic network settings as the picture below. Figure 3.2 Make sure your camera is in the same subnet as your router. In other words, keep the first three sections the same as your router or your computer.
- Page 15 FI8909/FI8909W Quick Installation Guide Figure 3.3 Click Submit after entering in all the information. The camera will reboot. Login the camera again to check if the DDNS settings show “Succeed”. Make sure DDNS succeeded Figure 3.4 How to configure port forwarding.
- Page 16 FI8909/FI8909W Quick Installation Guide Figure 3.5 You can also choose port range forwarding. In order to forward the port successfully, we recommend you set both of the start port and end port as the same port number. Add the camera’s LAN IP and port (Figure 3.2) in the list of port forwarding page.
- Page 17 FI8909/FI8909W Quick Installation Guide Use DDNS name and port to login Figure 3.7 Conclusion Other detail settings, please consult the user manual. ShenZhen Foscam Intelligent Technology Co., Ltd www.foscam.com - 16 -...
