Hikvision Technical Manual
Network Camera
Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ds-2cd852f and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION ds-2cd852f

Summary of Contents for HIKVISION ds-2cd852f

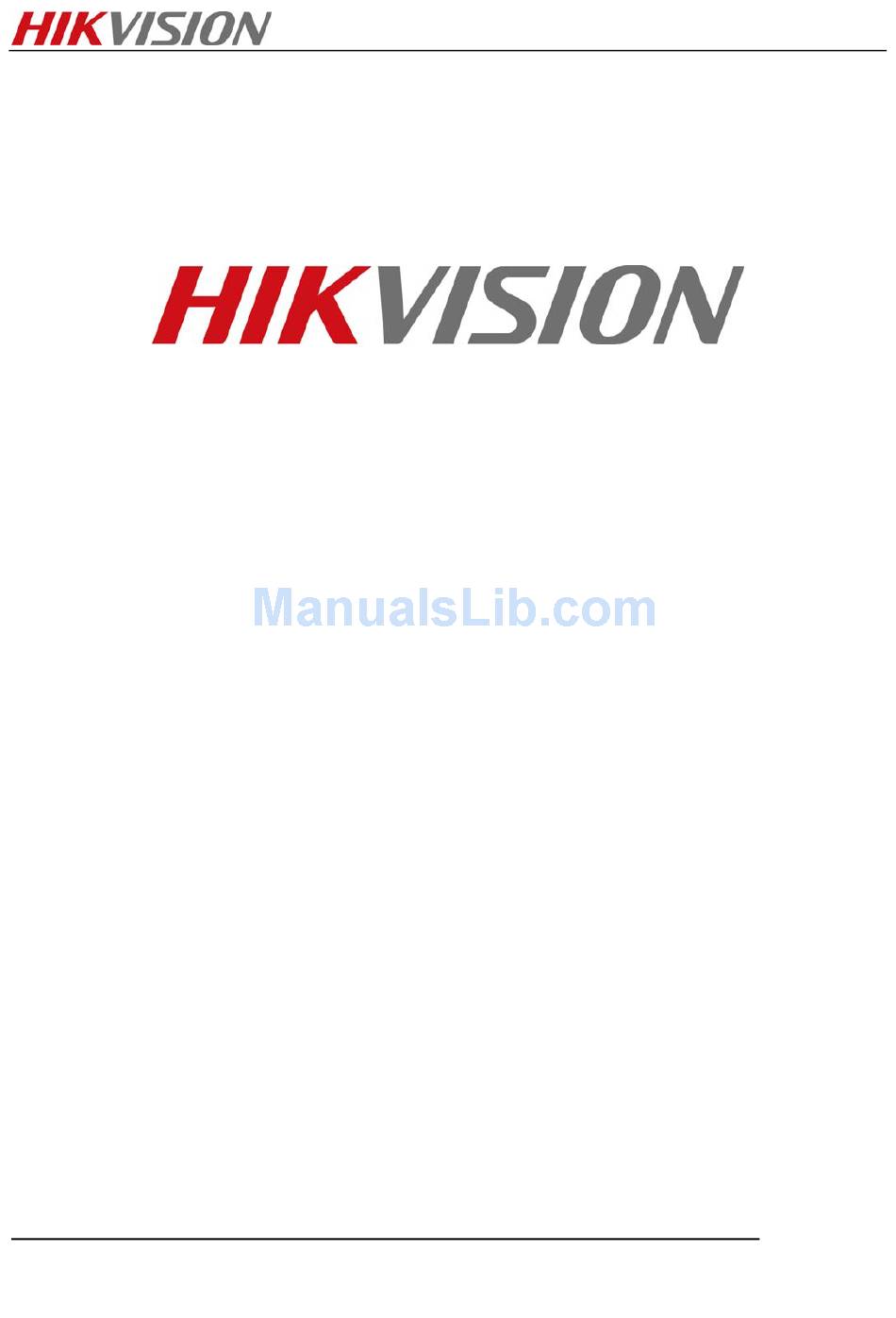

  • Page 1 Hikvision Technical Manual Network Camera Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 2 It may not be reproduced in whole or in part, in any form, or by any means or be used for any other purpose without prior written consent of HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or...
  • Page 3 Hikvision Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 4: Key Features

     Compatible with Current SDK and Client Software  Application  The product is applicable to scenes with high‐definition video requirement, such as financial institution, supermarket,  telecommunications department, governmental office, school, airport, factory, hotel, museum, traffic, etc.  Specification                                      Model    DS‐2CD852F  Parameter  2 Megapixel 1/3" CMOS Day&Night Network Box Camera  Camera  Image Sensor  1/3" Progressive Scan CMOS  ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 5 Protocols  (FTP, SMTP, NTP, SNMP optional)  Security  Password Protection  Interface  Audio Input  1 channel, 3.5mm audio interface (2.0 ‐ 2.4Vp‐p, 1kΩ)    Audio Output  1 channel, 3.5mm audio interface (Line level, 600Ω)  1 RJ45 10M / 100M self‐adaptive Ethernet port and 1 RS‐485  Communication Interface  interface  Alarm Input  1 channel  Alarm Output  1 channel  Video Output  1Vp‐p Composite Output (75Ω/BNC)  General  Operating Conditions  ‐10°C ‐60°C (14°F‐140°F), Humidity 90% or less(non‐condensing)  Power Supply  12VDC/300MA±10%  Power Consumption  3W MAX    Dimensions  63 x 59 x 116mm(2.48” x 2.32” x 4.57”)  Weight  650g (1.43lbs)  ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 6                         Indoor/Outdoor camera housing                    Indoor camera housing  DS‐1311HZ (DS‐1312HZ, DS‐1313HZ)                          DS‐1303HZ  ©2006 – 2010 by HIKVISION. All rights reserved.
