3 On stage

The analog I/O of the TORPEDO Live offers great options on stage. For example, the analog output
can be connected to the front mixing console. Or plug headphones to the appropriate output and
enjoy playing your amp LOUD in a total silence, at home.

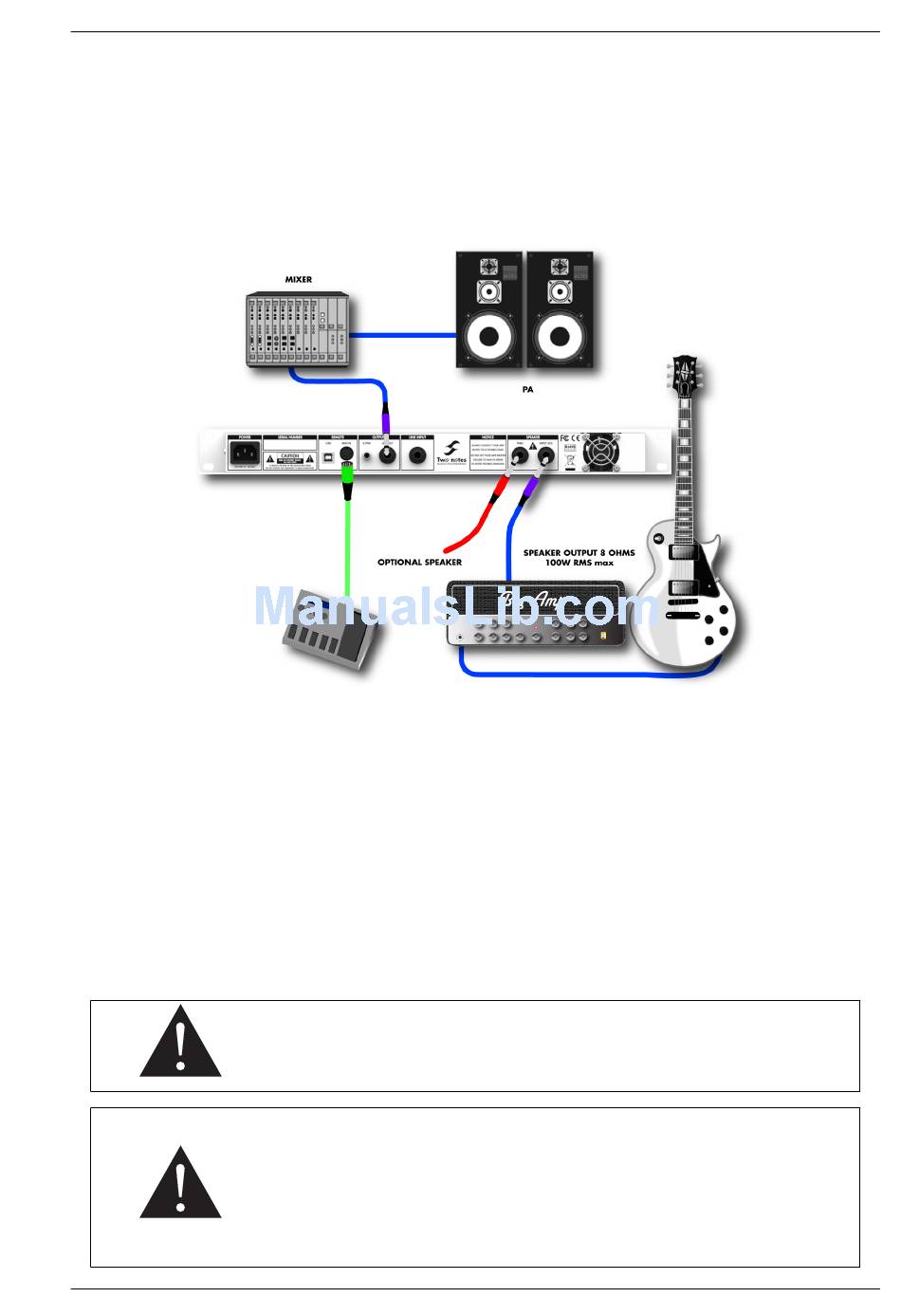

On the following figure you will find a simple setup with an amplifier,the same can be done with a
preamplifier in the LINE INPUT of the TORPEDO Live.
With a MIDI foot controller, you gain access to the presets navigation and even parameter chang-
ing in real time. The TORPEDO Live handles both PROGRAM CHANGE et CONTROL CHANGE com-
mands.
Playing in silence is a great feature, but at some point you have to listen to what you play! We
preset a few option to use at home, in the studio or on stage:
1. Listen through the headphones out,
2. Listen on a guitar/bass cabinet plugged to the TORPEDO Live THRU output,
3. Having a local monitoring system on stage, by duplicating the LINE OUPUT with a mixer,
4. Having in-ear monitors or wedge speakers controlled by a sound engineer.
Two Notes Audio Engineering
The THRU, S/PDIF and LINE outputs can be used simultaneously.
When you plug a cabinet to the THRU output, the impedance of this
cabinet is the one that your amplifier sees. In other words, with a 4
Ohms cabinet, you need to connect the 4 Ohms output of your am-
plifier. In this configuration, the load box inside the TORPEDO Live is
disconnected. This way, you can override the 8 Ohms only limitation of
the TORPEDO Live.
