Connecting the TORPEDO Live

1 Overview

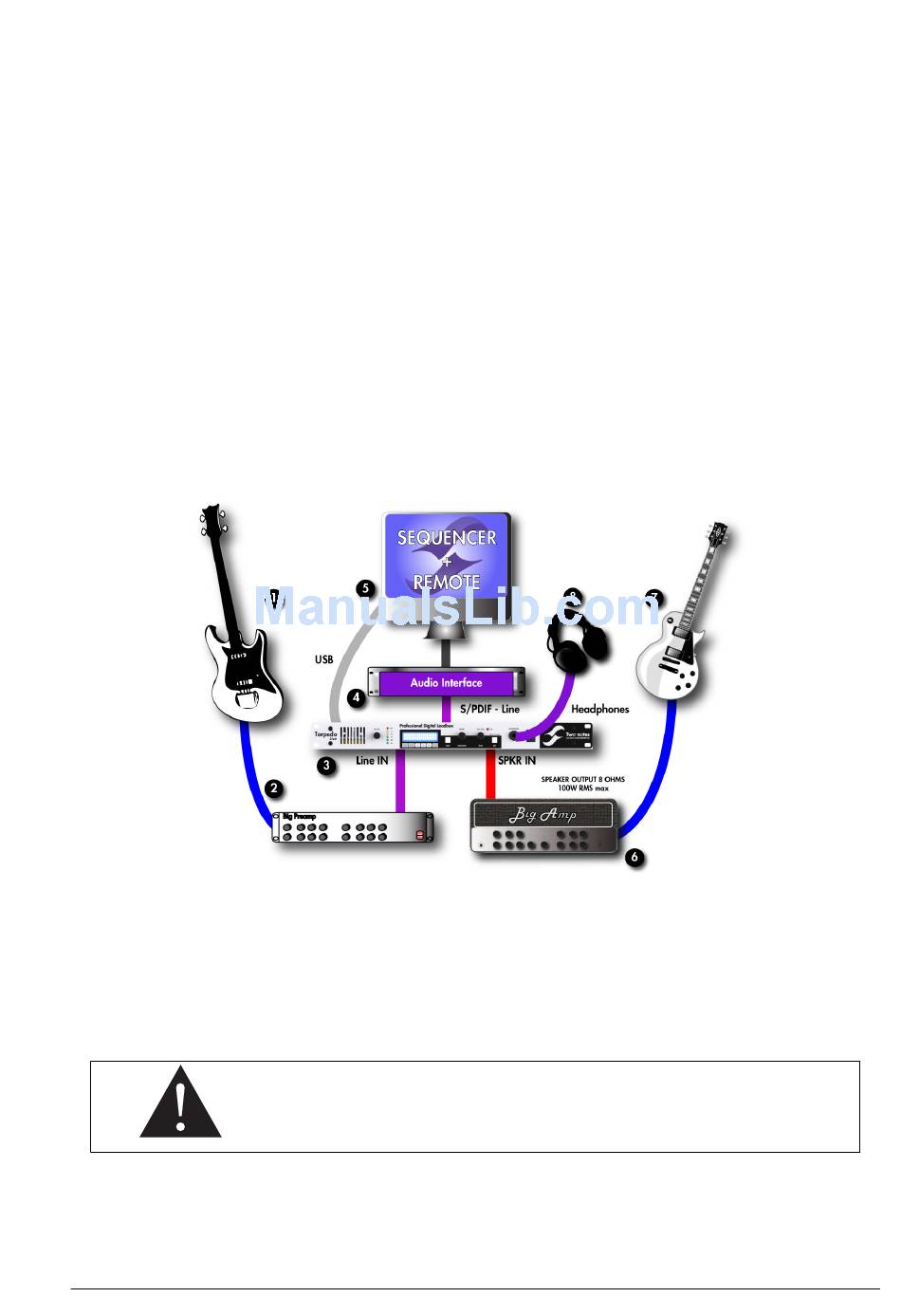

The TORPEDO Live offers a solution for silent and quality sound pick-up in many situations. The following
illustrations show the most common situations theTORPEDO Live has been created for.
1 Guitar/bass
2 Guitar/bass preamp
Even if it was design to go on stage, the TORPEDO Live fits perfectly in a digital or analog studio,
to bring you the greatest tone with your amp, whatever the circumstances.
Two Notes Audio Engineering
3 TORPEDO Live
4 Audio interface
Please keep in mind that tube amplifiers have to be connected to an
appropriate load (cabinet or load box). Always plug the 8 ohms output
from your amp to the 8 ohms input of the TORPEDO Live.
TORPEDO Live
5 PC/MAC with TORPEDO Remote
6 Guitar/bass amp
7 Guitar/bass
8 Headphones
