2 Front panel

3 Rear panel

1
Mains connector
2
Serial number
3
USB

4 Only a speaker simulation ?

The TORPEDO Live is a standalone unit you can bring with you in any situation, when silent playing is
needed.
The role of the TORPEDO Live is to replace the following elements of the traditional guitar or bass
setup:
• the guitar/bass power amplifier
• the speaker cabinet
• the microphone
• the microphone preamplifier
to provide a signal that is the closest possible to a traditional guitar/bass miking in a professional
studio environment.
Two Notes Audio Engineering

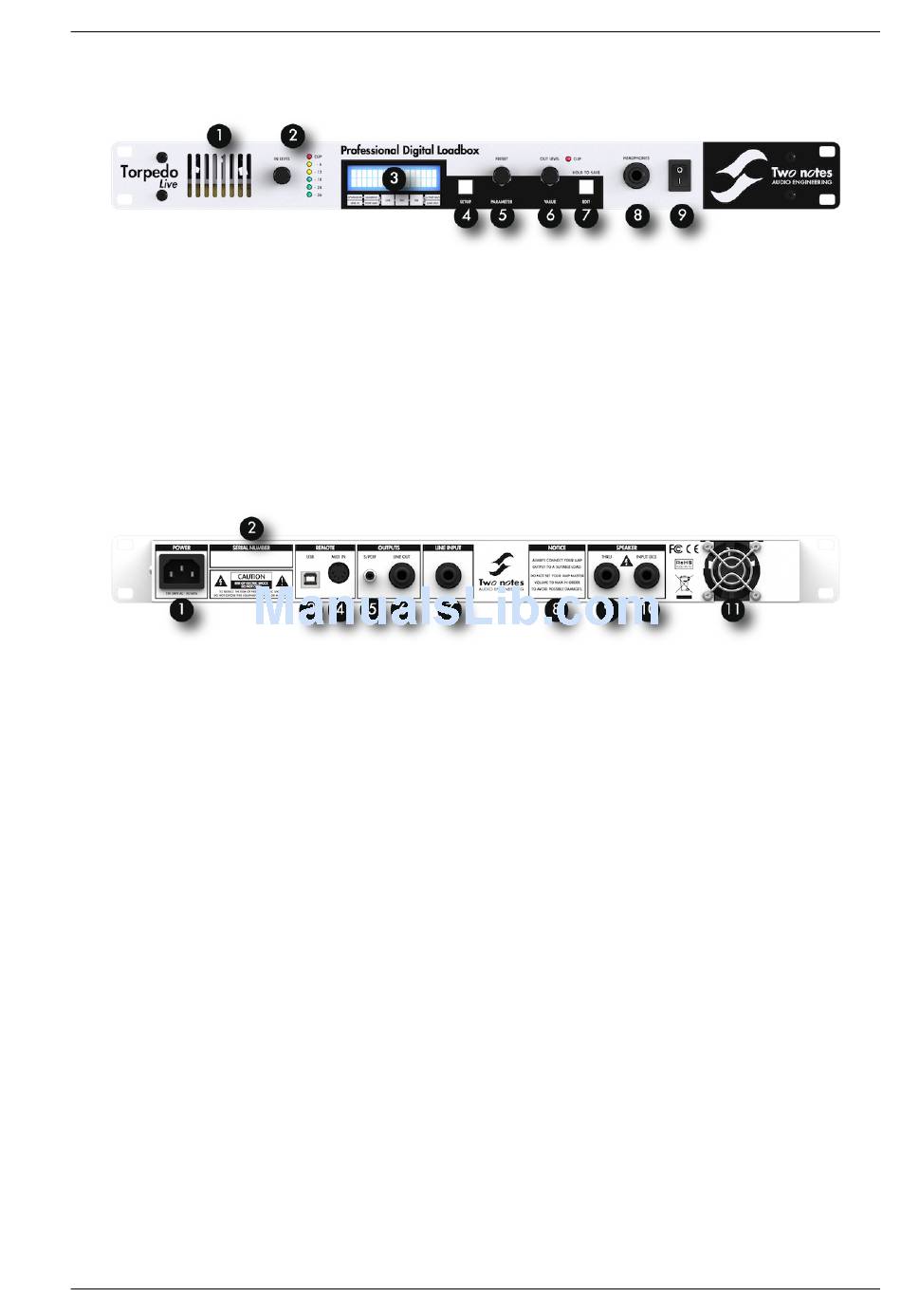

Figure 3.1: Front panel of the TORPEDO Live
1
Ventilation slit
4
SETUP button
2
Input gain
5
PRESET/PARAMETER encoder
3
Display
6
OUT LEVEL/VALUE encoder
Figure 3.2: Rear panel of the TORPEDO Live
4
MIDI
5
S/PDIF output
6
Balanced line output
TORPEDO Live
7
EDIT/SAVE button
8
Phones output
9
Mains switch
7
Balanced line input
10
8
8 Ohms load warning
11
9
Speaker output
About the TORPEDO Live
Amplifier input
Fan
11
