Connecting to an External Component

You can enjoy video from VCR or camcorder on your DVD player.
1. Turn off DVD player, VCR and other components.

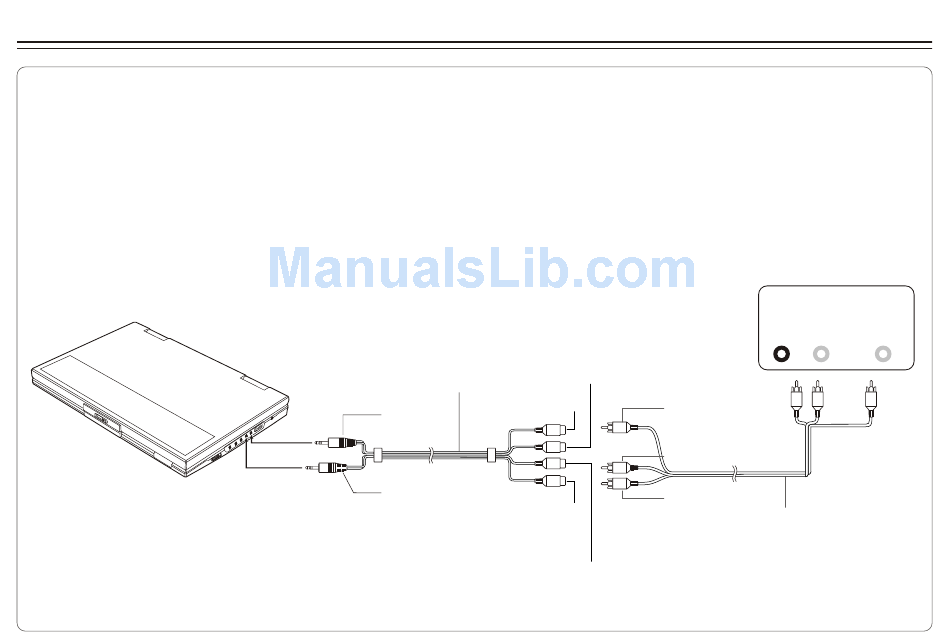

2. Connect the audio and video cables as illustrated below.
3.Turn on power.
O O P E P E
N N
AV adaptor cable (provided)
(Mini-jack to RCA)
Video(yellow)
VIDEO IN
AUDIO IN/OUT
Audio (black)
VCR or other component equipped with external output connectors
Video out: Yellow
Video in: Green
Audio(right):Red
Audio(left):White
~ 7 ~
AUDIO
OUT
R L
Video out: Yellow
Audio(left):White
Audio(right):Red
AV CABLE (Not provided)
VIDEO
OUT
