Valcom V-1040 Installation Instructions page 2

Clean room

Advertisement

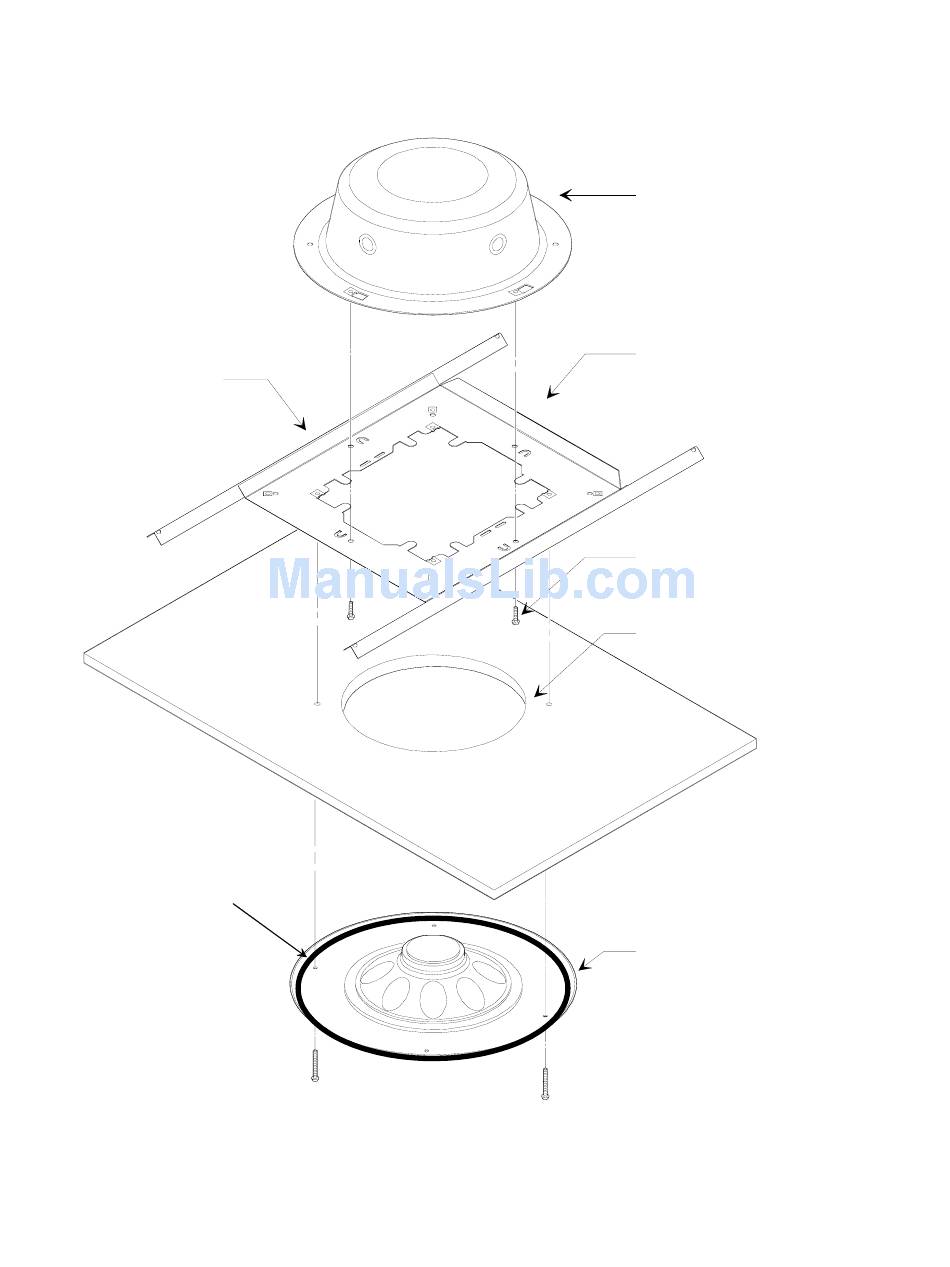

FIGURE 2: V-1040 INSTALLATION INSTRUCTIONS
Bend tabs down to
locate bridge in
ceiling tile cutout
Large Rubber
O-Ring Placement
2
V-9915M-5 Backbox
V-9914M-5 Bridge
Attach backbox to
bridge with 4 screws
provided
Cut 8.5" round
hole in ceiling tile
Ceiling Grille
and 8" Speaker
Assembly
(4 white screws
with rubber washers
provided)
