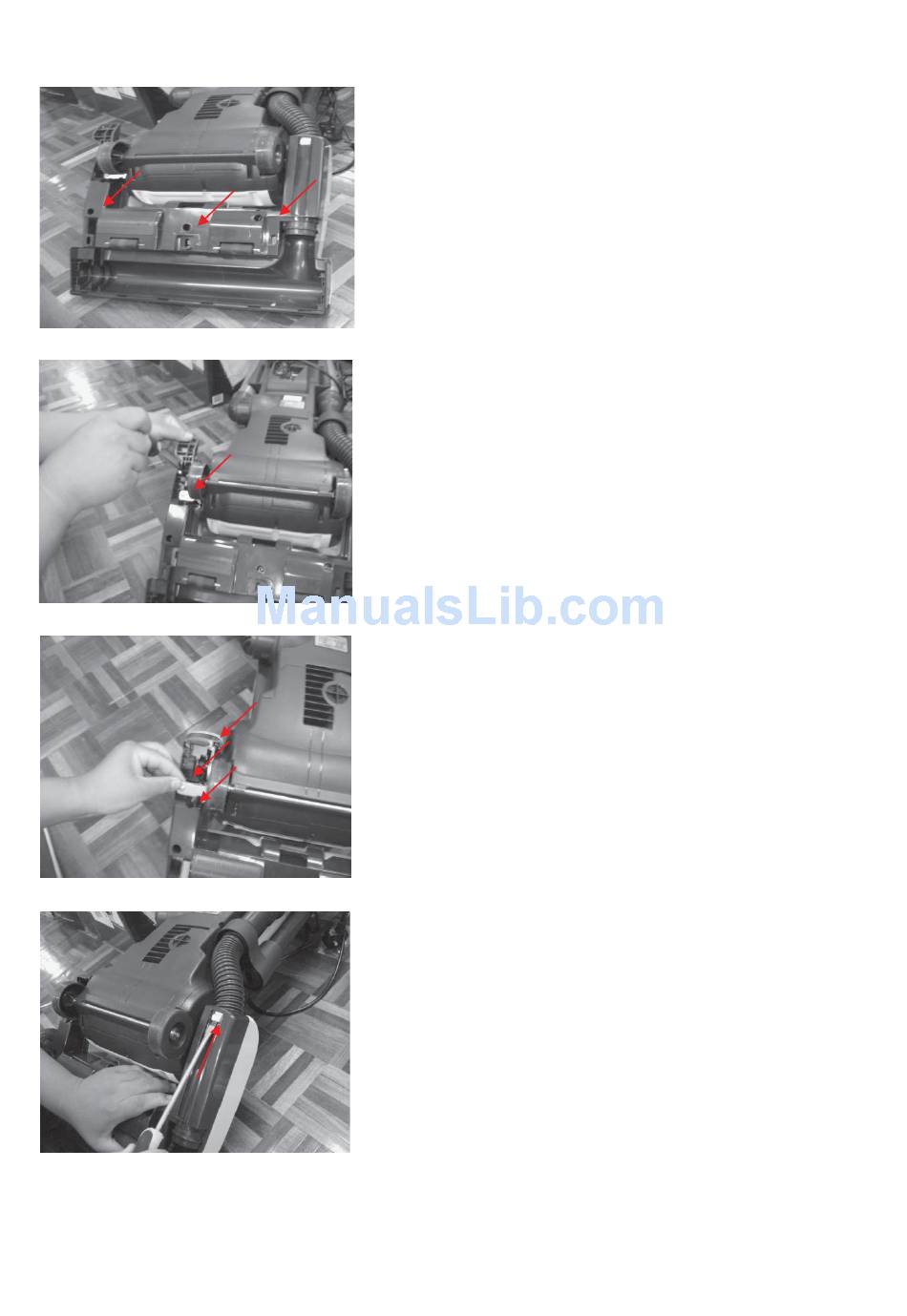

REPLACING MOTOR ASSY AND OVERLOAD PROTECTOR

- Following step replacing belt and Beater bar unit.
- Loosen 3 screw from the Lower plate.
- Remove the 1 screw from the Pedal shaft to detach
the Pedal.
- Pull out the pedal shaft slightly.
- Loosen 3 screw at the frame and remove together.
- Push the hook to unlock Floor nozzle upper.
