Compass Model Atom 500 Assembly Manual page 6

3

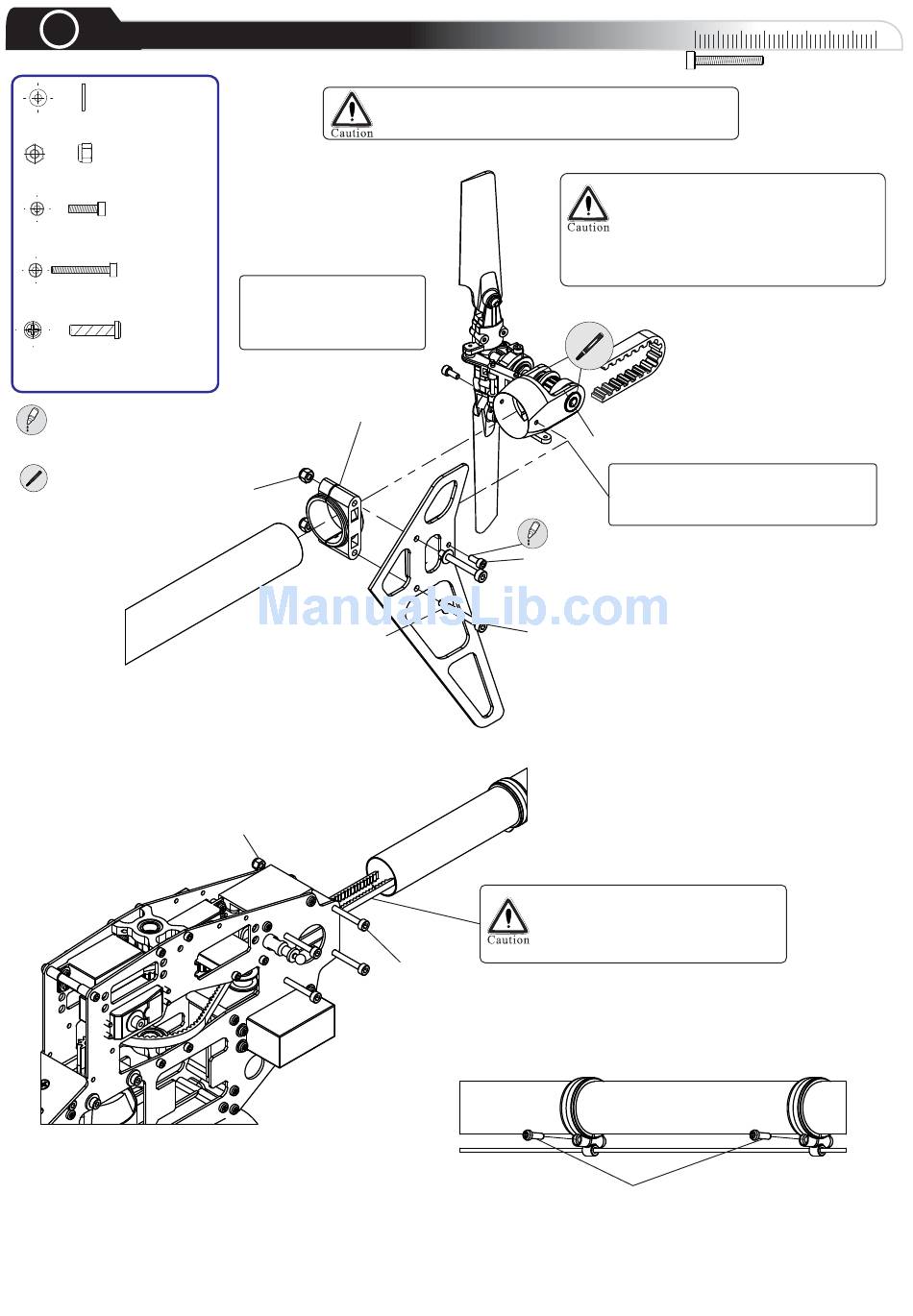

Boom & Tail Rotor
M3 Washer x2
M3 Nylon Lock Nut x6
M2.5x6 Cap Head Bolt x2
M3x40 Cap Head Bolt x4
M2.5 x8 Self Tapping
Bolt X 2
Use Threadlock
Bearing Retainer
M3 Nylon Nut
Crimping Belt damages the Tensile Cords
and will result in premature failure.
Insert the Tail Boom
fully into the Tail Gear
Case before tightening
the 2.5x6mm Bolts.
Vertical Fin Mount
M3 Nylon
Nut
M3 Washer
M3x40 Cap
Head Bolt
0
Be careful not to over tighten the
Bolts when attaching the Tail Rotor
Blades. The Tail Blades should be
able to move with a slight amount
of resistance within the Tail Blade
Holders.
Tail Set
These Bolts are only used to
compress the boom, please do
not screw them the whole way in.
M2.5x6 Cap
Head Bolt
M3x25 Cap
Head Bolt
See Page Team Tips!
Slide the Tail Boom through the
Tail Boom Mount. Twist the Tail
Belt 90° to the right before
inserting it to the Idler Pulleys.
M2.5x8 Self Tapping Bolt
