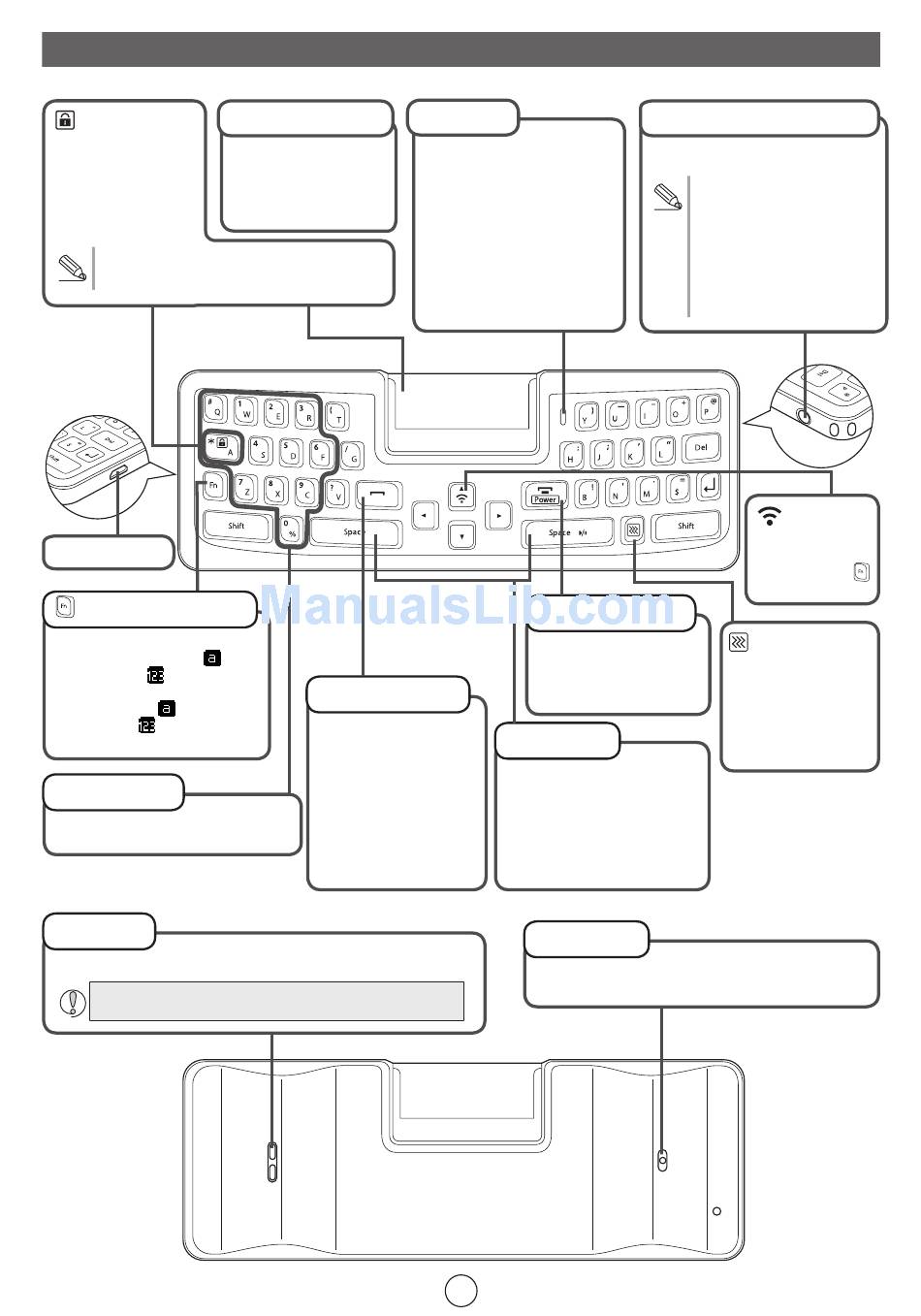

Part Names

Lock
Press and hold this for
approx. 3 seconds to lock
this product and disable
key operations. To unlock,
press and hold this for
approx. 3 seconds again.
It is possible to answer a received call
while this product is locked.
Charging connector
key (Function key)
• In keyboard mode, switches
between alphabet mode
number mode .
• The lower letter on each text input
key is entered in mode and the
upper one in mode.
Numerical keys
Uses to enter a phone number in hands-
free mode.
Speaker
Speaker for conversation during connection in hands-free mode
You cannot hear sound in music mode.
Organic EL display
• Shows information such as
remaining battery level, pair-
ing mode status, connected
device' s number, caller' s
number, and volume.
and
Call receiving/placing key
• Press this to answer a
received call.
• Switches to hands-free mode.
• In hands-free mode, places
a call when pressed after a
phone number is entered.
• In hands-free mode, displays
the outgoing call history when
pressed and held.
LED lamp
• Lights red when charging.
• Turns blue when charging is
complete.
• Flashes red when the remaining
internal battery level becomes
low during use.
• Flashes blue when the keyboard
is in a pairing standby state.
• Flashes blue every 1 second in
power saving mode.
Hanging up/power key
• Press and hold this for approx.
3 seconds to power ON/OFF.
• In hands-free mode, hangs
up the call.
Space key
• In keyboard mode, inserts a
space.
• In keyboard mode, converts
characters when using two-
byte characters.
• In music mode, pauses or plays
the music.
Microphone
Microphone for conversation during connection in
hands-free mode
3
3.5 mm-dia earphone jack
Insert the 3.5 mm-dia stereo mini plug of
your earphones.
• This product does not include
3.5 mm-dia stereo earphones.
• Even when an earphone
with a built-in microphone is
used, the microphone func-
tion cannot be used. Use the
microphone on the keyboard
instead.
Pairing
Changes to pairing
mode when pressed
together with the
key.
Vibration ON/OFF key
Press and hold this to
enter vibration mode.
Returns to normal mode
when pressed and held
while in vibration mode.
