3.75G/Hspa Module - MAXDATA M-Book 600 User Manual

3.75G/HSPA Module

If you have included an optional 3.75G/HSPA module in
your purchase option, follow the instructions below to in-
stall the USIM card (which will be provided by your ser-
vice provider), and then run the appropriate application
supplied with your module.
USIM Card Insertion
1. Turn off the computer, and turn it over and remove the battery
1 (slide the latches in the direction indicated below and slide
the battery out).

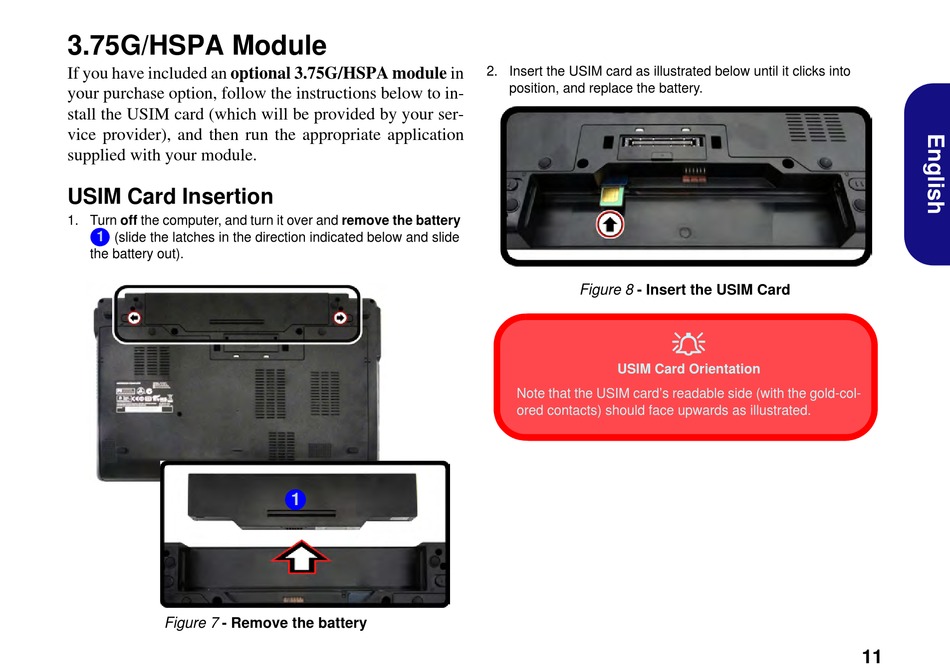

Figure 7 - Remove the battery
1
2. Insert the USIM card as illustrated below until it clicks into
position, and replace the battery.
Figure 8 - Insert the USIM Card
USIM Card Orientation
Note that the USIM card's readable side (with the gold-col-
ored contacts) should face upwards as illustrated.

11
