GETTING STARTED

Getting To Know LevelOne 54Mbps Wireless Access Point
LevelOne WAP-0003 WIRELESS ACCESS POINT'S PORTS
♦ Power Receptor
♦ Reset Button
♦ MDII RJ-45 Ethernet Port
Straight-Through cable is required to connect with router or switch.
-
Cross-Over cable is required to connect to computer directly.
-
LevelOne WAP-0003 WIRELESS ACCESS POINT'S LEDS
♦ Power LED
ON when the unit is powered up
♦ WLAN LED
ON indicates WLAN is working; blink indicates wireless activity
♦ LAN LED
ON indicates LAN connection; blink indicates LAN activity

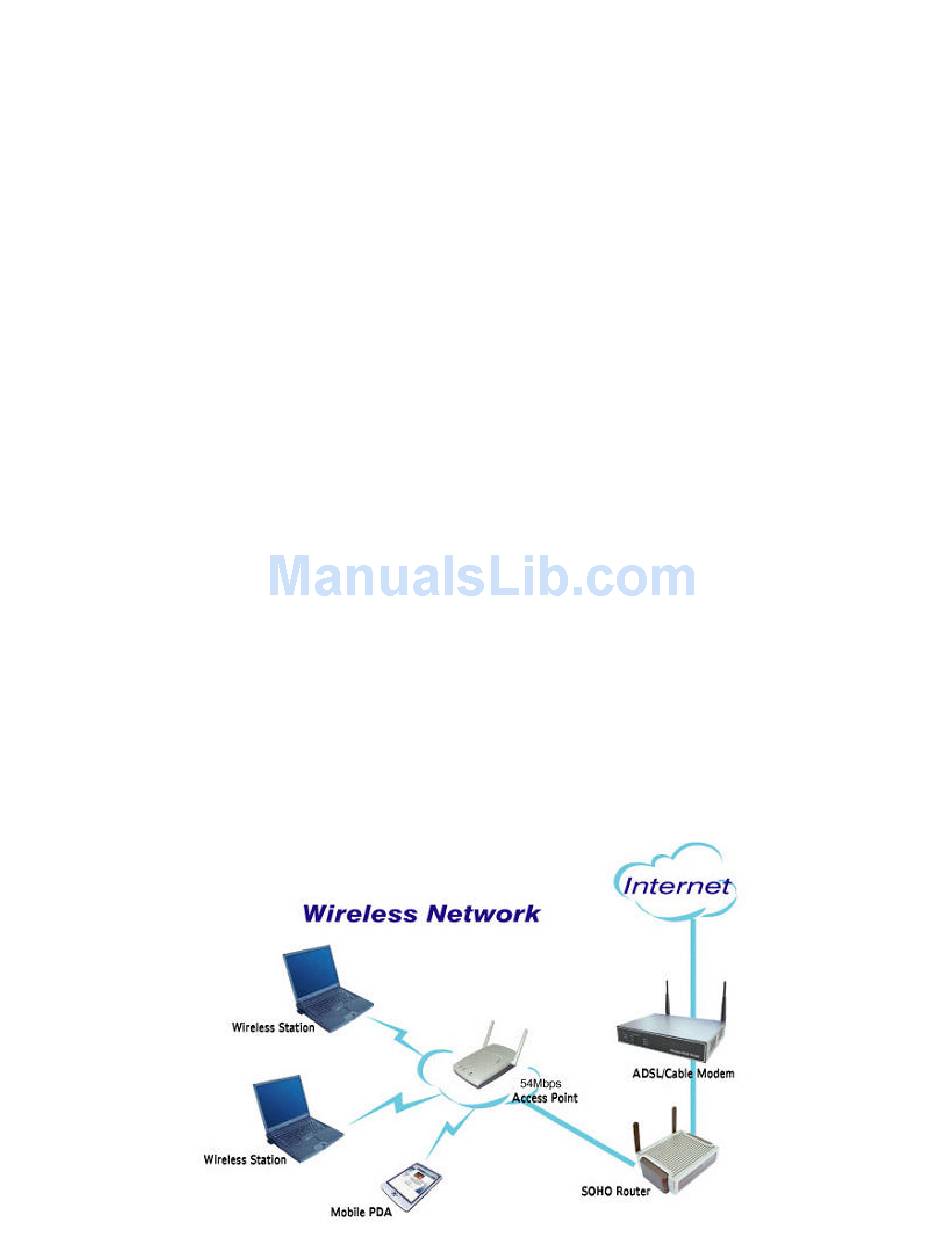

Connecting LevelOne WAP-0003 Wireless Access Point
-5-
