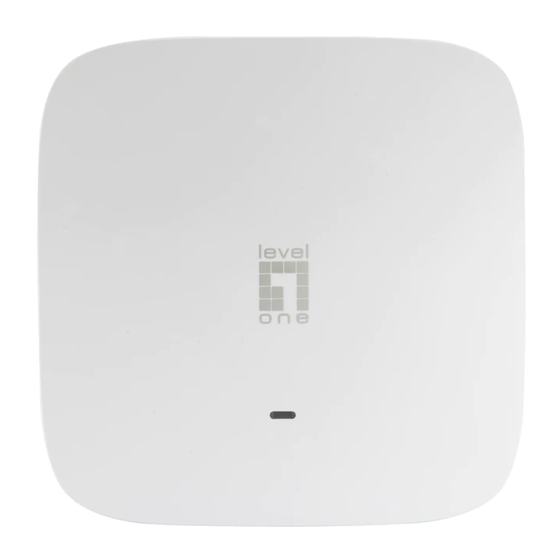

WAP-8121 / WAP-8122
AC Dual Band Managed PoE Wireless Access
Point
User's Manual
V1. 0_20161110

Advertisement

Table of Contents
loading

Related Manuals for LevelOne WAP-8121

Summary of Contents for LevelOne WAP-8121

  • Page 1 WAP-8121 / WAP-8122 AC Dual Band Managed PoE Wireless Access Point User’s Manual V1. 0_20161110...

  • Page 2: Table Of Contents

    Contents Chapter 1 Introduction ............................ 3 1.1 LED Indicator: ..............3 1.2 AP Interface: ..............3 1.3 Power Supply: ..............3 1.4 AP Installation: ..............4 1.5 Connecting AP with PC ............. 4 Chapter 2 Log in the WEB ..........................5 Chapter 3 Quickly Configure Wireless AP ......................

  • Page 3: Chapter 1 Introduction

    Chapter 1 Introduction This is the user manual of 1200Mbps Ceiling AP, which will guide you to set and apply the Ceiling AP. It provides a convenient and easy graphical interface for network construction and maintenance person, as well as for a user with no experience.

  • Page 4: Ap Installation

    1.4 AP Installation: P 3 AP i n st al lat io n 1.5 Connecting AP with PC Us e ca n co n ne ct t he P C wi t h wi re le ss AP b y Wir ele s s SSI D a nd LAN c ab le: T he d i a gra m o f wi r el e ss co n nec tio n s ho wed a s fo llo w: d e fa ul t 5 G S SI D i s L ev el O n e 5 G, S S ID’s P ls no te: t he d e fa u lt 2 .4 GS SID i s Lev elO ne 2 .4 G,...

  • Page 5: Chapter 2 Log In The Web

    Chapter 2 Log in the WEB The necessary information about log in is displayed on the sticker of the product, including the URL, User Name and Pass Word 1 ） Connect the Ceiling AP with computer 2 ） Configure the PC’s local connection IP address as 192.168.188.X (X is number from 2 to 252), subnet mask is 255.255.255.0, follow P4 and P5 to finish.
  • Page 6 3) Input 192.168.188.253 into IE browser, then pop up the login page, the default login user name: Admin, Passwords: admin, pls do following P6 P6 Login 4) After login, then P7 Device Status will be showed; This page will show the AP’s default operation mode, channel, connection status, Tx Power Mode, CPU usage, Wireless settings, LAN Setting, AP’s Location, AP’s hardware/firmware version.
  • Page 7 P7.1 RF Output Power In the Tx Power Mode selection, Super mode stands for 100% of the RF Output Instruction Power, Standard mode for 50% of the RF Output Power, Power Saving Mode for 12.5% of the RF Output Power. The RF Output Power can be adjusted accordingly in the Advanced Setting of 2.4Ghz Wireless and 5.8Ghz Wireless in P7.1.

  • Page 8: Chapter 3 Quickly Configure Wireless Ap

    Chapter 3 Quickly Configure Wireless AP 3.1 Gateway Mode: Before Click Gateway mode, confirm your internet will be static IP, PPPoE, or DHCP, then Click “Gateway Mode” under following picture and choose the right WAN access type. When you need to PPPOE please enter the user name and password the ISP provides .
  • Page 9 P9 Repeater Mode B. Select the AP’s SSID want to bridge, take LevelOne for example. P10 Select AP If your computer can’t pop up this window, pls check your IE explorer and see whether it is Instruction blocked already. And if this Wireless AP can’t scan any SSID, pls check if there are 5G wireless signal.

  • Page 10: Ap Operation Mode

    P11 Repeater Mode 3.3 AP Operation Mode: AP mode is for wifi coverage mainly, plug and play, very easy in setting as follow: Click the “AP mode”, set AP Location and name if need, after that to configure the Wireless Basic for 2.4Ghz and 5.8Ghz, such as SSID, password, channel, Then apply.
  • Page 11 after that “scan AP” to choose the SSID you want to bridge and input the password, then fill the SSID/password, channel will be broadcast, “Apply Changes” to finish. P12 WISP mode...

  • Page 12: Chapter4 Advanced Setting

    Chapter4 Advanced Setting: In advanced setting, user can check the ceiling AP’s firmware version, working status, 2.4G/5.8Ghz wireless, LAN Status, upgrade firmware, Reset... 4.1 Device Status: This page will show basic parameters for this unit, like firmware version,hardware version,etc; 4.2 2.4Ghz/5.8Ghz Wireless Basic Setting: On this page, users can configure the basic wireless settings freely, including the SSID, Security,Band, Hidden SSID and channel width.

  • Page 13: Virtual Ap

    4.3 Virtual AP: There are 3 virtual AP in 2.4Ghz and 5.8Ghz individually, (total 6 virtual AP), if need virtual SSID, then users can configure basic settings showed in following picture: 4.4 Access Control Control the end users like the white list and black list.

  • Page 14: Network Setting

    4.4 Network Setting: In this page, users can set up the basic LAN setting Under AP Mode, DHCP from Controller means you are allowing the controller to control the IP of the AP (originally 192.168.188.253) . Therefore the controller can find and manage the AP. When you choose Fixed IP , that means the AP is having the right to decide its own IP instead of being totally controlled by controller.

  • Page 15: Log

    4.5.2 Log: Log info will help the technicians to diagnose the problems of the device 4.5.3 Upgrade Firmware After upgrading the firmware please reset the device. 4.5.4 Settings Management Save settings will help you to save the current configuration. When you have reset the device, you can also upload the the settings you saved before.

  • Page 16: Password

    4.5.5 Password You can change the System Password here. We strongly recommend you to change the system password for security reason. 4.5.6 Management under Gateway Mode DDNS function is added in this mode. And the QOS function allow you the limit the uplink and downlink speed. 4.5.7 Firewall under Gateway Mode Use the firewall to secure your network as you wish.

  • Page 17: Share Internet And Obtain Ip Address Automatically

    4.6 Share Internet and Obtain IP Address Automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet.

  • Page 18: Chapter 5 Trouble Shooting

    Chapter 5 Trouble Shooting: F 1 The Failure phenomenon and solution Failure phenomenon Solution Pls make sure the PoE module connection is right. POE Port connect SYS Indicator off with AP, LAN port connect with computer Pls check the IP address of computer and Wireless AP to see whether they are in same networking segment, The method is click “start”-“Run”...
