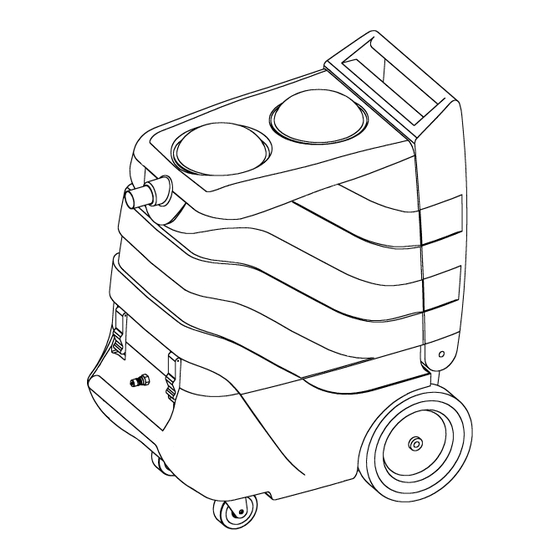

13 Gallon
High Pressure
Carpet Cleaner
Operator and Parts Manual
Model No.:
613337
613338 - PAC
TENNANT COMPANY
Commercial Products
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
FAX: 1-800-678-4240
1-616-786-2345
613343
CUSTOMER SERVICE: 1-800-964-9644
Rev. 00 (04-02)
1-616-786-2330
Home
Find... Go To..
Advertisement
Table of Contents
Related Manuals for Tennant 613337
Summary of Contents for Tennant 613337
- Page 1 13 Gallon High Pressure Carpet Cleaner Operator and Parts Manual Model No.: 613337 613338 - PAC TENNANT COMPANY Commercial Products 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. FAX: 1-800-678-4240 1-616-786-2345 613343 CUSTOMER SERVICE: 1-800-964-9644 Rev. 00 (04-02) 1-616-786-2330 Home Find... Go To..
-
Page 2: Table Of Contents
© 2000 Tennant Company Printed in U.S.A. distributor or from any of the manufacturer’s Castex is a registered United States trademark of Tennant Company subsidiaries. This machine will provide excellent service. However, the best results will be obtained at minimum costs if: •... -
Page 3: Safety Precautions
OPERATION 4. Before leaving or servicing machine: SAFETY PRECAUTIONS Turn off machine. – – Unplug cord from wall outlet. 5. When servicing machine: This machine is intended for commercial use. It is designed to clean carpet and upholstery in a indoor Unplug cord from wall outlet. -
Page 4: Safety Labels
OPERATION SAFETY LABELS The safety labels appear on the machine in the locations indicated. Replace labels if they become damaged or illegible. FOR SAFETY LABEL- Located on rear panel. FOR SAFETY: Read manual before operating machine. FLAMMABLE MATERIALS/ SPILLS LABEL- Located on rear panel. -
Page 5: Machine Components
OPERATION MACHINE COMPONENTS 1. Recovery Tank 8. Empty-Out Nozzle 2. Solution Tank (under lid) 9. Vacuum Hose Connector 3. Recovery Tank Lid 10. Recovery Tank Drain 4. Solution Tank Lid 11. Latches 5. Vacuum Switches 12. Push/Pull Handle 6. Pump Switch 13. -
Page 6: Machine Operation
OPERATION ATTENTION: If using powdered cleaning 2. Take carpet cleaning wand in hand and squeeze chemicals, mix prior to adding. valve trigger while moving the tool in short forward and backward strokes over the carpet NOTE: If desired, water alone achieves excellent (Figure 5). -
Page 7: Draining Tanks
OPERATION 2. Operate accessory tool as normal (Figure 7). DRAINING SOLUTION TANK NOTE: Before cleaning upholstery, always check 1. Remove empty-out nozzle from its storage cleaning instructions sewn in furniture by bracket (Figure 9) and attach to end of solution manufacturer. -
Page 8: Machine Maintenance
OPERATION MONTHLY MAINTENANCE MACHINE MAINTENANCE (Every 80 Hours of Operation) 1. Lubricate wheels with water resistant oil. To keep machine in good working condition, simply 2. Inspect machine for water leaks and loose follow machine’s daily, weekly and monthly hardware. maintenance procedures. -
Page 9: Trouble Shooting
OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Machine does not operate. Faulty switches or wiring. Contact Service Center. Faulty power cord. Contact Service Center. Building circuit breaker tripped. Reset Breaker. Solution pump does not operate. Faulty switch or wiring. Contact Service Center. Faulty solution pump motor. -
Page 10: Specifications
OPERATION SPECIFICATIONS 13 GALLON HIGH PRESSURE CARPET CLEANER Model LENGTH 711 mm (28 in) WIDTH 450 mm (17.7 in) HEIGHT 902 mm (35.5 in) WEIGHT 50 Kg (110lbs) SOLUTION TANK CAPACITY 49.2 L (13 gal) RECOVERY TANK CAPACITY 56.7L (15 gal) SOLUTION PUMP 120 V, 13.6 bar (200 psi), 1.6A VACUUM MOTOR... -
Page 11: Electrical Diagram
ELECTRICAL DIAGRAM 120 V WIRING DIAGRAM 13 Gallon High Pressure Carpet Cleaner (04-02) Home Find... Go To.. -
Page 12: Parts List
PARTS LIST TANK GROUP 13 Gallon High Pressure Carpet Cleaner (04-02) Home Find... Go To.. - Page 13 PARTS LIST TANK GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 610538 NOZZEL EMPTY OUT MALE 610463 NUT 10-32 HEX ZINC 610480 BUSHING HOLDER EMPTY-OUT 610460 10-32 X 5/8 PHXSS 610482 CLAMP HOSE 1/4 # 4 610462 10-32 X 1 1/2 PHXZINC 610512 NUT NYLON BUSHING REL 1/2 610519...
- Page 14 PARTS LIST BASE GROUP 13 Gallon High Pressure Carpet Cleaner (04-02) Home Find... Go To..
-
Page 15: Base Group
PARTS LIST BASE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 610551 INSULATION BLOWERS 700 610580 NUT 1/4-20 HEX CP 610598 TIE WRAP 12" BLACK 610581 WASHER LOCK 1/4 610470 NUT 1/4-20 NYLOK ZINK 610583 DAMPENER VIB 1X1MXM 1/420 610471 WASHER 1/4 FLAT CP 610608... - Page 16 PARTS LIST PUMP 200 PSI BREAKDOWN REF# PART # DESCRIPTION QTY. 610616 PUMP PUMPTEC 200 W/PLUG 120 610763 MOTOR, 200 PSI W/PLUG 120V • 610764 VALVE & O-RING KIT, PMPTC 200 • 610765 PLUNGER & SEAL KIT, PMPTC 200 • 610766 CAM &...
-
Page 17: Options
OPTIONS FLOOR TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 610641 WAND & HOSE KIT HP-P X 610646 HOSE 1/4"SOL BLU X39.25DB WAND, FLOORTOOL HP-PX 610629 "U"CLAMP,SUPP HOE HNDL EC 610709 COMP 610645 WAND,"S" BEND FLOORTOOL 610624 GRIP, FLRTOOL 1 1/2 X 6 610623 NUT 5/16-18 NYLOCK, ZINC 610465... -
Page 18: Hand Tool
OPTIONS HAND TOOL REF PART # DESCRIPTION QTY. REF PART # DESCRIPTION QTY. 610297 TOOL, UPHOLSTERY HP -P X 608898 TRIGGER, HAND TOOL 610670 TOOL, HAND HP BRASS JET W/VLV & TRIG 610658 4-40 X 7/8 PHXZINC 608891 TOOL, HAND W/O TRIGGER 610659 NUT, 4-40 HEX ZINC NYLOK 610654 6-32 X 1 PHXZINC 608892 SEAL, SOLUTION HOSE...
