NetComm V400 Specifications page 3

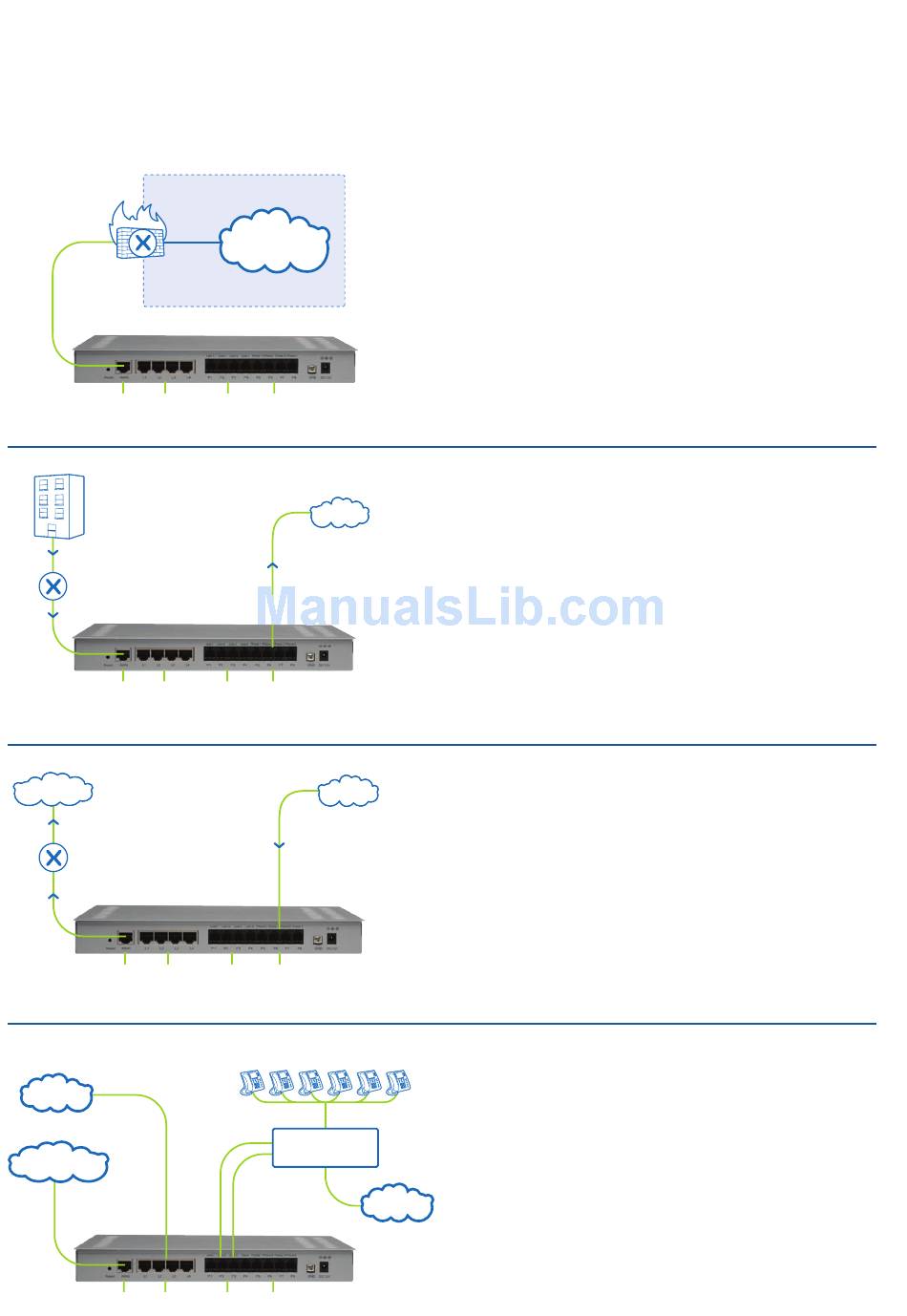

The building blocks of a SmartVoice VoIP Gateway
Integration into a LAN/WAN
Router/Firewall
WAN LAN
Toll bypass
Branch Office
Router
WAN LAN
Remote User Solution
ITSP Account
Router
WAN LAN
Integration with an Analogue PbX
Toll Bypass
PSTN
Only
ITSP Account
WAN LAN
WAN Internet
Frame Relay
FDDI
FXO
FXS
PSTN
FXS FXO
PSTN
FXS
FXO
Handsets
PBX
PSTN
FXS FXO
A SmartVoice gateway works with all popular transmission technologies
including Cable/DSL, Frame Relay and FDDI (Fibre). Within a data network
environment, your SmartVoice gateway sits behind a modem/router, and your
firewall needs to be "VoIP aware".
The SmartVoice Gateway operates in two modes:
Router Mode (default): the LAN and WAN are on different subnets and
Network Address Translation (NAT) occurs twice through the SmartVoice
gateway and the router.
bridge Mode: if speed is an issue for remote users, bridge mode can be used
where devices are treated as though connected directly to the router/switch.
One of the key applications for a SmartVoice Gateway is toll bypass – ideal for a
business with offices in multiple cities. For example, a business has their head
office in Sydney and branch offices in Brisbane and Melbourne
Application 1 – Inter-Office Communication:
The offices can ring each other for free over the VPN and eliminate long
distance charges for everyday communication
Application 2 – Long distance calling to external numbers
The Brisbane office wants to call an external phone number in Melbourne – the
call is routed to the Melbourne SmartVoice gateway over the VPN and then
hands-off to the local PSTN, in effect making it a local call from Brisbane.
A SmartVoice Gateway allows your business to move beyond the boundaries
of a single location and gives remote staff such as teleworkers or mobile sales
reps access to your office's Internet Telephony Service.
A user simply calls in via a mobile phone or standard PSTN phone to an FXO
port on the SmartVoice Gateway. After entering the security password, you can
pick up the dial-tone for the Internet Telephony Service to call out to interstate
or international phone numbers.
A business with an existing analogue PBX can use a SmartVoice Gateway to add
Internet Telephony services to the phone system without the need to replace
any equipment. The SmartVoice unit simply integrates with the PBX and acts
as a "gateway" for routing calls from a phone extension through to an Internet
Telephony Service Provider. This provides your business with the ability to make
calls through either a regular telephone service (PSTN) or an Internet Telephony
service. Most importantly, the business retains all of its phone functions
managed by the PBX and is transparent to all users.
