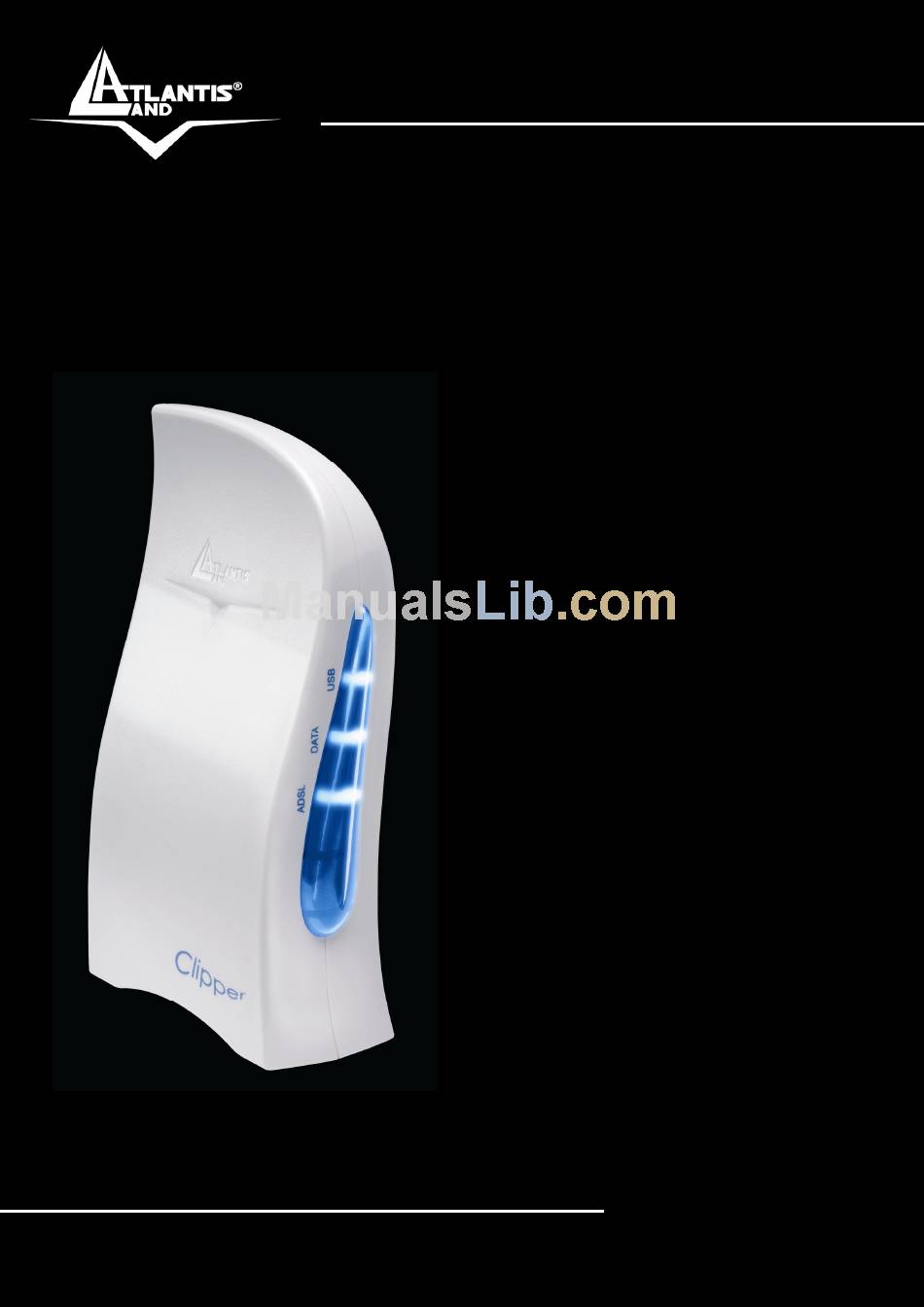

- Page 1 WebRunner Clipper ADSL USB Modem A01-AU3 MANUAL A01-AU3_ME01 Where solutions begin Company certified ISO 9001:2000...
- Page 3 Italiano fare riferimento al sito www.atlantis-land.com. ENGLISH This product is covered by Atlantis Land 3 years On-Site warranty. For more detailed informations please refer to the web site www.atlantis-land.com. For more detailed instructions on configuring and using this device, please refer to the online manual.
- Page 4 WARRANTY. The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice.
-
Page 5: Table Of Contents
INDEX 1.1 Overview of the Clipper USB ... 7 1.2 Package Contents ... 7 1.3 Clipper USB Features ... 7 1.4 Before Installing ... 8 1.5 The Front Panel LEDs ... 9 1.6 The Rear Ports... 9 1.7 Information from ISP ... 10 1.8 Cabling ... - Page 6 Windows™ 98SE/2000/ME/XP are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice.
-
Page 7: Overview Of The Clipper Usb
1.1 Overview of the Clipper USB Atlantis Land ’s Clipper complies with ADSL standards and supports downstream rate of up to 8Mbps. With its user- friendly installation utility and plug-and-play USB interface, it can be easily installed on a desktop PC or notebook PC without opening the case of the computer or adding any network interface card (NIC). -
Page 8: Before Installing
• USB bus-powered; no external power supply is required. • Hot Plug and Play for Microsoft Windows 98 (SE), 2000, Me, and XP • Mac OS and Linux • Supports NDIS interface for RAS and Dial-Up Networking • Software upgradable •... -
Page 9: The Front Panel Leds
1.5 The Front Panel LEDs MEANING Lit when successfully connected to an ADSL ADSL DSLAM (“linesync”) When this LED is flashing constantly, it DATA indicates transmitting/receiving data Lit when the USB port is connected to the PC and working properly 1.6 The Rear Ports Clipper USB Modem... -
Page 10: Information From Isp
PORT LINE 1.7 Information from ISP Before you start installing this device, you have to check with your ISP what kind of service (connection method) is provided such as PPPoE, PPPoA, RFC1483 bridged or routed, IPoA. Gather the information as illustrated in the following table and keep it for reference. - Page 11 • PPPoE • • • • PPPoA • • • • RFC1483 • Bridged • RFC1483 • Routed • • • IPoA • • • VPI/VCI VC-based/LLC-based multiplexing Username, Password Domain Name address VPI/VCI VC-based/LLC-based multiplexing Username, Password Domain Name address VPI/VCI VC-based/LLC-based multiplexing...
-
Page 12: Cabling
1.8 Cabling Please refer to the following instructions and figures for installation procedures: • Connect your ADLS line to the RJ-11 jack labeled LINE on the back of the Clipper USB. • Connect the USB cable to the jack labeled USB on the back of the Clipper. - Page 13 This section is described based on Windows XP/ 2000/Me/98ME acknowledge the modem has been connected to your computer. Do not plug USB cable into ADSL USB Modem before to install the USB Driver. Choose service provider from the list below and then click Next to continue.
-
Page 14: Installing The Usb Driver On Mac Os 9/X
• Clipper Dial-Up Connection (only if You have chosen PPPoA/PPPoE) • DSL Status After a few minutes the led ADSL should be turned on fixed. If You click on the icon DSL Status is possible to check the state of the modem and the speed of alignment. In case the LED ASDL is blinking You can force the type of modulation (to make reference to the section 1.13 of this manual). - Page 15 • The “Welcome” screen will appear, then, click “Next”. • Input the user name and password of your Mac system. Clipper USB...
-
Page 16: Control Panel (Mac Os 9)
• The “License Agreement” screen will appear, then click “Accept”. • To click the type of setup you prefer, then click Next >. • When all necessary files have been copied, select “Restart now”, than close the windows. Control Panel (MAC OS 9): The Clipper ADSL USB Modem control panel program provides a quick and easy way to configure and check the performance of the modem and the ADSL connection. - Page 17 • To access the modem control Panel on a Macintosh, click on the Apple icon then select Control Panels - > ADSL Setup. • The “ADSL USB Modem” window will appear, with two informational tabs: • The “DSL Status” tab provides status information for DSL line, such as the upstream/downstream data rates, the modulation and whether it is operational or not.
-
Page 18: Development Mode(Mac Os 9)
To access the Control Panel, the device driver must be installed. Development Mode(MAC OS 9): Development Mode is intended for OEM only. When in this mode, the Control Panel display Modem configuration information and advanced statistics about the modem. • In order to transition to the Development Mode of the Control Panel, while in the Control Panel, press the “Ctrl +1”... - Page 19 Clipper USB • The “System info” tab provides general information about the various software/firmware version using the same screen as the generally available Control panel previously described.
- Page 20 • Click on the “Configuration” tab to view and modify Modulation Encapsulation Mode and ATM Modes. If you have made any changes, click Apply. • The “ATM” tab provides transmission statistics such as the number of cells or packets sent and received, and errors.
- Page 21 Clipper USB • Click on the “DSL Advanced” tab to view more advanced statistics.
-
Page 22: Control Panel Application(Mac Os X)
Local/Remote Attenuation: The extent of the local/remote attenuation expressed in decibels (dB) Local SNR Margin: The signal to noise ratio margin. A positive number roughly indicates the number of dB that the noise could increase before the modem produces errors. FEC-Interleaved: Count of local and remote FEC (Forward Error Correction) errors for the interleaved data stream. - Page 23 Clipper USB • The “System info” tab provides general information about the various software/firmware versions.
-
Page 24: Development Mode( Mac Os X)
Development Mode( MAC OS X): Development Mode is intended for OEM only. When in this mode, the Control Panel display Modem configuration information and advanced statistics about the modem. • In order to transition to the Development Mode of the Control Panel, while in the Control Panel, press the “Ctrl +1”... - Page 25 Clipper USB panel previously described. • Click on the “Configuration” tab to view and modify Modulation type, values, Encapsulation Mode and ATM Modes.
- Page 26 Clipper USB • The “ATM” tab provides transmission statistics such as the number of cells or packets sent and received, and errors.
- Page 27 Clipper USB • Click on the “DSL Advanced” tab to view more advanced statistics.
-
Page 28: Installing The Usb Driver On Linux
Clipper USB Local/Remote Attenuation: The extent of the local/remote attenuation expressed in decibels (dB) Local SNR Margin: The signal to noise ratio margin. A positive number roughly indicates the number of dB that the noise could increase before the modem produces errors. FEC-Interleaved: Count of local and remote FEC (Forward Error Correction) errors for the interleaved data stream. -
Page 29: Configuring Pc In Linux
needs to be created before the kernel or any driver module can be compiled. There are lots of books and documents available describing how to extract, configure and build the kernel from it's sources. The driver is compiled and tested for: •... -
Page 30: Connection Pppoa/Pppoe (Windows)
Clipper USB 1.12 Connection PPPoA/PPPoE (Windows) PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP. It provides access control and billing functionality in a manner similar to dial-up services using PPP. Double click on the Clipper Dial-up PPP connection icon on the desktop. -
Page 31: Lan Driver (Rfc 1483 / 1577)
1.13 LAN Driver (RFC 1483 / 1577) For Windows 2000 / XP • Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial- up Connections. • Right–click on Local Area Connection that is using the Clipper USB ADSL LAN Adapter and then click Properties. -
Page 32: For Windows 98Se/Me
• Select Internet Protocol (TCP/IP). Then, click Properties. • Select Use the following IP address, and then enter the IP address, Subnet mask, and Default gateway provided by your ISP. • Select Use the following DNS server addresses and then enter the provided DNS server IP address. For Windows 98SE/ME •... - Page 33 • Select TCP/IP → Clipper USB ADSL LAN Adapter. Then, click Properties. • Select the IP Address tab. In this page, click the Specify an IP address radio button and enter the IP address and Subnet Mask provided by your ISP. •...
-
Page 34: Advanced Configuration
Server IP address provided by your ISP. Then, press the Add button. 1.14 Advanced Configuration Once the Clipper ADSL USB Modem and software have been installed, the communication settings may be easily updated by performing the following steps: From your PC desktop, click Start->Programs->... -
Page 35: Uninstalling The Clipper Usb
1.15 Uninstalling the Clipper USB Windows The setup information for the Clipper is saved by Windows. If you decide to permanently remove the driver and utility of the Clipper from your system, you must run the uninstallation program from the ISDN Utility program group as follows: •... -
Page 36: Mac Os9 / X
unloading the driver. If the module was configured as a WAN device, you may need to disconnect the PPP daemon (pppd) from the TTY interfaces. Do this by terminating the PPP daemon: % killall pppd Mac OS9 / X • Invoke the Uninstaller from the DSL Modem folder (Application ->... - Page 37 Clipper USB • The “Finish” screen will appear. The computer must be restarted to complete the uninstall process. Select “Restart now” and click Finish.
-
Page 38: Support
If you have any other questions you can contact the Atlantis Land company directly at the following address: Atlantis Land SpA Viale De Gasperi, 122 20017 Mazzo di Rho(MI) Tel: +39. 02.93906085, +39. 02.93907634(help desk) Fax: +39. - Page 39 Atlantis Land S.p.A. Viale De Gasperi, 122 Mazzo di Rho – MI – Italy info@atlantis-land.com sales@atlantis-land.com www.atlantis-land.com Where solutions begin Company certified ISO 9001:2000...
