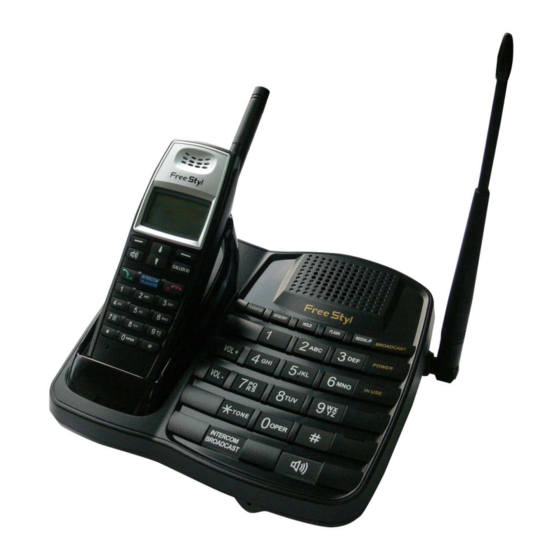

EnGenius FreeStyl 1 User Manual

Digital long range cordless phone
Hide thumbs Also See for FreeStyl 1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version
User Manual
Digital Long Range Cordless Phone
EnGenius Customer Service
United States: 1-888-735-7888
Canada: 1-888-397-2788

Table of Contents

Safety Instructions ................................................................... 4
General Safety Instructions .................................................. 4
Product Safety Instructions .................................................. 4
Battery Safety Instructions ................................................... 6
Regulatory Information ............................................................ 7
Equipment Checklist ................................................................ 8
Handset Illustration .................................................................. 9
Handset Features .................................................................. 10
Basic Handset Features ..................................................... 10
Additional Handset Features .............................................. 12
Base Illustration ..................................................................... 17
Base Features ....................................................................... 18
Basic Base Station Features .............................................. 18
Charger Illustration ................................................................ 20
Charger Features................................................................... 21
Getting Started ...................................................................... 22
Base Station Installation ..................................................... 22
Handset and Charger Installation ....................................... 23
Basic Operations ................................................................... 24
Operation Modes ................................................................ 24
A. Base Operation Modes .............................................. 24
B. Handset Operation Modes ......................................... 24
Making a Telephone Call ................................................... 26
Making an 2-Way/ Intercom Call ........................................ 27
A. Handset to Handset Calls........................................... 27
B. Intercom/2-Way from Base to Handset ...................... 27
C. Intercom/2-Way from Handset to Base ...................... 28
Making a Broadcast ........................................................... 28
A. Handset to Handset Calls........................................... 28
B. Broadcasting from Base to Handset ........................... 29
C. Broadcasting from Handset to Base .......................... 29
Redial ................................................................................. 30
Receiving a Telephone Call ............................................... 30
Receiving an Intercom Call ................................................ 31
~2~

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FreeStyl 1 and is the answer not in the manual?

Questions and answers

Related Manuals for EnGenius FreeStyl 1

Summary of Contents for EnGenius FreeStyl 1

  • Page 1: Table Of Contents

    Safety Instructions ..............4 General Safety Instructions ..........4 Product Safety Instructions ..........4 Battery Safety Instructions ........... 6 Regulatory Information ............7 FreeStyl 1 Equipment Checklist ..............8 Handset Illustration ..............9 Digital Long Range Cordless Phone Handset Features ..............10 Basic Handset Features .............

  • Page 2: Safety Instructions

    Ending a Call ..............32 Safety Instructions Adjusting Handset Receiver (Earpiece) Voice Volume ..32 Caution: Your wireless telephone gives you freedom and flexibility to stay Adjusting Handset Speakerphone Voice Volume ....32 in touch while you move around. However, when using your phone Adjusting Base Speakerphone Voice Volume ....

  • Page 3: Battery Safety Instructions

    3. Changes or modifications to this product not expressively approved by 15. Do not place conductive objects over or near the antenna. the manufacturer will void the warranty and the FCC authorization to 16. Do not use the product to report a gas leak while in the vicinity of the operate the equipment.

  • Page 4: Regulatory Information

    Regulatory Information Equipment Checklist FreeStyl 1 In a Base + Handset package, please find the following components: FCC ID：U2M-FS1 Base Station x 1 IC：3616C-FS1 Base Antenna x 1 Base AC/DC Adaptor x 1 This device complies with Part 15 of the FCC Rules. Operation is subject to...

  • Page 5: Handset Illustration

    Handset Illustration Handset Features Basic Handset Features 1. 4-line LCD (Liquid Crystal Display) a. The LCD display has LED (Light Emitting Diode) for backlighting. b. The 1 line of LCD consists of icons. c. Icons explanation from left to right (1) RSSI (Receive Signal Strength Indicator) During a call, the number of bars is proportional to the radio signal strength...

  • Page 6: Additional Handset Features

    a. Places or answers a telephone or intercom call b. Sends a Flash signal to phone line to retrieve a dial tone after the Additional Handset Features call ends, or to perform the call waiting feature provided by local phone companies during a call. 1.
  • Page 7 Allow user to pre-program the most frequently used Feature code need to key in that number while setting the call barring into FreeStyl 1 which is adjunct to the PBX system. [Note] you need to key in the accurate user ID and password to perform b.
  • Page 8 24. DTMF Duration a. From MENU-6-1 to select variable duration of DTMF tone. b. Default is 100ms. When entering the base setting, PIN is required. Default is “0000”. Re: Better to check with your phone company first before changing it. 25.

  • Page 9: Base Illustration

    Base Illustration Base Features Basic Base Station Features 1. Antenna a. The antenna port has a reverse thread connector; to remove antenna or cable, turn clockwise; to install, turn counterclockwise. Improper installation may damage the connector b. When using an outdoor antenna, locate the antenna (not the base station itself) as high as possible for a clear transmission path.

  • Page 10: Charger Illustration

    speed dial memory during the talking. Charger Illustration HOLD ( ): press the key to put the call on hold. d. FLASH ( ): press the key to send a Flash signal to phone line to DC in retrieve a dial tone after the call ends, or to perform the call waiting feature provided by local phone companies during a call.

  • Page 11: Charger Features

    Charger Features Getting Started Base Station Installation 1. DC In There are three possible base station setups: Connects to Charger AC Adaptor. Base station alone 2. Handset Charging Slot Base station plus telephone answering device Base station plus standard telephone a.

  • Page 12: Handset And Charger Installation

    Basic Operations Handset and Charger Installation Operation Modes 1. Plug the transformer end of the Charger AC/DC adaptor into a standard AC electric power outlet, plug the other end into the “DC In” jack on the Both the base station and handset have levels of operation at which time back of the Charger.

  • Page 13: Making A Telephone Call

    Making a Telephone Call 3. Menu Tree A. From Handset Menu 1.KeyGuard Press , wait for dial tone, and then enter phone 2.PhoneBook number. 3.Sounds 1.Ring Volume 2. Alternatively, you can enter phone number first then 2.Ring Tone press key. 3.Key Voulme When using this method, you can use the CLEAR...

  • Page 14: Making An 2-Way/ Intercom Call

    Making an 2-Way/ Intercom Call 2. The base will ring, until press the key to connect The FreeStyl 1 Cordless Phone System offers private, Intercom/ 2-way radio the intercom call with the handset. calls independence of base station. Intercom/ 2-way communication can be placed from or to base stations and handsets.

  • Page 15: Broadcasting From Base To Handset

    opened up. once you hear the “beep” sound; the speakerphone d. Press of the base will be opened up key to end the broadcasting. d. Press the key to end the broadcasting. B. Broadcasting from Base to Handset 1. Broadcast to all handsets Redial a.

  • Page 16: Receiving An Intercom Call

    the call. Unlike turning off the ringer (from the handset menu), Ending a Call SILENT key operation is valid only for the current call. If Caller ID service is available, the LCD will display the incoming call information. If the LCD shows “Private” or A.

  • Page 17: Placing A Call On Hold

    2. For temporary silencing the ringer when an incoming call arrives, press SILENT (Left) soft key. Placing a Call On Hold Key Guard 1. When a call is in progress, it can be put on hold by 1. To prevent accidental dialing, you can press MENU pressing the key.

  • Page 18: Advanced Operations

    Advanced Operations Notes: The base has a 30 second registration timeout starting from Handset Registration pressing the REG button. The handset has a 12 second registration timeout starting from the registration or de- 1. If your handset(s) is purchased as part of a system, it has been pre- registration option has been selected.

  • Page 19: Call Transfer

    1. Press base handsets subscribed to this group will ring. The first handset to key to put the call on hold. answer will establish a link with the caller. Afterward, it is a one- When call on hold, the base In Use & speakerphone LED to-one call, not a one-to-many call.
  • Page 20 A “Pause” entry represents a 1 second delay in dialing the following are looking for. digits, which is useful when calling a sequence of segmented c. For example, you are looking for “EnGenius”, and then press the numbers (e.g., access code, credit card number, auto-attendant number “3” once.

  • Page 21: Call Barring

    d. Use 3. Use scrolling key to locate the exact record you are scrolling key to switch between On Call Barring looking for. and Off of this setting. Press SELECT to confirm your selection. 7. To erase phonebook: Re：The default of Call barring is “Off”. SELECT BACK a.

  • Page 22: Caller Id

    (Left) soft key to add a new entry of Notes: feature call. This feature call would be useful if the FreeStyl 1 base unit is adjunct d. Key in the name of feature call, like editing a to a PBX system, phonebook entry, i.e.

  • Page 23: Base Speed Dial Setting

    (3) After above process, the call log saved into phonebook. b. Delete call log: Base Speed Dial Setting (1) Press SELECT (Right) soft key followed by 1. You can store up to 20 entries in the speed dial memory. Each speed (Left) soft key to confirm deleting.

  • Page 24: Menu Operations

    Menu Operations 1. Press MENU (Right) soft key to enter menu mode while the phone is in standby mode. Menu 1.KeyGuard Re: You can either press , followed by SELECT (Left) soft 2.PhoneBook key to confirm the selected menu. Or Press the digit directly to confirm the selected menu.
  • Page 25 (Left) soft key to select and confirm on or off. The to scroll through option 1~3 (1.English Default PIN is “0000”. 2.Spanish 3.French ). Default is “English”. Re: When setting “on”, the FreeStyl 1 will automatically hang up if the Press SAVE (Left) soft key to confirm selection.

  • Page 26: Index

    To avoid mis-setup of Call Settings (MENU-4), Phone Settings (MENU-5) Index and Base Settings (MENU-6), you can hide these menus, so that other handset users won’t have chance to mis-settup these settings. Re: When entering the Menu Display, you have to enter password first. 2-Way/Intercom, 11, 18, 26, 27 a.
  • Page 27 Charger Illustration, 19 Line Jack, 17, 21 Lithium-Ion (Li-Ion), 8 De-registration, 34,35, 49 Line Reversal, 49 DND, 12 Line Ring, 46 Do Not Disturb (Silent Ring), 12, 32 DTMF Tone, 15 DTMF Duration, 15, 49 Making a Broadcast, 27 Making a Telephone Call, 25 Electric Shock, 4, 5 Making an 2-Way/ Intercom Call, 26 Emergency, 4...
  • Page 28 Ringer Volume, 11, 12, 18 Technical Specifications RSSI, 10 Electrical Specifications Base Station Portable Handset Frequency 902-928 MHz 902-928 MHz Safety Instructions, 4 RF Power Peak: 708 mW Peak: 708 mW Average: 304 mW Average: 76 mW SILENT, 12, 13, 29, 30, 32, 33 Channel Spacing 200 kHz 200 kHz...
