EN
User Manual
L 87696 WD
Washer Dryer

Advertisement

Table of Contents
loading

Related Manuals for AEG L 87696 WD

Summary of Contents for AEG L 87696 WD

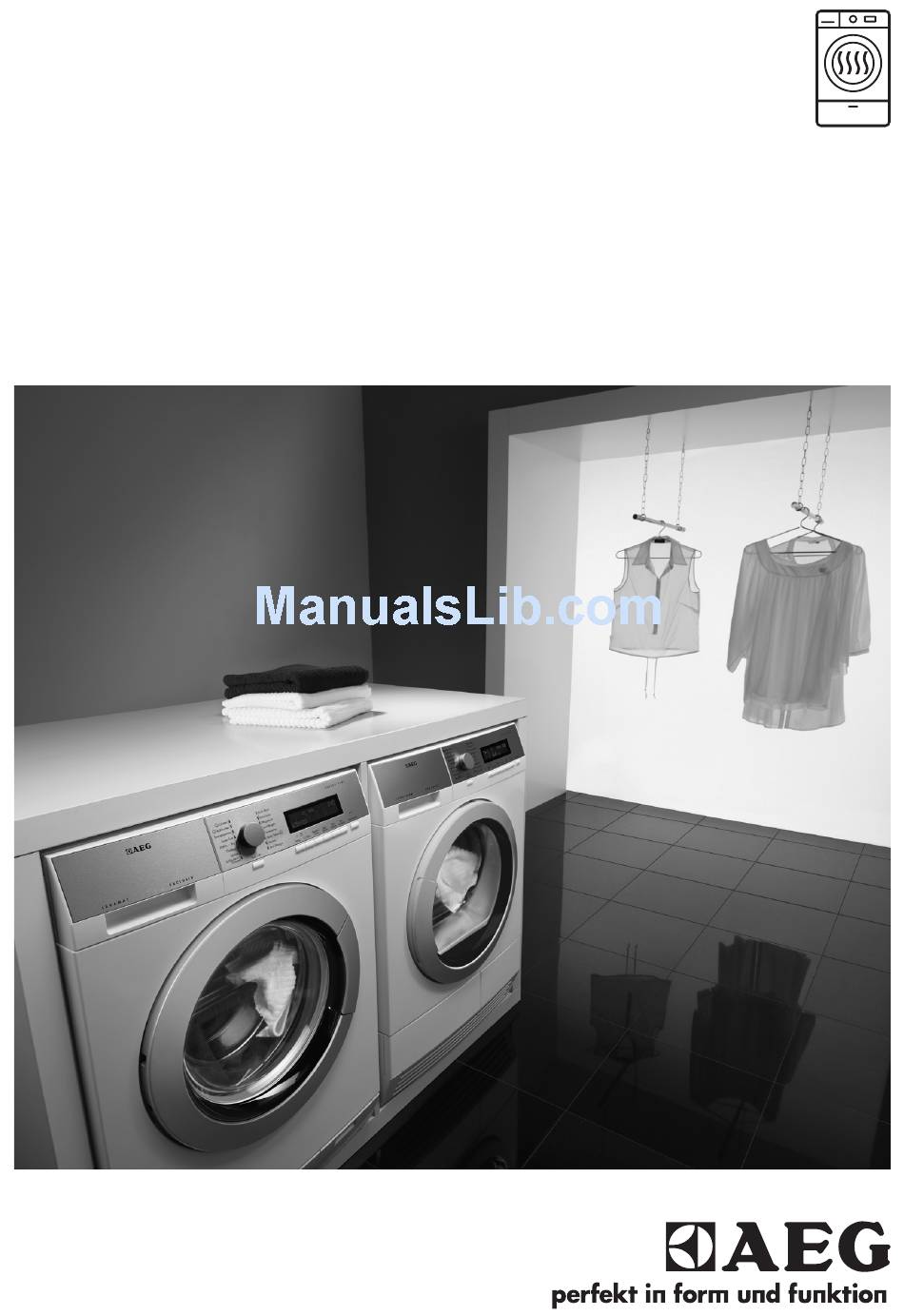

  • Page 1 User Manual L 87696 WD Washer Dryer...

  • Page 2: Table Of Contents

    15. TECHNICAL DATA..................... 35 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
  • Page 4 Connect the mains plug to the mains socket only at • the end of the installation. Make sure that there is access to the mains plug after the installation.

  • Page 5: Safety Instructions

    ENGLISH or pillows fitted with foam rubber pads should not be dried in the wash dryer. Fabric softeners, or similar products, should be used • as specified by the fabric softener instructions. Remove all objects from pockets such as lighters and •...
  • Page 6 • The appliance must be earthed. • Do not put flammable products or • Always use a correctly installed items that are wet with flammable shockproof socket. products in, near or on the appliance. • Do not use multi-plug adapters and •...

  • Page 7: Product Description

    ENGLISH 3. PRODUCT DESCRIPTION 3.1 Appliance overview Worktop Detergent dispenser Control panel Door handle Rating plate Drain pump filter Feet for the appliance level 3.2 How to activate the child To help prevent vibration we recommend you place a waterproof safety device wood panel, at least 15 mm thick under the appliance, secured to at least 2 floor...

  • Page 8: Control Panel

    4. CONTROL PANEL 4.1 Control panel description Cottons Synthetics Easy Iron Delicates Wool/Silk 20 Min. - 3 kg Rinse Spin/Drain On/Off On/Off button Time Save button Programme knob Extra Rinse button Display Stains/Prewash button Drying Level button Spin button...
  • Page 9 ENGLISH Spin speed of the set programme No Spin symbol Rinse hold symbol 1) Only available for SPIN/DRAIN programme. The phase symbols When a programme is set, all the symbols of the phases related to the programme come on. When the programme starts, only the symbol of the phase in operation flashes. When the programme is completed, the symbol of the last phase is on.
  • Page 10 Programme time (washing and/or drying phase) When the programme starts, the programme time decreases with steps of 1 minute. Delay start When you press the delay start button, the display shows the delay start time Alarm codes If the appliance has a malfunction, the display shows alarm codes.

  • Page 11: Programmes

    ENGLISH The Time Save symbol comes on when you set one of the pro- gramme duration. Shortened time Extra Quick The Extra Rinse symbol comes on when this function is activated. The value shows the total number of the rinses. The indicator bar is fully filled when you set the maximum number of rinses.
  • Page 12 Programme Maximum load Programme description Temperature Maximum spin (Type of load and soil level) range speed Delicate fabrics as acrylics, viscose, polyester 4 kg items. Normal soil. 1200 rpm Delicates 40°C - Cold 1.5 kg Machine washable wool, hand washable wool and 1200 rpm delicate fabrics with «hand washing»...
  • Page 13 ENGLISH Programme Maximum load Programme description Temperature Maximum spin (Type of load and soil level) range speed Steam programmes Steam can be used for dried, washed or worn once laundry. These programmes can reduce creases and odours and make your laundry more soft. Do not use any detergent.
  • Page 14 Programme options compatibility Programme Stains/ Extra Time Delay Pre- Spin Start Rinse Save wash Cottons ■ ■ ■ ■ ■ ■ Synthetics ■ ■ ■ ■ ■ ■ Easy Iron ■ ■ ■ ■ ■ ■ Delicates ■ ■...
  • Page 15 ENGLISH Dryness Level Type of fabric Load Cottons and Linen up to 6 kg Iron Dry (sheets, tablecloths, shirts, Suitable for ironing etc) 1) Hints for test institute The test performance, in accordance with EN 50229, must be carried out with a FIRST drying load of 6 kg (load composition : pillowcase and towels) by setting the AUTOMATIC CUP- BOARD DRY programme for Cotton.

  • Page 16: Consumption Values

    In UK, Eire, Hong Kong and India the according to the instructions issued Woolmark symbol is a certification by the manufacturer of this machine. trademark. Follow the garment care label for other laundry instructions. M1224 6.

  • Page 17: Delay Start

    ENGLISH Press the button On/Off to activate • Prewash: Use this option to add a the appliance again. prewash phase before the washing Set again the washing programme phase. and all possible functions. We recommend that you use this • After 5 minutes from the end of the option when you have laundry with a washing programme high level of soil.

  • Page 18: Settings

    Each time you press this button the time • Cupboard dry – laundry to be put value increases by 5 minutes. in store You cannot set all time values for different types of • Extra dry – laundry to be fully fabrics.
  • Page 19 ENGLISH 9.4 Check the position of the flap 1. Pull out the detergent dispenser until it stops. 2. Press the lever down to remove the dispenser. CAUTION! Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.
  • Page 20 9.7 Starting a programme With the flap in the position DOWN: without the delay start • Do not use Press button Start/Pause to start the gelatinous or thick programme. liquid detergents. The relevant indicator stops to flash and • Do not put more stays on.
  • Page 21 ENGLISH 9.14 End of cycle The related indicator flashes. 2. Press button Delay Start repeatedly When the programme has finished, the until the display shows . appliance stops automatically. The 3. Press button Start/Pause again to acoustic signal operates (if it is active). start the programme immediately.

  • Page 22: Daily Use - Drying Only

    9.16 AUTO Stand-by option The display shows the end of the last set programme. The AUTO Stand-by function Turn the programme knob to set a automatically deactivates the appliance new cycle. to decrease the energy consumption If you set a programme or an...

  • Page 23: Daily Use - Washing & Drying

    ENGLISH The door locked symbol comes on. The drying symbol starts to flash. The drying symbol starts to flash. The door locked symbol comes on. If you set the time value of The symbol of the set level stays on only 10 minutes, the (e.g.
  • Page 24 11.1 NON-STOP programme To have a good drying the appliance does not let you WARNING! set a too low spin speed for Do not put a plastic device/ the items to be washed and ball for the detergent into dried.
  • Page 25 ENGLISH To have a good drying we 7. When the door locked light goes suggest you to do not set a off you can open the door. too low spin speed for the 8. Remove the laundry from the items to be washed and appliance.

  • Page 26: Hints And Tips

    12. HINTS AND TIPS 12.3 Detergents and additives WARNING! Refer to Safety chapters. • Only use detergents and additives specially made for washing machines: 12.1 The laundry load – powder detergents for all types of fabric, • Divide the laundry in: white, coloured, –...

  • Page 27: Care And Cleaning

    ENGLISH Use the correct quantity of the water • = The item can not be tumble softener. Obey the instructions that you dried. find on the packaging of the product. 12.9 Drying cycle duration 12.6 Drying hints The drying time can change depending Prepare the drying cycle •...

  • Page 28: Door Seal

    13.2 Descaling the drum. Make regularly a maintenance wash. To do this: If the water hardness in your area is high • Remove the laundry from the drum. or moderate, we recommend that you • Set the cotton programme with the...
  • Page 29 ENGLISH 13.6 Cleaning the inlet hose and the valve filter 45° 20° 13.7 Cleaning the drain filter Do not clean the drain filter if the water in the appliance is hot.
  • Page 30 www.aeg.com...

  • Page 31: Troubleshooting

    ENGLISH 13.8 Emergency drain 0° C, remove the remaining water from the inlet hose and the drain pump. Because of a malfunction, the appliance 1. Disconnect the mains plug from the cannot drain the water. mains socket. If this occurs, do steps (1) through (9) of 2.
  • Page 32 Problem Possible solution Make sure that the appliance door is closed. Make sure that there is not a damaged fuse in the fuse box. Make sure that the Start/Pause has been pressed. If the delay start is set, cancel the setting or wait for the end of countdown.
  • Page 33 ENGLISH Problem Possible solution Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems. There is water on the Make sure that the couplings of the water hoses are tight and floor.
  • Page 34 Problem Possible solution Reduce the laundry load. Make sure you have set the correct cycle. if necessary ,set again a short drying time. The laundry is full of dif- The fabrics washed in the previous cycle released fluff of a dif- ferent colours fluff.

  • Page 35: Technical Data

    ENGLISH 15. TECHNICAL DATA Dimension Width/ Height/ Depth/ 600 mm/ 850 mm/ 605 mm/ 639 mm Total depth Electrical connection Voltage 230-240 V Overall power 2200 W Fuse 13 A Frequency 50 Hz Level of protection against ingress of solid particles IPX4 and moisture ensured by the protective cover, ex- cept where the low voltage equipment has no pro-...
  • Page 36 www.aeg.com/shop...
