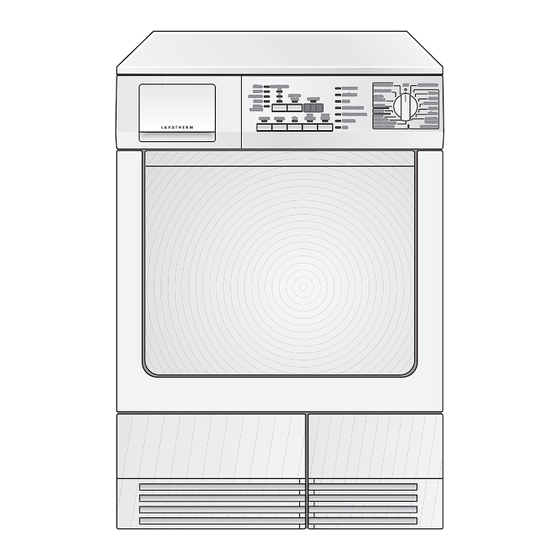

- Page 1 LAVATHERM 57810 Condenser dryer User information...
-
Page 2: Dear Customer
Dear Customer, Please read this user information carefully and keep it to refer to later. Please pass the user information on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance. -
Page 3: Table Of Contents
Contents Operating Instructions Safety ............Disposal . - Page 4 Technical data..........24 Consumption values.
-
Page 5: Operating Instructions
Operating Instructions 1 Safety Prior to initial start up • Note the ”Installation and connection instructions” • Before first starting up, check the machine for any damage incurred during transport. Never connect a damaged machine. If parts are damaged, contact your supplier. Intended use •... -
Page 6: Disposal
Child safety • Keep packaging away from children. Risk of suffocation! • Children can often not see the dangers associated with electrical ap- pliances. Never leave unsupervised children near the dryer. • Ensure that children and small animals cannot climb into the dryer’s drum. -
Page 7: Environmental Tips
Old appliance The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of elec- trical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. -
Page 8: Description Of Machine
Description of machine Water reservoir Lamp for interior illumination Micro-fine filter (lint filter) Rating plate Base door upstream of heat exchanger Operating screen INTENSITY button Display showing level of dryness Block of buttons and displays Air slots Multi-display Programme progress display DELAY TIMER button Maintenance displays... -
Page 9: Before The First Drying Cycle
Before the first drying cycle In order to remove any residue which may have been produced during production, wipe the dryer drum with a damp cloth or undertake a brief drying cycle (30 MIN) with damp cloths. Sorting and preparing laundry Sorting laundry •... -
Page 10: Overview Of Programmes
Overview of programmes Programme EXTRA DRY INTENSIVE STORAGE DAMP HAND IRON MACHINE IRON EXTRA DRY STORAGE DAMP 1) SPECIAL CARE and SENSITIVE cannot both be selected at the same time. 2) Press the SPECIAL CARE button! Additional functions Application/properties Drying thick or multi-layered tex- •... - Page 11 Additional functions Programme 30 MIN • LEISURE • EASY IRON • WOOL CARE • REFRESH • 1) SPECIAL CARE and SENSITIVE cannot both be selected at the same time. 2) Press the SPECIAL CARE button! Application/properties For drying individual items of laundry •...
-
Page 12: Drying
Drying Switching machine on / switching light on Turn the programme selector to any programme or turn it to LIGHT. The machine has been switched on. When the door is opened, the drum is illuminated. Opening loading door / filling laundry 1. -
Page 13: Selecting Additional Functions
Selecting additional functions INTENSITY Precise setting of humidity content of laundry. Laundry becomes dryer from + to +++. 1. Press the INTENSITY button as many times as necessary until the small light at the level of residual dampness required is illuminated. If required, press the AUDIBLE SIGNAL, SPECIAL CARE or SENSI- TIVE buttons. -
Page 14: Setting Time Delay
Setting time delay With the DELAY TIMER button, you can delay the start of a programme by between 30 minutes (30' and a maximum of 23 hours (23h). 1. Select the programme 2. Press the DELAY TIMER button as many times as necessary until the re- quired start delay appears on the multi display, e.g. -
Page 15: Removing Laundry Or Loading Laundry When Necessary
Removing laundry or loading laundry when necessary 1. Open loading door Warning! Laundry and drum can become hot. Risk of burns! 2. Load or remove laundry items. 3. Close the door securely. Lock must audibly lock. 4. Press the START/PAUSE button to continue the drying cycle. Drying cycle complete / removing laundry Once the drying cycle is complete, the END and CREASE GUARD dis- plays light up. -
Page 16: Cleaning And Maintenance
Cleaning and maintenance Cleaning lint filter To ensure that the dryer works efficiently, the lint filters (micro-fine fil- ter and fine strainer) must be cleaned after every drying cycle. Caution! Never operate the dryer without fluff filters or with damaged or blocked fluff filters. -
Page 17: Cleaning The Door Seal
Clean the entire filter area The strainer area does not have to be cleaned after every drying cycle, but should be checked regularly and cleaned of fluff if necessary. 6. To do this, grip the top of the large mesh filter and pull it forwards un- til it comes loose from the two brackets. -
Page 18: Emptying The Water Reservoir
Emptying the water reservoir Empty water reservoir after every drying cycle. If the water reservoir is full, an active programme will be interrupted automatically and the EMPTY WATER display will light up. In order to continue the programme, the water reservoir must be emptied. Warning! The condensed water is not suitable for drinking or for pre- paring foodstuffs. -
Page 19: Cleaning Heat Exchanger
Cleaning heat exchanger If the HEAT EXCHANGER display is illuminated, the heat exchanger needs to be cleaned. Caution! Operating when the heat exchanger is clogged with lint can damage the dryer. This also increases energy consumption. 1. Open loading door 2. -
Page 20: Cleaning The Drum
Cleaning the drum Caution! Do not use abrasives or steel wool to clean the drum. Lime in the water or cleaning agents may form a barely visible lining on the inside of the drum. The degree to which the laundry has been dried is then no longer detected reliably. - Page 21 Problem Wrong programme selected. Lint filter clogged. Heat exchanger clogged with lint. Drying results unsatis- Overloading of laundry. factory. Ventilation slots in base area covered up. Residue on inside surface of drum or drum ribs. Mains plug disconnected. Loading door does not open with DOOR but- Programme selector in OFF ton.
-
Page 22: Changing Bulb For Interior Light
Problem Drying cycle ends shortly after pro- gramme starts. END display illuminated. Drying cycle lasts an unusually long time. Note: After around 5 hours the drying cycle ends automatically (see „Drying cycle com- plete“). Changing bulb for interior light Only use a special bulb which is designed specially for dryers. The spe- cial bulb is available from the local Service Force Centre. -
Page 23: Programming Options
Programming options Objective Permanently programme in the audible signal which reminds you that the programme is com- plete. Adjust “level of dryness” detection: If the laundry is slightly drier or slightly damper at the end of the pro- gramme than with the standard setting. -
Page 24: Technical Data
Technical data This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC – 93/68/EEC dated 22.07.1993 CE Marking Directive Height x width x depth Depth with loading door open Height can be adjusted by Weight when empty... -
Page 25: Installation And Connection Instructions
Installation and connection instructions 1 Installation safety instructions • Before first starting up, all parts of the transport safety devices must be removed. The machine may otherwise be damaged. • Before using for the first time, ensure that the nominal voltage and type of current specified on the machine rating plate match the nominal voltage and type of current at the installation site. -
Page 26: Electrical Connection
3. Remove foil hose and polystyrene padding from the machine. Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING – THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should these safety measures not be observed. -
Page 27: Permanent Connection
• Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath. WARNING! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that the cut off plug is disposed of safely. Permanent Connection In the case of a permanent connection it is necessary that you install a double pole switch between the appliance and the electricity supply... -
Page 28: Door Reversal Instructions
Door reversal instructions Warning! The door may only be reversed by a specialist. If necessary, please contact your local Service Force Centre. Warning! Before reversing the door, disconnect the mains plug; with a permanent connection: remove the fuse. 1. Open door. 2. -
Page 29: Special Accessories
These intermediate installation kits can be used to arrange the dryer and an automatic AEG-Electrolux washing machine (60cm wide, front loading) as a space-saving washer/dryer stack. The automatic washing machine is at the bottom and the dryer is at the top. -
Page 30: Warranty Conditions
Warranty conditions Great Britain Standard guarantee conditions We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 31: Service And Spare Parts
0870 5 929 929 For Customer Service in the Republic of Ireland please contact us at the ad- dress below: AEG/ Electrolux Group (Ire) Ltd Long Mile Road/ Dublin 12 Republic of Ireland Tel: +353 (0) 1 4090754 Email: service.eid@electrolux.ie... - Page 32 From the Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
