Install these cables with the bead end of
the cable connected to the Interface Module
3
1
2
For future applications
ATTENTION!
Connect Cables in sequence 1 to 4.
1) Cable 1 is for Subwoofer. Ships with Subwoofer ONLY.
2) Start with Cable 2 if Subwoofer is not included.
3) If unit fails to power up, disconnect all cables and
reconnect in sequence shown.

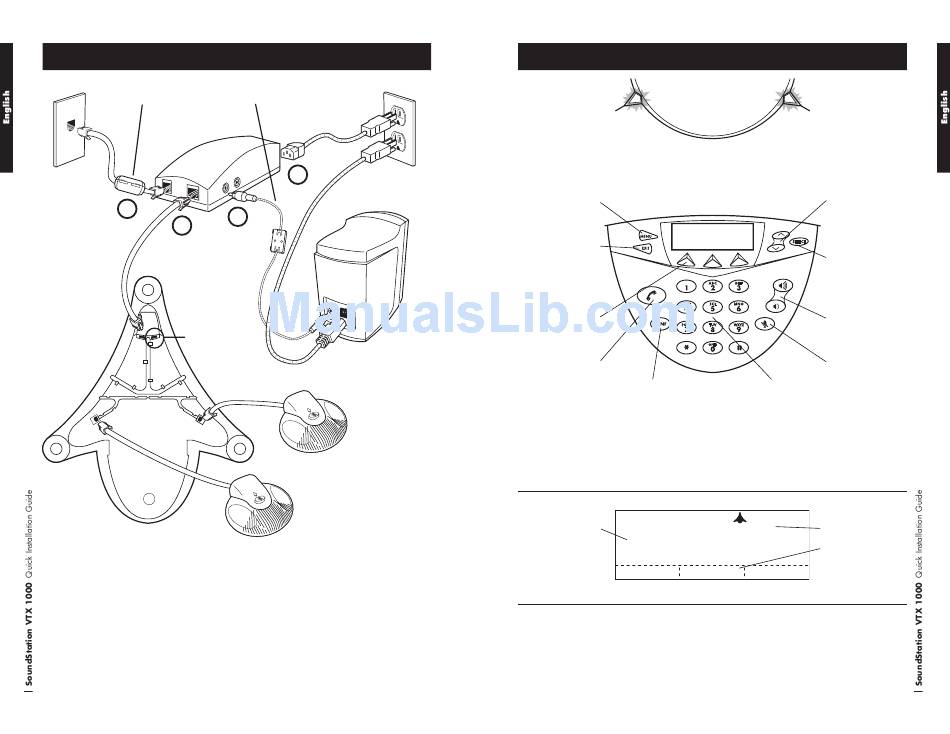

Connection Diagram

Power cables may differ
4
Position subwoofer on
floor - not on tabletop
Extension Microphones optional
Extend microphones completely
for best performance
SoundStation VTX 1000 Interface
LEDs
Green - Your call is in progress.
Blinking Green - A call is incoming.
Red - Your call is muted.
Blinking Red - Your call is on hold.
Buttons
Menu Button
Displays a menu of
settings and options
Exit Button
Exits from current
screen to previous level
Soft Keys
Select the actions that
are currently displayed
Phone Button
Answer an incoming
call, get a dial tone,
Conference Button
initiate an entered call,
Call, join, or hang-up
or hang up a call
additional call participants
on properly configured
enterprise phone networks
Note: Also known as
FLASH or R on other
Polycom products.
LCD
Information and
R
Input Area
EADY
Displays of
information, menus,
SPDIAL PHBOOK
and input areas
Multipoint Conference Bridging
The SoundStation VTX1000 is a
conference phone and can only perform
multipoint bridged conference calls on
a properly configured enterprise phone
network or when multipoint calls are
Scroll Buttons
Navigate up or down
through displayed lists
Select Button
Select a highlighted
item from a menu
Volume Buttons
Adjust the speaker and
ringer volume
Mute Button
Turn mute on or off
Dialing Keypad
Enter numbers
or letters
(555)555-1111
This Phone's Number
Soft Key Functions
Actions you can currently
REDIAL take, based on the state
of the phone
placed through a conference bridge
or a bridging service. Please contact
your telephone system administrator
for further details.
