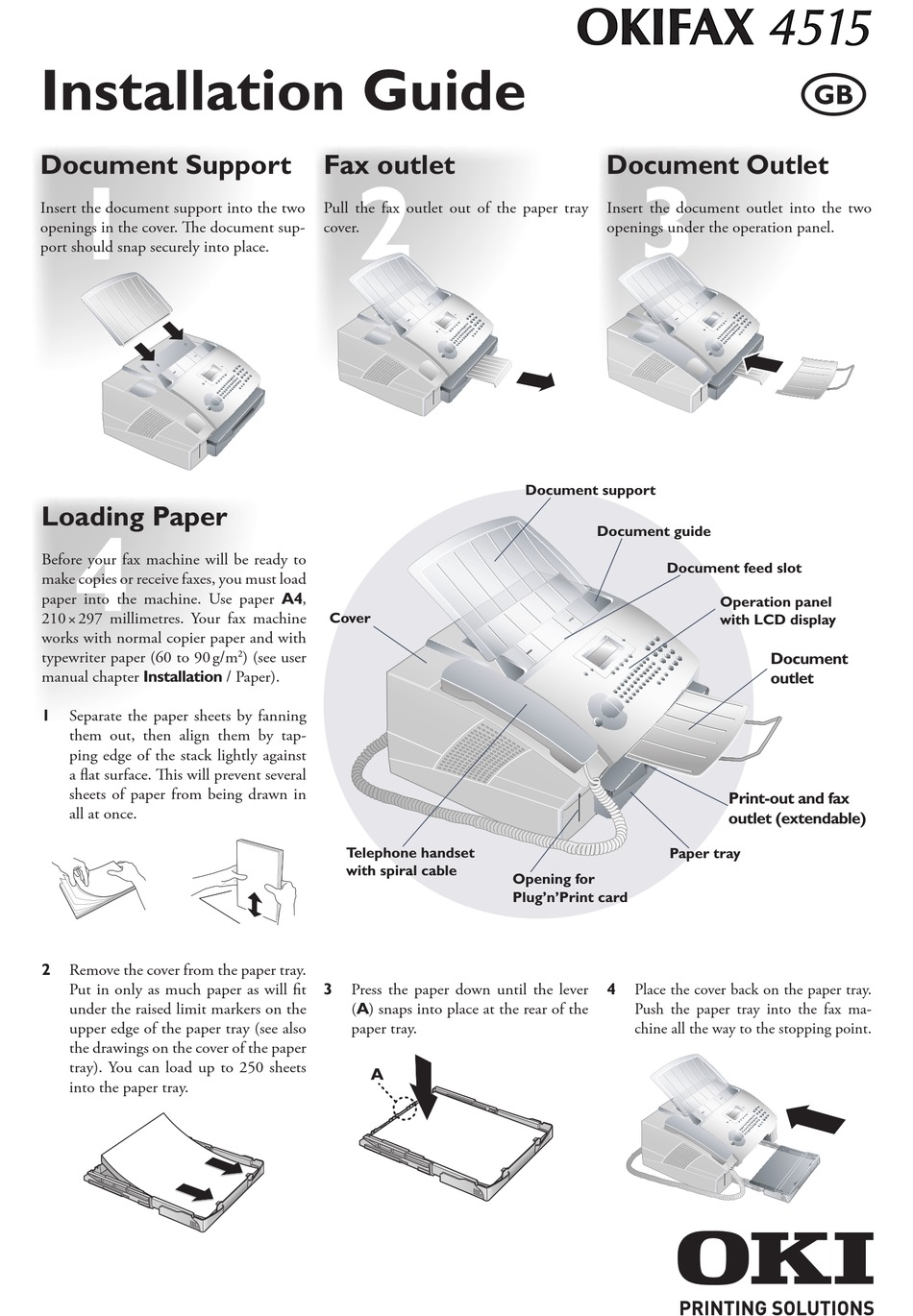

Oki KIFAX 4515 Installation Manual

Installation Guide

Document Support

Insert the document support into the two
openings in the cover. The document sup-
port should snap securely into place.

Loading Paper

Before your fax machine will be ready to
make copies or receive faxes, you must load
paper into the machine. Use paper A4,
210 × 297 millimetres. Your fax machine
works with normal copier paper and with
typewriter paper (60 to 90 g/m
manual chapter Installation / Paper).
1 Separate the paper sheets by fanning
them out, then align them by tap-
ping edge of the stack lightly against
a flat surface. This will prevent several
sheets of paper from being drawn in
all at once.
2 Remove the cover from the paper tray.
Put in only as much paper as will fit
under the raised limit markers on the
upper edge of the paper tray (see also
the drawings on the cover of the paper
tray). You can load up to 250 sheets
into the paper tray.
Fax outlet
Pull the fax outlet out of the paper tray
cover.
Cover
2
) (see user
Telephone handset
with spiral cable
Press the paper down until the lever
3
(A) snaps into place at the rear of the
paper tray.
Document Outlet
Insert the document outlet into the two
openings under the operation panel.
Document support
Document guide
Document feed slot
Paper tray
Opening for
Plug'n'Print card
Place the cover back on the paper tray.
4
Push the paper tray into the fax ma-
chine all the way to the stopping point.
G
Operation panel
with LCD display
Document
outlet
Print-out and fax
outlet (extendable)
