D-Sub Pin Assignments

PC 15-Pin mini D-Sub
Pin No. Signal to be connected
1 Red
2 Green
3 Blue
4 GND
5 GND
6 Red GND
7 Green GND
8 Blue GND
9 No Connection
10 Digital GND
11 GND
12 No Connection
13 Horizontal Sync
14 Vertical Sync
15 No Connection

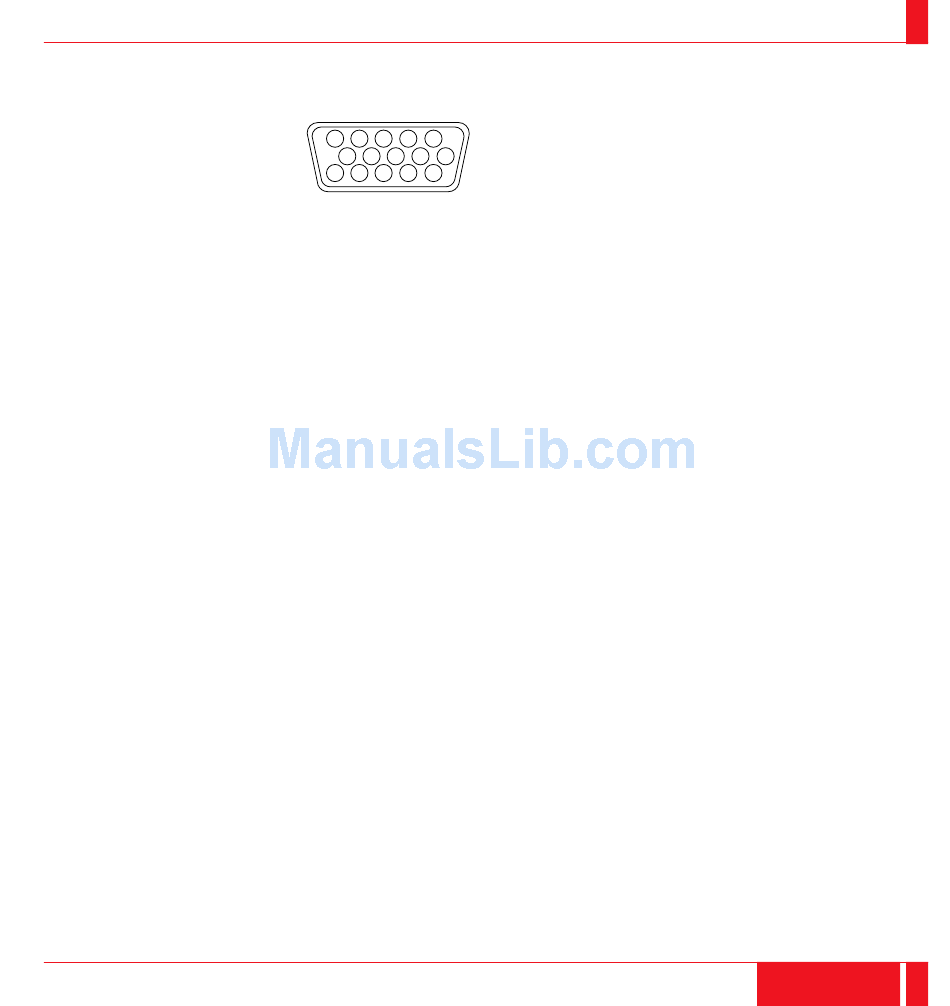

PC 15-Pin mini D-Sub
4 3 2 1
5
10 9 8 7 6
13
15 14 12 11
