Helion Invictus 10MT Owner's Manual And Exploded Views

1/10th scale 4x4 brushless powered monster truck
Hide thumbs Also See for Invictus 10MT:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Owner's Manual and Exploded Views

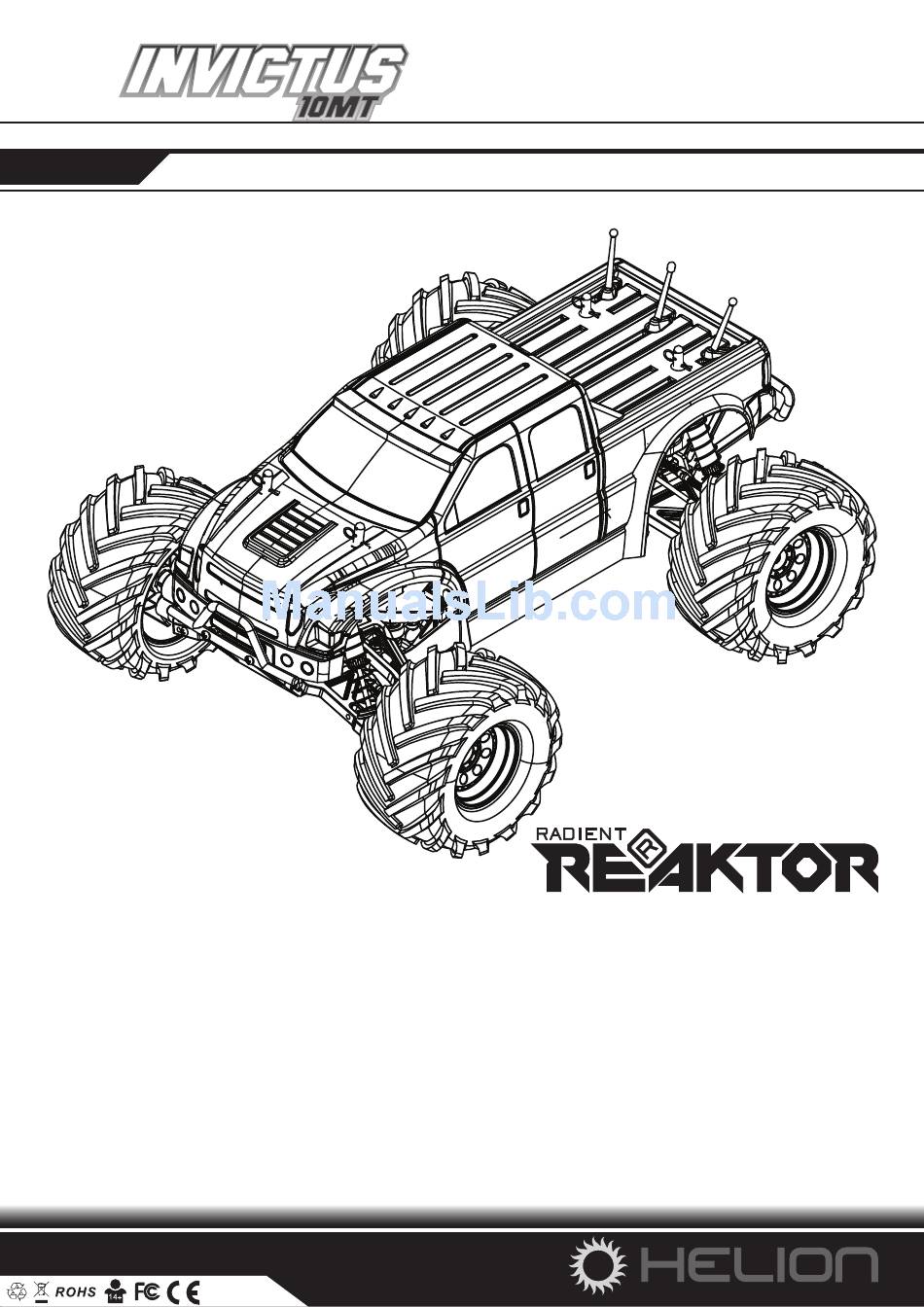

HLNA0249
OWNER'S MANUAL AND EXPLODED VIEWS
LENGTH
422mm (16.61in)
WIDTH
337mm (13.27in)
HEIGHT
196mm (7.72in)
WHEELBASE
275mm (10.83in)
WHEEL DIAMETER
55.88mm (2.2in) x 72mm (2.83in) x 45.20mm (1.78in)
TIRE SIZE
F/R: 127mm (5.00in) x 68.5mm (2.69in)
WHEEL OFFSET
12mm Hex x 18.6mm (0.73in)
WEIGHT*
2645g (5.83lb)
BATTERY
1,800mAh NiMH 8-CELL, 9.6V
MOTOR
RADIENT REAKTOR BRUSHLESS SENSORLESS 3500kV
RADIO
HRS-3.1 2.4GHz 3-CHANNEL
CHARGER
AC WALL TRICKLE
*APPROXIMATE OUT-OF-THE-BOX WEIGHT
• Entire contents ©2013 Helion RC
• Before using your product, review all documentation and inspect the products carefully. If for some reason you decide it is not
what you wanted, then do not continue with unpacking, setup or operation of your product. Your local hobby dealer cannot ac-
cept a product for return or exchange after partaking in actions that produce wear and tear.
• Read, understand and follow all instructions and accompanying material carefully before operating or assembling your vehicle
to prevent serious damage to your vehicle. Failure to complete these tasks properly or intentional aversion to the content will be
considered abuse and/or neglect.
• Product specifications are subject to change without notice. Due to ongoing development, the actual product may vary from
images shown.
• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
• This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision required for ages under 18 years old.
Contains small parts, keep out of reach of children 3 years of age and younger.
1622
1/10th SCALE 4x4
BRUSHLESS POWERED
MONSTER TRUCK
POWERED BY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Invictus 10MT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Helion Invictus 10MT

Summary of Contents for Helion Invictus 10MT

  • Page 1 *APPROXIMATE OUT-OF-THE-BOX WEIGHT POWERED BY • Entire contents ©2013 Helion RC • Before using your product, review all documentation and inspect the products carefully. If for some reason you decide it is not what you wanted, then do not continue with unpacking, setup or operation of your product. Your local hobby dealer cannot ac- cept a product for return or exchange after partaking in actions that produce wear and tear.

  • Page 2: Package Contents

    Patience while reading thoroughly through all of the instructions and guides that will help ensure you get the most out of your new Helion RC product. RECOMMENDED TOOLS (NOT INCLUDED) Please use caution and follow the manufacturer’s recommended operating instructions for these items and always wear eye protection.

  • Page 3: Getting Started

    1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK FEATURES OF THE INVICTUS 10MT • Steel ring and pinion gear type four wheel drive drivetrain. • Adjustable suspension, camber, and front toe. • Radient Reaktor brushless waterproof ESC and motor. • Pivot ball style front suspension with upper arm.
  • Page 4 PRECAUTIONS WHEN USING THE HRS-3.1 RADIO SYSTEM • Your model can cause serious damage or injury so please use caution and courtesy when operating your model. • Do not expose the radio system to water or excessive moisture. • As a safety precaution, perform all transmitter and receiver adjustments with the vehicle’s wheels off the ground. This ensures the complete control over the vehicle at all times during adjustments.

  • Page 5: 2.4 Ghz Fail-Safe Adjustment

    1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK HRS-3.1 BINDING AND FAIL SAFE SETTING Binding the Transmitter and Receiver: The process of allowing communication to occur between a 2.4GHz transmitter and receiver is called “binding” (sometimes referred to as “matching” or “pairing”). The radio system included with your product comes pre-configured and bound from the factory. In the event your system loses binding, one of the components has been replaced, you will need to bind the transmitter and receiver.

  • Page 6: End Point Adjustment

    HRS-3.1 CONNECTION AND CONFIGURATION... Receiver, ESC and Servo Connections: Generic wiring diagram. 1. Channel 1: Steering Servo 2. Channel 2: ESC (Throttle/Brake) Note: An easy way to remember this is 1 to turn, 2 to burn ( as in burn-out ). Digital Trim Settings: •...

  • Page 7: Power Alarm

    Setting the ESC: The ESC in your Invictus 10MT is pre-programmed to work best with the HRS-3.1 radio system. Use with another radio system may not provide consistent performance and is not recommended for beginners. For detailed selup information refer to the Reaktor brushless setup section of this manual.

  • Page 8: Using Your Transmitter For The First Time

    HRS-3.1 STANDARD OPERATION » A second push forward on the trigger will apply reverse throttle. » WARNING: Causing the vehicle to make quick transi- tions from forward/reverse motion to the opposite TURN LEFT TURN RIGHT direction using the throttle control can cause dam- age to your vehicle and electronics and will void the warranty.
  • Page 9 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK ...REAKTOR ESC OVERVIEW AND CALIBRATION... Your ESC has been pre-installed at the factory but before using your vehicle each time it is good to double check the wiring for dam- age or loose connections to ensure everything is in working order before use. Refere to the diagram below to check the connections of your electronics system.

  • Page 10: Programming Your Esc

    You can purchase an adapter from Ultra-Plug (F) to Tamiya style (F) from your local hobby dealer which will allow you to continue to use your included Helion battery after you have changed your main power connector.

  • Page 11: Reset To Factory Defaults

    1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK ...REAKTOR ESC PROGRAMMING CONTINUED... competition racing. Using a setting this low with a LiPo battery may cause excessive “wear and tear” on your batteries, shorten- ing their lifespan. 5. 3.2V/Cell: This setting is recommended as the default for running average grade LiPo batteries. If your batteries are relatively old it is recommended to use setting 6 instead.
  • Page 12 ...REAKTOR ESC PROGRAMMING TREE AND PARAMETERS Use the tabel below to better understand the programming process. This should help you navigate thorugh the programming menu. Turn OFF ESC and Programmable Value (Blinks of RED LED), Black background indicates default settings Programmable Items Transmitter (Blinks of GREEN LED)
  • Page 13 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK OPTIONAL ACCESSORIES FOR YOUR REAKTOR BRUSHLESS SYSTEM 2. Also offered is a 12V fan (RDNA0034). Though the default fan installed on the ESC will work with a 3s LiPo connected, it is recommended that the fan be changed out to a 12V version for extend use with 3s LiPo to prevent premature failure.

  • Page 14: Safety Tips

    However we do encourage experimentation and testing as that’s where the real fun begins! Ride height adjustment: It is possible to adjust the ride height of your Invictus 10MT by installing and or removing adjustment clips located directly above the shock springs.
  • Page 15 If you plan to run for extended periods of time in light or heavy rain It is recommended to secure the receiver in an additional waterproof membrane. Since the Helion HRS-3.1 receiver is a micro size receiver, fitting it into a balloon is fairly easy.

  • Page 16: Storage And Disposal

    ...GENERAL CARE AND MAINTENANCE CONTINUED 01). Disassemble shock and remove shaft from the body. 02). Carefully remove lower cap by unscrewing from the shock body. 03). Remove the O-rings and spacer and replace with genuine replacement parts. 04). Re-assemble the shock following the refilling instructions above. 5.

  • Page 17: Troubleshooting Guide

    1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK TROUBLESHOOTING GUIDE Problem / Symptom Possible Cause Possible Solution Battery voltage too low Charge battery Vehicle will not turn on Battery not connected Re/connect battery Damaged battery Replace battery Transmitter will not turn Battery voltage too low Charge or change batteries Battery/ies installed improperly...
  • Page 18 REAR BUMPER ASSEMBLY REAR BUMPER INSTALLATION...
  • Page 19 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK REAR SUSPENSION PIVOT ASSEMBLY REAR SUSPENSION PIVOT INSTALLATION...
  • Page 20 REAR BUILKHEAD AND SPUR GEAR ASSEMBLY REAR INPUT SHAFT AND MOTOR MOUNT ASSEMBLY...

  • Page 21: Rear Gearbox Assembly

    1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK FRONT/REAR DIFFERENTIAL ASSEMBLY REAR GEARBOX ASSEMBLY...

  • Page 22: Rear Suspension Installation

    REAR GEARBOX INSTALLATION REAR SUSPENSION INSTALLATION...
  • Page 23 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK REAR SHOCK TOWER ASSEMBLY REAR SHOCK TOWER INSTALLATION...
  • Page 24 REAR HUB CARRIER ASSEMBLY REAR HUB CARRIER INSTALLATION...
  • Page 25 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK SHOCK ASSEMBLY SHOCK SPRING INSTALLATION...

  • Page 26: Rear Shock Installation

    REAR SHOCK INSTALLATION CENTER DRIVE SHAFT COVER INSTALLATION...

  • Page 27: Front Bumper Assembly

    1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK FRONT BUMPER ASSEMBLY FRONT BUMPER INSTALLATION...
  • Page 28 FRONT STEERING BLOCK ASSEMBLY FRONT SUSPENSION ASSEMBLY...
  • Page 29 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK STEERING AND SERVO SAVER ASSEMBLY STEERING BELL CRANK INSTALLATION...

  • Page 30: Front Suspension Installation

    FRONT SUSPENSION INSTALLATION FRONT GEARBOX INSTALLATION...
  • Page 31 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK FRONT SHOCK INSTALLATION FRONT STEERING LINK ASSEMBLY...
  • Page 32 SERVO ASSEMBLY AND INSTALLATION FRONT TOP PLATE ASSEMBLY...

  • Page 33: Motor Assembly

    1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK MOTOR ASSEMBLY MOTOR INSTALLATION...
  • Page 34 REAR GEAR COVER INSTALLATION BODY ASSEMBLY AND INSTALLATION...

  • Page 35: Warranty And Service

    1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK WARRANTY AND SERVICE With the purchase of this product you purchased at the same time a two-year warranty from date of purchase. The guarantee applies only to the already existing material on the purchase of the product and / or functional defects. Excluded from the guarantee: ·...

  • Page 36: Declaration Of Conformity

    DECLARATION OF CONFORMITY...
  • Page 37 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK HELION SPARE PARTS LIST... HLNA0062 ..PINION GEAR, 14T, 32P, BRASS ............................HLNA0069 ..INNER HINGE PIN SET (DOMINUS) ............................. HLNA0076 ..SHOCK TOWER AND BODY MOUNT SET (DOMINUS, SC) ....................HLNA0084 ..SHOCK SET (DOMINUS, SC) ..............................
  • Page 38 HLNA0259 ..BUMPER SET, FRONT/REAR (INVICTUS 10MT) ........................HLNA0260 ..SUSPENSION MOUNT, FRONT/REAR (INVICTUS 10MT) ....................... HLNA0261 ..MOTOR MOUNT (INVICTUS 10MT) ............................. HLNA0262 ..GEAR AND SHAFT COVER SET (INVICTUS 10MT) ....................... HLNA0263 ..MAIN CHASSIS (INVICTUS 10MT) ............................HLNA0264 ..FRONT TOP PLATE (INVICTUS 10MT) ..........................
  • Page 39 HLNA0274 ..WHEELS, BLACK (INVICTUS 10MT) ............................ HLNA0275 ..WHEELS, SILVER (INVICTUS 10MT) ............................ HLNA0276 ..TIRES AND FOAM (INVICTUS 10MT) ..........................HLNA0288 ..UNIVERSAL DRIVE SHAFT SET, F/R (INVICTUS 10MT) ......................HLNA0295 ..SLIPPER CLUTCH (INVICTUS, MT) ............................HLNA0296 ..CENTER DIFFERENTIAL (INVICTUS, MT) ..........................
  • Page 40 1/10th SCALE 4x4 BRUSHLESS POWERED MONSTER TRUCK See your local hobby dealer for the latest in genuine replacement parts and accessories for your Helion RC product ©2012 Helion RC Technical specifications, features and design are subject to change. Distribution: Robitronic Electronic GmbH Brunhildengasse 1/1, 1150 Vienna, Austria +43 (0)1 982 09 20 www.robitronic.com...
