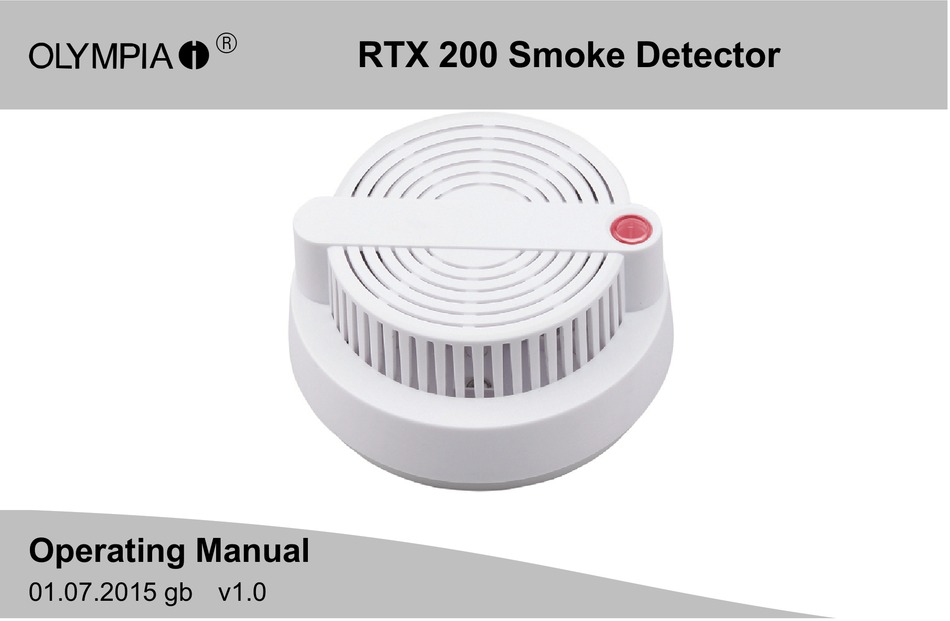

- Page 1 RTX 200 Smoke Detector Operating Manual 01.07.2015 gb v1.0...
-
Page 3: Table Of Contents
Contents Intended Use ......Notes on Use ......Safety Information . -
Page 5: Intended Use
Intended Use Intended Use The RTX smoke detector serves for the detection of smoke indoors and to issue a loud acoustic signal if it is detected. If triggered, the smoke detector sends a radio signal which can be received by alarm system in the Protect series or other smoke alarms. -
Page 6: Notes On Use
Notes on Use Please check the contents of the package carefully. If anything is missing or has been damaged during transport, DO NOT put the smoke detector into operation! Notes on Use • The smoke detectors can be deployed individually or in combination (in a master/slave opera tion). -
Page 7: Changing The Battery
Notes on Use Changing the Battery If you hear a signal tone issued at regular intervals, it indicates that the battery in a smoke detector is almost empty. Change the battery in the smoke detector concerned within 30 days. CAUTION! Property damage through using inappropriate batteries which are not approved by the manu... -
Page 8: Safety Information
Safety Information Safety Information The following safety information applies to the entire document. Read and observe all the safety information to protect yourself and the environment from any harm. WARNING! Risk of suffocation! Children can swallow small parts, packaging and protective foils. Keep the product and packaging out of reach of children! WARNING! Risks to health through batteries! - Page 9 Safety Information CAUTION! Risks to health and the environment from batteries! Improper handling of batteries can put your health and the environment at risk. Never open, damage or swallow batteries or allow them to pollute the environment. Batteries may contain toxic, ecologically hazardous heavy metals. CAUTION! Hearing damage through loud alarm signal! The alarm signal is loud and could cause hearing damage.
- Page 10 Safety Information ATTENTION! Property damage through environmental influences! Harmful environmental influences such as exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight, could damage the product. Prevent exposing the device to environmental influences such as smoke, dust, vibration, chemicals, moisture, heat or direct sunlight.
-
Page 11: Operating Elements
Operating Elements Operating Elements Base Code button Lock Smoke detector (housing) Test button with LED... -
Page 12: Registering Without Alarm System
Registering Without Alarm System Registering Without Alarm System Connecting the Smoke Detectors to Each Other Without an Alarm System The smoke detectors can be connected to each other directly via radio signals. In this case, one of the smoke detectors must be set-up as the master and the other smoke detectors registered as slaves on the master. - Page 13 Registering Without Alarm System Setting Up a Smoke Detector as Master The master should be set-up in a central position in the area to be monitored. The Code button must remain pressed until the registration process, including all of the slaves, has been completely fin ished.
-
Page 14: Registering With Alarm System
Registering With Alarm System Complete a function test following registration! Press the Test button (5). The function of the alarm signal, control lamp and, if necessary, connected devices are tested. Following registration, we recommend identifying all the smoke detectors as master and slave devices using the labels supplied. - Page 15 Registering With Alarm System Registering a Smoke Detector as Master The master should be installed centrally and in transmission range to the alarm system. 1. Select the Register menu option on the alarm system. 2. Connect the 9 V power pack enclosed in the scope of delivery to the battery clip on the smoke detector.
-
Page 16: In The Event Of An Alarm
In the Event of an Alarm In the Event of an Alarm Signalling (Master is Triggered) The illustration indicates the sequence of notification when the smoke detector set-up as the master is triggered. If you have linked the smoke detectors to each other without an alarm system, notification oc curs accordingly without an alarm system. - Page 17 In the Event of an Alarm Signalling (Slave is Triggered) The illustration indicates the sequence of notification when a smoke detector set-up as a slave is triggered. If you have linked the smoke detectors to each other without an alarm system, notification oc curs accordingly without an alarm system.
- Page 18 In the Event of an Alarm What to do If the smoke detectors raise an alarm Keep calm. Always assume that is a real emergency situation. Proceed as follows if a smell, smoke or fire has developed in the area being monitored: You and others at risk must move away from the danger area.
- Page 19 In the Event of an Alarm Proceed as follows if no smell, smoke or fire has developed in the area being monitored: Ensure that there are no suspicious smell, smoke or fire developments in the area being moni tored. Deactivate the alarm by ventilating the room in which the smoke detector has been triggered. Deactivate the alarm via the alarm system base unit (refer to the operating manual enclosed with the alarm system).
-
Page 20: Installation
Installation Installation Appropriate Installation Locations A smoke detector monitors a circular area with a diameter of about 4.5 meters. Therefore, install • a smoke detector in the hall area between living and sleeping areas (for escape route monitoring), • a smoke detector in each living room and bedroom, •... - Page 21 Installation Installation Dimensions and Clearances • Install each smoke detector as centrally as possible in the room being monitored. • Only install the smoke detector on jointless, smoke impervious ceilings. • Install the smoke detector directly underneath the 50 - 250 cm ceiling surface.
- Page 22 Installation Installation Steps Proceed as follows to install the smoke detector: WARNING! Risk of serious injuries through damaging cables or pipes! During installation, pay attention to the possibility of cables and pipes running in the walls and ceilings. We are not deemed liable for installation errors. If in doubt, contact a specialist! 1.
-
Page 23: Guarantee
Guarantee Guarantee Dear Customer, we are pleased that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing materi al to the point-of-sale. Information on Disposal The adjacent symbol indicates that electrical and electronic apparatus and batteries no longer required must be disposed of separate from domestic waste in accordance with legal directives. -
Page 24: Technical Data
EN 14604:2005 compliant with DIN 14676 CE Mark Olympia Business Systems Vertriebs GmbH, Zum Kraftwerk 1, 45527 Hattingen hereby declares that this device fulfils the requirements and complies with the regulations stipu lated in the Directive 1999/5/EC. The CE Mark on the device confirms conformity. The 0359 Declaration of Conformity for this product is available at www.olympia-vertrieb.de. -
Page 25: Regular Maintenance And Service
Regular Maintenance and Service Regular Maintenance and Service Accumulations of dust and cobwebs can impair the function of the smoke detector and cause malfunctions. It is possible that smoke can no longer be detected. 1. Clean the surface of the housing regularly with a soft, moistened, lint-free cloth. 2. - Page 29 Olympia Business Systems Vertriebs GmbH Zum Kraftwerk 1 45527 Hattingen...
